SMS9R4 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

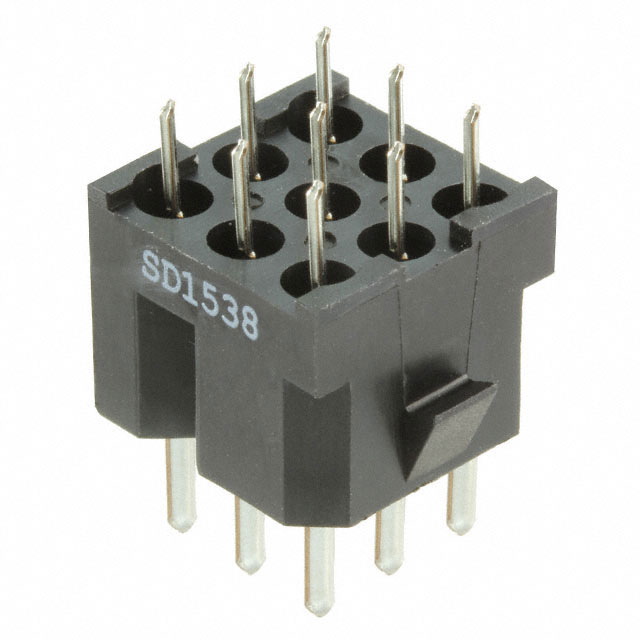

CONN HEADER VERT 9POS 5.08MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Insulation Height | Termination | Material Flammability Rating | Number of Positions Loaded | Insulation Material | Pitch - Mating | Mounting Type | Contact Finish - Post | Contact Length - Post | Ingress Protection | Row Spacing - Mating | Contact Type | Contact Finish - Mating | Operating Temperature (Max) | Operating Temperature (Min) | Style | Contact Shape | Connector Type | Fastening Type | Number of Rows | Overall Contact Length | Contact Length - Mating | Number of Positions | Contact Material | Shrouding | Insulation Color | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | 118.1 µin | 118.1 µin | 0.52 in | Solder | UL94 V-0 | All | Glass Filled Polyester | 0.2 in | Through Hole | Tin | 0.173 in | IP40 | 0.2 in | Male Pin | Tin | 125 °C | -55 °C | Board Cable/Wire | Circular | Header | Locking Ramp | 3 | 0.972 in | 0.28 in | 9 | Copper Alloy | Unshrouded | Black | 5 A |
