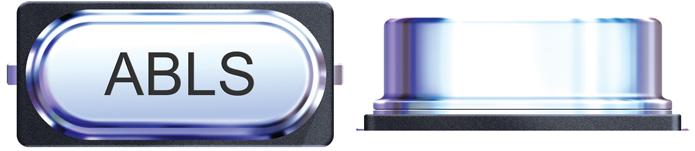

ABLS Series

Catalog

CRYSTALS 12.0 MHZ 2-PIN 30PPM -40+85C

Part	Operating Mode	Frequency Stability	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Package / Case	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Tolerance	Frequency	Load Capacitance	ESR (Equivalent Series Resistance)
Abracon LLC ABLS-12.000MHZ-D4-T	Fundamental	50 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	85 °C	-40 C	30 ppm	12 MHz	18 pF	50 Ohms
Abracon LLC ABLS-20.000MHZ-B-4-Y-T	Fundamental	30 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	70 °C	-20 ░C	30 ppm	20 MHz	18 pF	40 Ohms
Abracon LLC ABLS-24.000MHZ-20-D-4-H-T	Fundamental	35 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	85 °C	-40 C	30 ppm	24 MHz	20 pF	40 Ohms
Abracon LLC ABLS-25.000MHZ-8-D4YF-T	Fundamental	30 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	85 °C	-40 C	30 ppm	25 MHz	8 pF	40 Ohms
Abracon LLC ABLS-16.000MHZ-20-L-4-Q-T	Fundamental	100 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	125 °C	-55 C	30 ppm	16 MHz	20 pF	40 Ohms
Abracon LLC ABLS-13.94916MHZ-10-R20-D-T	Fundamental	50 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	85 °C	-40 C	50 ppm	13.94916 MHz	10 pF	20 Ohms

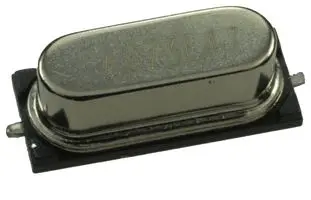

Abracon LLC ABLS-8.000MHZ-D-4-H-T	Fundamental	35 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	85 °C	-40 C	30 ppm	8 MHz	18 pF	80 Ohm
Abracon LLC ABLS-7.3728MHZ-K4T	Fundamental	50 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	125 °C	-40 C	30 ppm	7.3728 MHz	18 pF	100 Ohms
Abracon LLC ABLS-4.9152MHZ-D-4-Y-T	Fundamental	30 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	85 °C	-40 C	30 ppm	4.9152 MHz	18 pF	180 Ohms

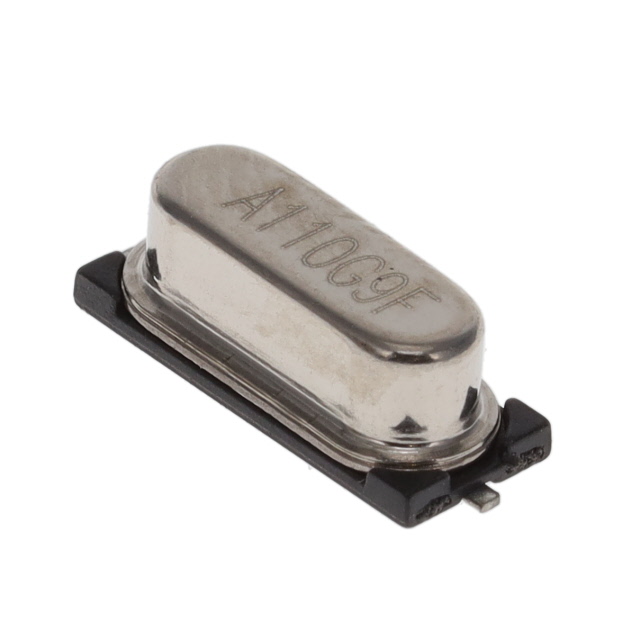

Abracon LLC ABLS-11.0592MHZ-20-B-4-Y-T	Fundamental	30 ppm	4.2 mm	0.165 "	HC-49/US	Surface Mount	MHz Crystal	0.185 in	0.449 in	HC-49/US	70 °C	-20 ░C	30 ppm	11.0592 MHz	20 pF	50 Ohms
