891819 Series

Catalog

HOOK-UP STRND 18AWG YELLOW 1000'

Part	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket Color	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Length [x]	Length [x]
ALPHA WIRE 891819 YL001	Copper Tinned	-40 C	105 ░C	0.41 mm	0.016 in	300 VDC	Yellow	304.8 m	1000 ft	30 AWG	19	18 AWG	Poly-Vinyl Chloride (PVC)	Hook-Up	0.082 in	2.08 mm	UL Style 1007/1569
ALPHA WIRE 891819 YL002	Copper Tinned	-40 C	105 ░C	0.41 mm	0.016 in	300 VDC	Yellow	152.4 m	500 ft	30 AWG	19	18 AWG	Poly-Vinyl Chloride (PVC)	Hook-Up	0.082 in	2.08 mm	UL Style 1007/1569
ALPHA WIRE 891819 BK001	Copper Tinned	-40 C	105 ░C	0.41 mm	0.016 in	300 VDC	Black	304.8 m	1000 ft	30 AWG	19	18 AWG	Poly-Vinyl Chloride (PVC)	Hook-Up	0.082 in	2.08 mm	UL Style 1007/1569
ALPHA WIRE 891819 WH005	Copper Tinned	-40 C	105 ░C	0.41 mm	0.016 in	300 VDC	White			30 AWG	19	18 AWG	Poly-Vinyl Chloride (PVC)	Hook-Up	0.082 in	2.08 mm	UL Style 1007/1569	100 ft	30.5 m
ALPHA WIRE 891819 SL002	Copper Tinned	-40 C	105 ░C	0.41 mm	0.016 in	300 VDC	Slate	152.4 m	500 ft	30 AWG	19	18 AWG	Poly-Vinyl Chloride (PVC)	Hook-Up	0.082 in	2.08 mm	UL Style 1007/1569

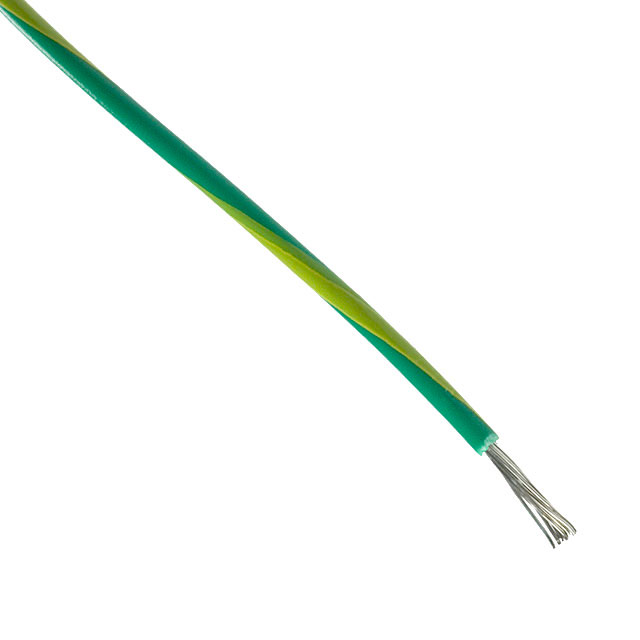

ALPHA WIRE 891819 GY001	Copper Tinned	-40 C	105 ░C	0.41 mm	0.016 in	300 VDC	Green Yellow Stripe	304.8 m	1000 ft	30 AWG	19	18 AWG	Poly-Vinyl Chloride (PVC)	Hook-Up	0.082 in	2.08 mm	UL Style 1007/1569
