MEZD72401 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

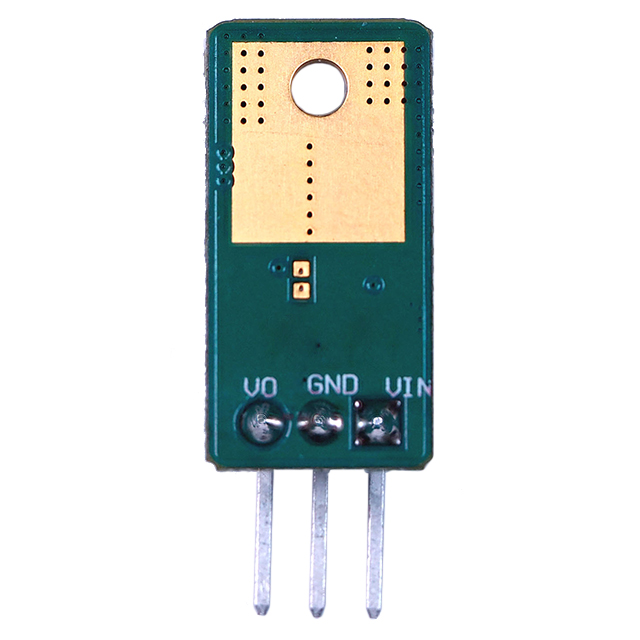

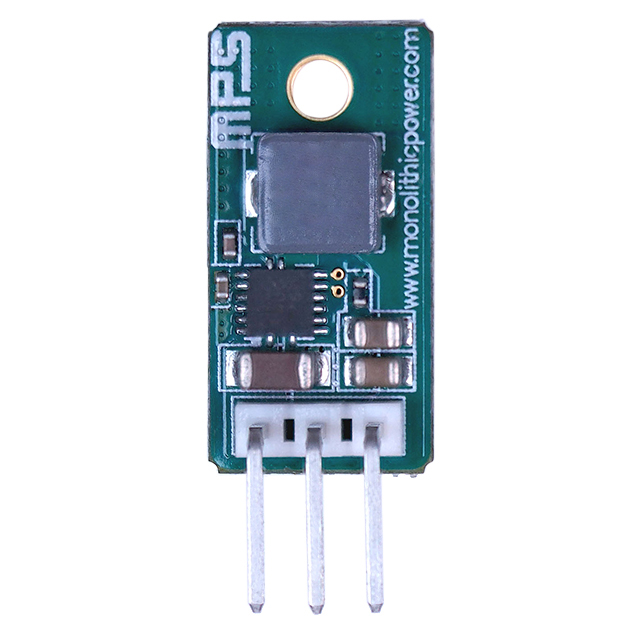

MODULE DC-DC 1-OUT 3.3V 1A THROUGH HOLE 3-PIN SIP
| Part | Number of Outputs | Features | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Current - Output (Max) [Max] | Voltage - Output 1 | Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Voltage - Input (Min) [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 1 | OCP OTP OVP SCP UVLO | 36 V | 85 °C | -40 C | ITE (Commercial) | 1 A | 3.3 V | Linear Regulator Replacement | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | Through Hole | 4.5 V | 3-SIP Module |
 Monolithic Power Systems Inc. | 1 | OCP OTP OVP SCP UVLO | 36 V | 85 °C | -40 C | ITE (Commercial) | 1 A | 1.8 V | Linear Regulator Replacement | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | Through Hole | 4.5 V | 3-SIP Module |
Monolithic Power Systems Inc. | 1 | OCP OTP OVP SCP UVLO | 36 V | 85 °C | -40 C | ITE (Commercial) | 1 A | 5 V | Linear Regulator Replacement | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | Through Hole | 6.5 V | 3-SIP Module |
Monolithic Power Systems Inc. | 1 | OCP OTP OVP SCP UVLO | 36 V | 85 °C | -40 C | ITE (Commercial) | 1 A | 1 V | Linear Regulator Replacement | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | Through Hole | 4.5 V | 3-SIP Module |
Monolithic Power Systems Inc. | 1 | OCP OTP OVP SCP UVLO | 36 V | 85 °C | -40 C | ITE (Commercial) | 1 A | 1.5 V | Linear Regulator Replacement | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | Through Hole | 4.5 V | 3-SIP Module |
Monolithic Power Systems Inc. | 1 | OCP OTP OVP SCP UVLO | 36 V | 85 °C | -40 C | ITE (Commercial) | 1 A | 1.2 V | Linear Regulator Replacement | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | Through Hole | 4.5 V | 3-SIP Module |
Monolithic Power Systems Inc. | 1 | OCP OTP OVP SCP UVLO | 36 V | 85 °C | -40 C | ITE (Commercial) | 1 A | 2.5 V | Linear Regulator Replacement | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | Through Hole | 4.5 V | 3-SIP Module |
