AYF337135 Series

Catalog

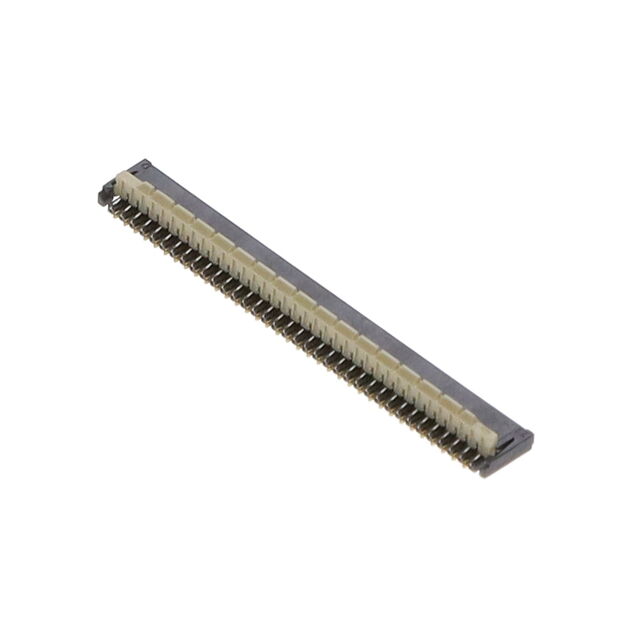

CONN FPC 71POS 0.3MM R/A

Part	Mating Cycles	Contact Finish Thickness	Current Rating (Amps)	Flat Flex Type	Connector/Contact Type	Housing Material	Height Above Board [z]	Height Above Board [z]	Locking Feature	Termination	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Contact Material	Pitch	Pitch	Cable End Type	FFC, FCB Thickness [custom]	Contact Finish	Voltage Rating	Actuator Material
Panasonic Electronic Components AYF337135A	20	Flash	200 mA	FPC	Contacts Top and Bottom	Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Backlock Flip Lock	Solder	UL94 V-0	-55 C	85 °C	71	Right Angle Surface Mount	Copper Alloy	0.012 in	0.3 mm	Tapered	0.2 mm	Gold	50 V	Liquid Crystal Polymer (LCP)
