CPE Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

BUZZER PIEZO 10V 30.00MM FLANGE

Part	Mounting Type	Port Location	Driver Circuitry	Technology	Sound Pressure Level (SPL)	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Voltage Range [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Mode	Termination	Current - Supply	Size / Dimension	Size / Dimension [diameter]	Voltage Range [Min]	Size / Dimension [diameter]	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

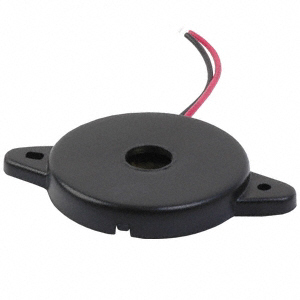

Same Sky (Formerly CUI Devices) CPE-827	Flange Panel Mount	Top	Externally Driven Transducer	Piezo	97 dB	10 V	85 °C	-30 ░C	Peak-Peak Signal	50 V	5.6 mm	0.22 in	Single Tone	Wire Leads	11 mA	30 mm	1.181 "
Same Sky (Formerly CUI Devices) CPE-3085	Through Hole	Top	Externally Driven Transducer	Piezo (with Feedback)	82 dB	12 VDC	60 °C	-20 ░C	DC	28 V			Single Tone	PC Pins	7 mA		1.161 in	3 V	29.5 mm	3.6 kHz	0.413 "	10.5 mm

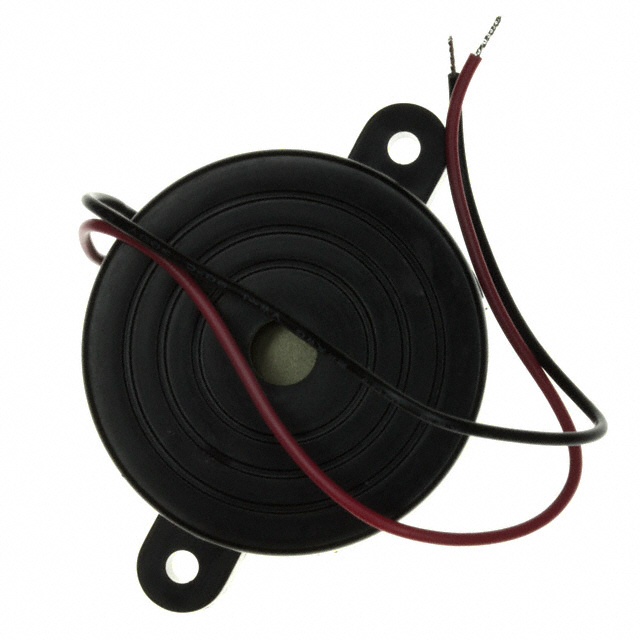

Same Sky (Formerly CUI Devices) CPE-460	Flange Panel Mount	Top	Indicator Internally Driven	Piezo	89 dB	12 VDC	60 °C	-20 ░C	DC	14 V			Single Tone	Wire Leads	70 mA		1.646 in	9 V	41.8 mm	300 Hz	0.886 in	22.5 mm

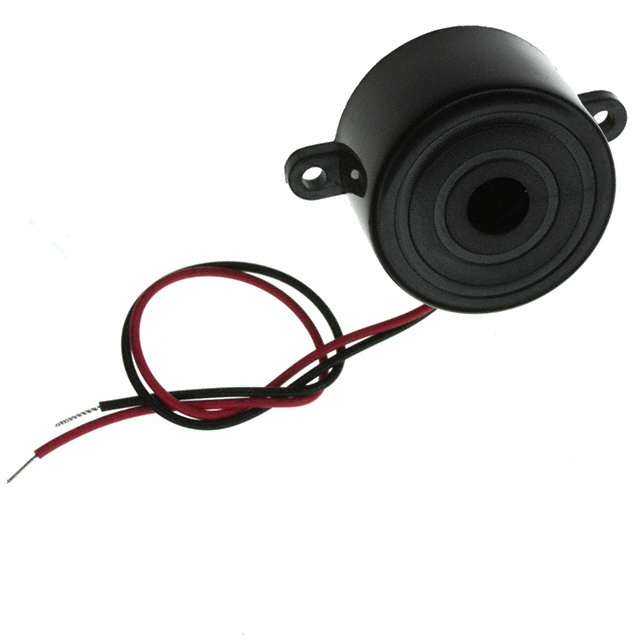

Same Sky (Formerly CUI Devices) CPE-200	Flange Panel Mount	Top	Indicator Internally Driven	Piezo	73 dB	12 VDC	85 °C	-30 ░C	DC	20 V	15 mm	0.591 "	Single Tone	Wire Leads	14 mA		0.937 in	3 V	23.8 mm	3.1 kHz

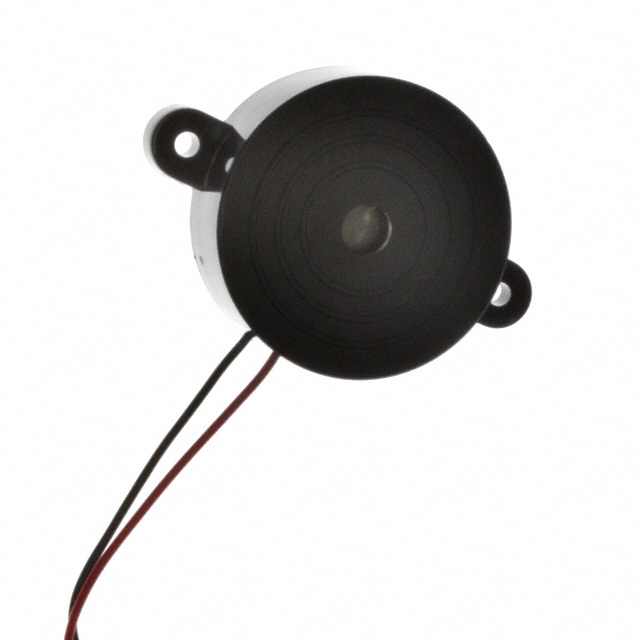

Same Sky (Formerly CUI Devices) CPE-350	Flange Panel Mount	Top	Indicator Internally Driven	Piezo	85 dB	12 VDC	85 °C	-30 ░C	DC	28 V	16.5 mm	0.65 in	Single Tone	Wire Leads	7 mA		1.646 in	3 V	41.8 mm	2.8 kHz
Same Sky (Formerly CUI Devices) CPE-220	Flange Panel Mount	Top	Indicator Internally Driven	Piezo	76 dB	12 VDC	85 °C	-30 ░C	DC	20 V			Single Tone	Wire Leads	10 mA		0.945 "	3 V	24 mm	2.7 kHz	0.346 "	8.8 mm
Same Sky (Formerly CUI Devices) CPE-163	Custom	Top	Externally Driven Transducer	Piezo	80 dB	10 V	85 °C	-30 ░C	Peak-Peak Signal	30 V	3 mm	0.118 "	Single Tone	Wire Leads	10 mA	13 mm	0.512 in
Same Sky (Formerly CUI Devices) CPE-121	Flange Panel Mount	Top	Externally Driven Transducer	Piezo (with Feedback)	83 dB	12 VDC	85 °C	-30 ░C	DC	18 VDC			Single Tone	Wire Leads	13 mA		0.945 "	3 V	24 mm	4.5 kHz	0.217 "	5.5 mm
Same Sky (Formerly CUI Devices) CPE-353A	Flange Panel Mount	Top	Indicator Internally Driven	Piezo	88 dB	12 VDC	85 °C	-30 ░C	DC	20 V	16.5 mm	0.65 in	Pulse Slow	Wire Leads	10 mA		1.646 in	3 V	41.8 mm	2.8 kHz
Same Sky (Formerly CUI Devices) CPE-220	Flange Panel Mount	Top	Indicator Internally Driven	Piezo	76 dB	12 VDC	85 °C	-30 ░C	DC	20 V			Single Tone	Wire Leads	10 mA		0.945 "	3 V	24 mm	2.7 kHz	0.346 "	8.8 mm
