SSI-LXR3612 Series

Catalog

LED PANEL INDICATOR YELLOW 2.1V

Part	Panel Cutout Shape	Lens Color	Lens Style	Lamp Color	Lens Size	Lens Size	Voltage	Current	Viewing Angle	Lens Transparency	Wavelength - Peak	Type	Millicandela Rating	Termination Style	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions
Lumex Opto/Components Inc. SSI-LXR3612SYD-150	Round	Yellow	Round with Domed Top	Yellow	3 mm	T-1	2.1 V	20 mA	60 °	Diffused	590 nm	LED	100 mcd
Lumex Opto/Components Inc. SSI-LXR3612GD-450	Round	Green	Round with Domed Top	Green	3 mm	T-1	2.2 V	20 mA	60 °	Diffused	565 nm	LED	30 mcd	Wire Leads - 18" (457.20mm)
Lumex Opto/Components Inc. SSI-LXR3612YD-150

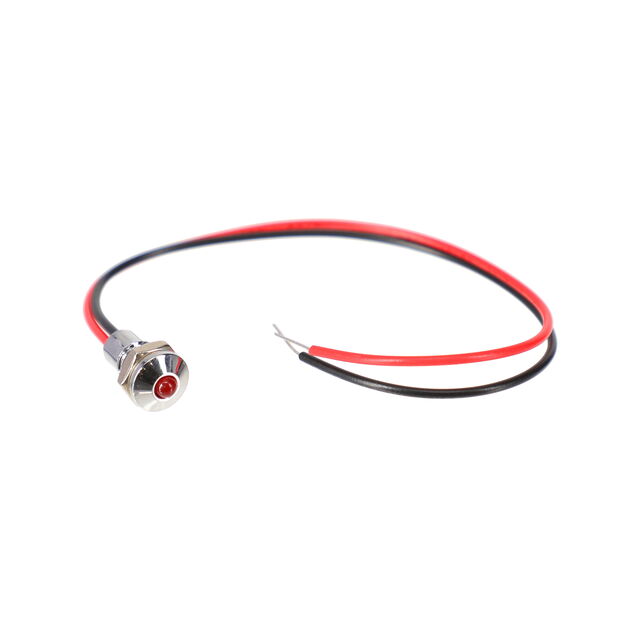

Lumex Opto/Components Inc. SSI-LXR3612ID-150	Round	Red	Round with Domed Top	Red	3 mm	T-1	2 V	30 mA	60 °	Diffused	635 nm	LED	30 mcd		DC

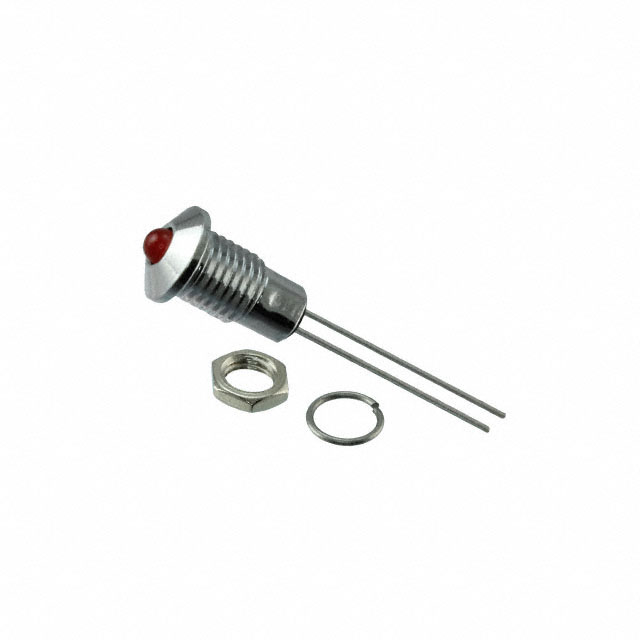

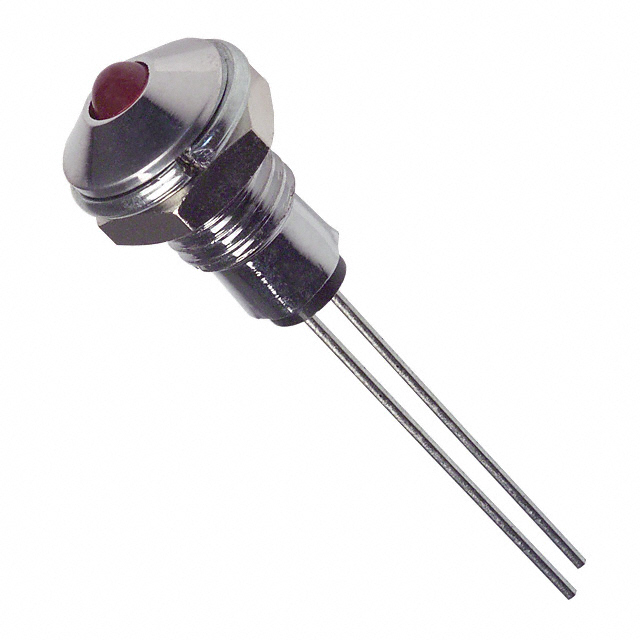

Lumex Opto/Components Inc. SSI-LXR3612ID	Round	Red	Round with Domed Top	Red	3 mm	T-1	2 V	30 mA	60 °	Diffused	635 nm	LED	30 mcd			6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612USBD150	Round	Blue	Round with Domed Top	Blue	3 mm	T-1	3.5 V	20 mA	60 °	Diffused	470 nm	LED	60 mcd

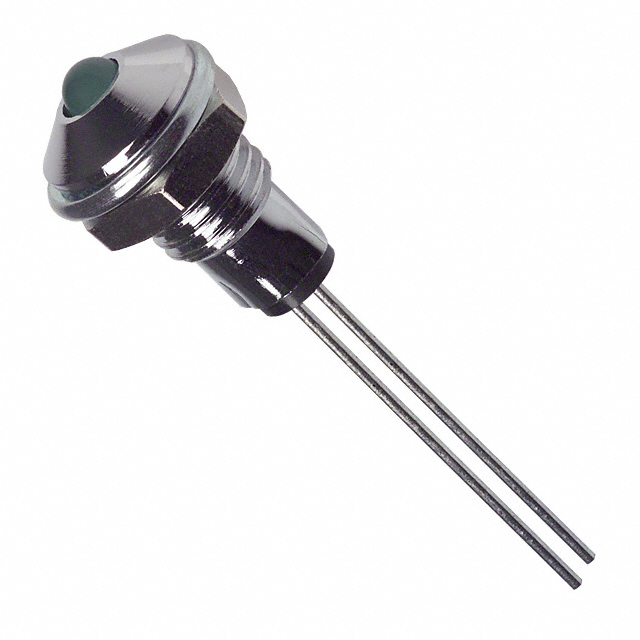

Lumex Opto/Components Inc. SSI-LXR3612GD	Round	Green	Round with Domed Top	Green	3 mm	T-1	2.2 V	25 mA	60 °	Diffused	565 nm	LED	30 mcd			6.1 mm	0.24 in

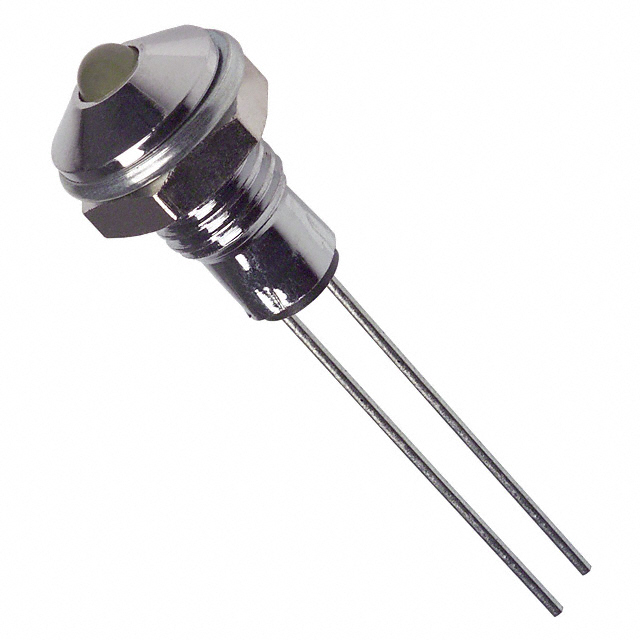

Lumex Opto/Components Inc. SSI-LXR3612YD	Round	Yellow	Round with Domed Top	Yellow	3 mm	T-1	2.1 V	30 mA	60 °	Diffused	585 nm	LED	30 mcd			6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612SID	Round	Red	Round with Domed Top	Red	3 mm	T-1	2.1 V	30 mA	60 °	Diffused	636 nm	LED	100 mcd			6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612GD-150	Round	Green	Round with Domed Top	Green	3 mm	T-1	2.2 V	25 mA	60 °	Diffused	565 nm	LED	30 mcd	Wire Leads - 6.000" (152.40mm)
