BCD 200 Series

Catalog

TERM COMPART LID 218X54X20MM

Part	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Material	For Use With/Related Products	Type	Size / Dimension [z]	Size / Dimension [y]	Features	Design	Material Flammability Rating	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Thickness	Thickness	Container Type
Bopla Enclosures BCD 200 KRD-7035	Gray	8.583 in	218 mm	2.126 in	20 mm	0.787 "	54 mm	Plastic Polycarbonate	BOCARD 200 System	Cover Lid
Bopla Enclosures BCD 200 OT-F-7035	Gray	9.016 "	229 mm	7.992 "		0.748 in		Plastic Polycarbonate	BOCARD 200 System	Cover Lid	19 mm	203 mm
Bopla Enclosures BCD 200 OT-G-7035	Clear Gray Frame	9.016 "	229 mm	8.031 "		1.407 "		Plastic Polycarbonate	BOCARD 200 System	Cover Lid	36 mm	204 mm	Hinged
Bopla Enclosures BCD 200 OT-F-7024	Gray	9.016 "	229 mm	7.992 "		0.748 in		Plastic Polycarbonate	BOCARD 200 System	Cover Lid	19 mm	203 mm
Bopla Enclosures BCD 200 OT-G-7024	Clear Gray Frame	9.016 "	229 mm	8.031 "		1.407 "		Plastic Polycarbonate	BOCARD 200 System	Cover Lid	36 mm	204 mm	Hinged
Bopla Enclosures BCD 200 FO-7035	Gray	9.016 "	229 mm	7.992 "		0.748 in		Plastic Polycarbonate	BOCARD 200 System	Frame	19 mm	203 mm
Bopla Enclosures BCD 200 FO-K-7024	Gray	9.016 "	229 mm	7.992 "		0.748 in		Plastic Polycarbonate	BOCARD 200 System	Frame	19 mm	203 mm
Bopla Enclosures BCD 200 FO-7024	Gray	9.016 "	229 mm	7.992 "		0.748 in		Plastic Polycarbonate	BOCARD 200 System	Frame	19 mm	203 mm
Bopla Enclosures BCD 200 KRD-7024	Gray	8.583 in	218 mm	2.126 in	20 mm	0.787 "	54 mm	Plastic Polycarbonate	BOCARD 200 System	Cover Lid

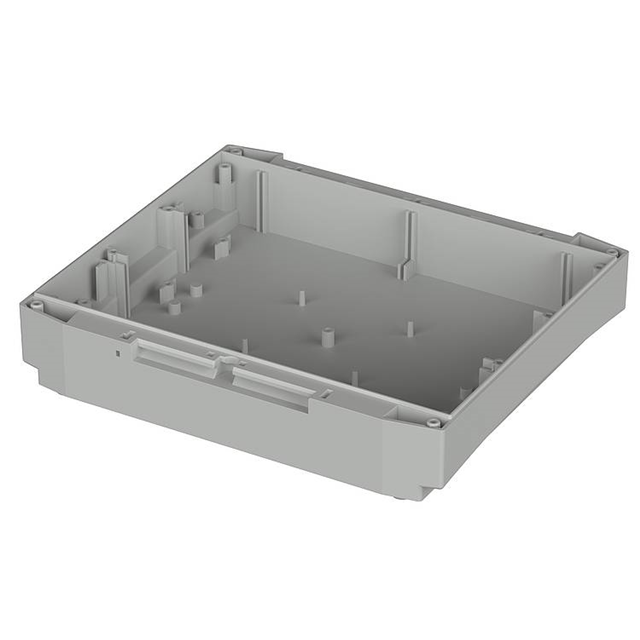

Bopla Enclosures BCD 200 UT-0.5-7035	Gray	8.858 "	225 mm	7.795 in				ABS Plastic				198 mm	Card Guides PCB Supports	Open End(s)	UL94 HB	40 mm	1.575 in	69 in²	445 cm²	0.118 in	3 mm	Box
