6810 Series

Catalog

CONN FFC BOTTOM 35POS 0.5MM SMD

Part	Current Rating (Amps)	Contact Material	Pitch	Pitch	Mounting Type	FFC, FCB Thickness	Flat Flex Type	Cable End Type	Contact Finish	Voltage Rating	Connector/Contact Type	Number of Positions	Housing Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board

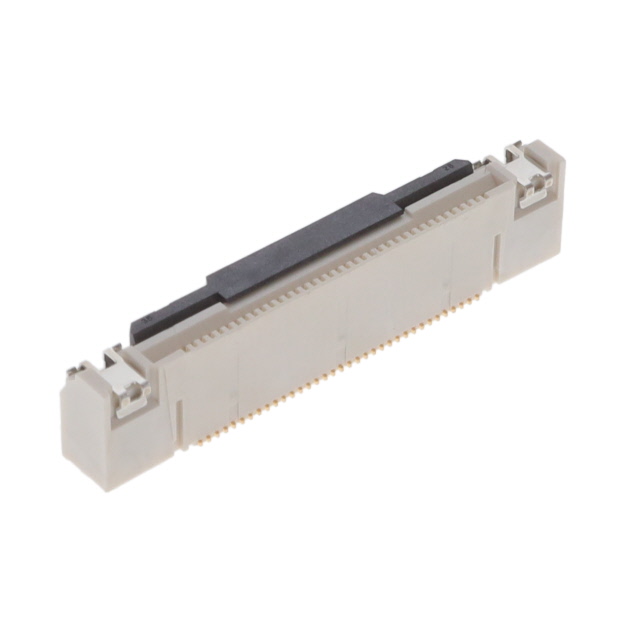

KYOCERA AVX 046810635022846+T	0.5 A	Copper Alloy	0.02 "	0.5 mm	Surface Mount	0.3 mm	FFC FPC	Notched Tapered	Gold	50 V	Contacts Bottom	35	Plastic	Solder Retention	125 °C	-40 C	Solder	0.236 in	6 mm

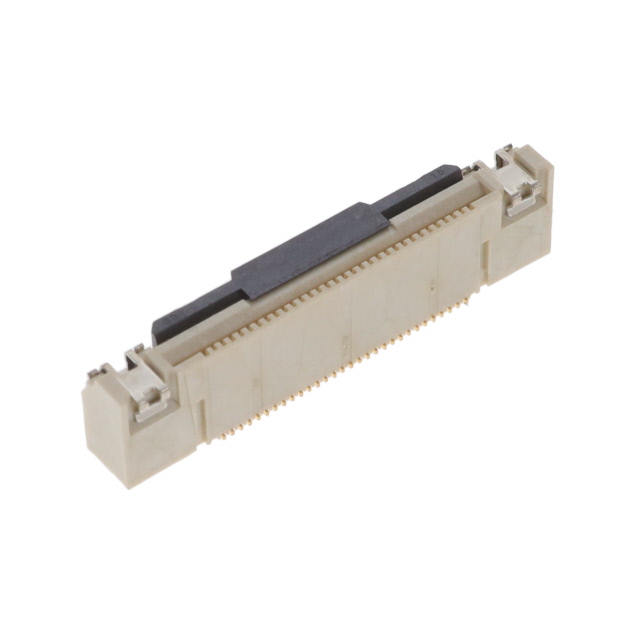

KYOCERA AVX 046810630002846+	0.5 A	Copper Alloy	0.02 "	0.5 mm	Surface Mount	0.3 mm	FFC FPC	Notched	Gold	50 V	Contacts Vertical - 1 Sided	30	Thermoplastic	Solder Retention	125 °C	-40 C	Solder	0.236 in	6 mm

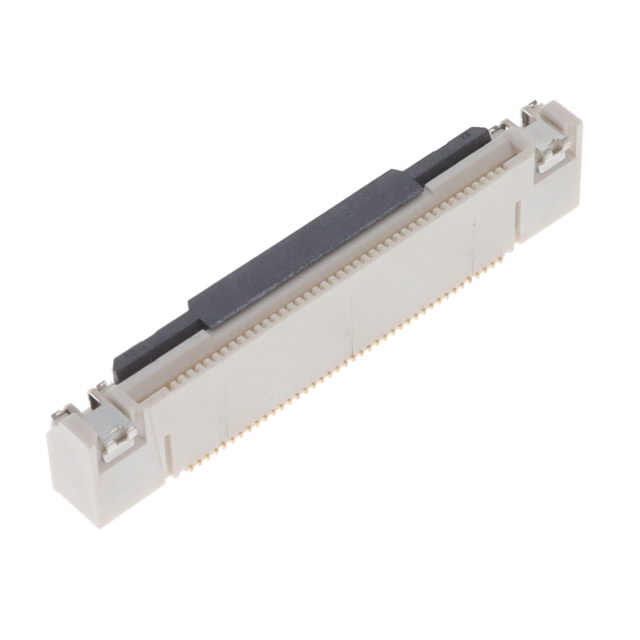

KYOCERA AVX 046810640022846+T	0.5 A	Copper Alloy	0.02 "	0.5 mm	Surface Mount	0.3 mm	FFC FPC	Notched	Gold	50 V	Contacts Vertical - 1 Sided	40	Thermoplastic	Solder Retention	125 °C	-40 C	Solder	0.236 in	6 mm

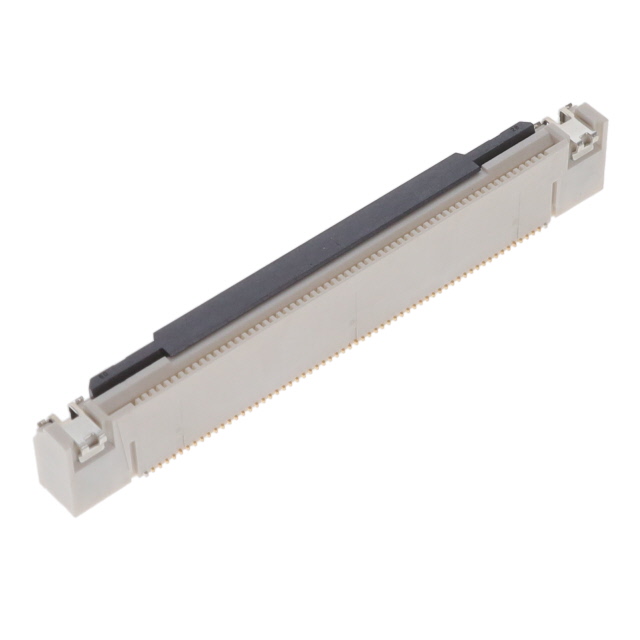

KYOCERA AVX 046810660000846+	0.5 A	Copper Alloy	0.02 "	0.5 mm	Surface Mount	0.5 mm	FFC FPC	Notched Tapered	Gold	50 V	Contacts Bottom	60	Plastic	Solder Retention	125 °C	-40 C	Solder	0.236 in	6 mm
KYOCERA AVX 046810640002846+	0.5 A	Copper Alloy	0.02 "	0.5 mm	Surface Mount	0.3 mm	FFC FPC	Notched	Gold	50 V	Contacts Vertical - 1 Sided	40	Thermoplastic	Solder Retention	125 °C	-40 C	Solder	0.236 in	6 mm
KYOCERA AVX 046810660023846+T	0.5 A	Copper Alloy	0.02 "	0.5 mm	Right Angle Surface Mount	0.3 mm	FFC FPC	Notched Tapered	Gold	50 V	Contacts Bottom	60	Plastic	Solder Retention	125 °C	-40 C	Solder			4.04 mm	0.159 in

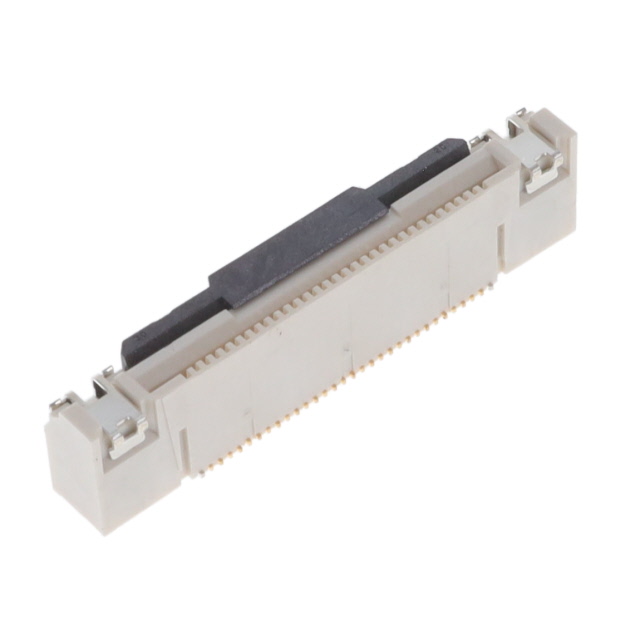

KYOCERA AVX 046810630020846+T	0.5 A	Copper Alloy	0.02 "	0.5 mm	Surface Mount	0.5 mm	FFC FPC	Notched	Gold	50 V	Contacts Vertical - 1 Sided	30	Thermoplastic	Solder Retention	125 °C	-40 C	Solder	0.236 in	6 mm

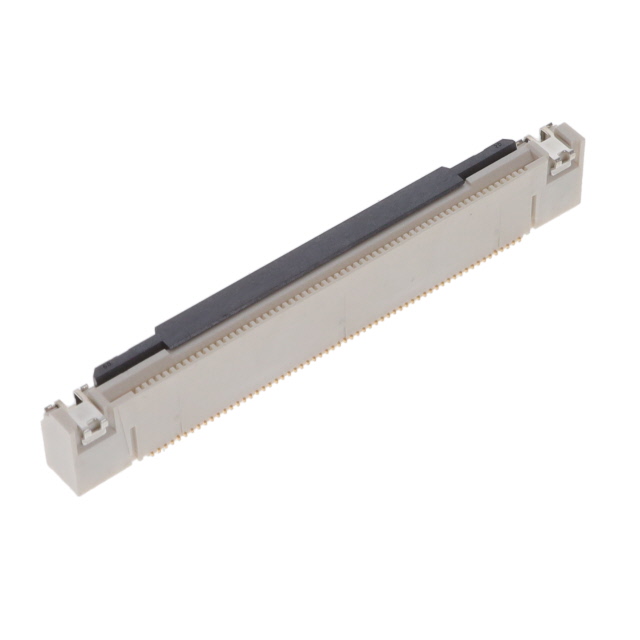

KYOCERA AVX 046810660002846+	0.5 A	Copper Alloy	0.02 "	0.5 mm	Surface Mount	0.3 mm	FFC FPC	Notched Tapered	Gold	50 V	Contacts Bottom	60	Plastic	Solder Retention	125 °C	-40 C	Solder	0.236 in	6 mm

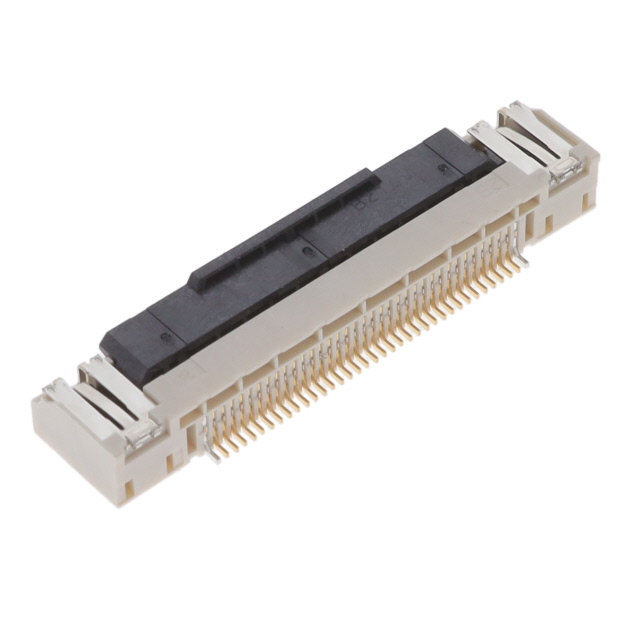

KYOCERA AVX 046810635021846+T	0.5 A	Copper Alloy	0.02 "	0.5 mm	Right Angle Surface Mount	0.5 mm	FFC FPC	Notched Tapered	Gold	50 V	Contacts Bottom	35	Plastic	Solder Retention	125 °C	-40 C	Solder			4.04 mm	0.159 in
