QS Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT HI-Q 0402 2.4PF 0.25

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Temperature Coefficient	Features	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Mounting Type	Voltage - Rated	Capacitance	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case

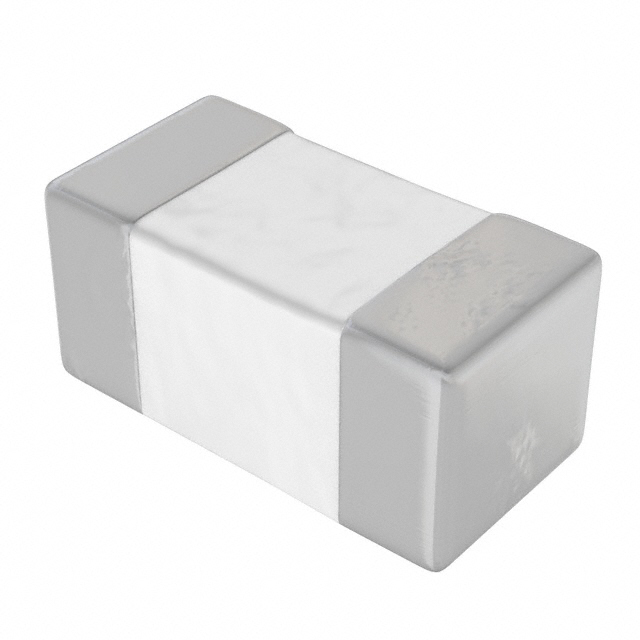

Johanson Technology Inc. QSCF201Q2R4C1GV001T	-55 C	125 °C 150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR	0.024 in	0.61 mm	0.25 pF	MLCC Surface Mount	200 VDC	2.4 pF	0402 (1005 Metric)	0.04 "	0.02 in	0.51 mm	1.02 mm
Johanson Technology Inc. QSCF500Q3R3B1GV001T	-55 C	125 °C 150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR	0.024 in	0.61 mm	0.1 pF	MLCC Surface Mount	50 VDC	3.3 pF	0402 (1005 Metric)	0.04 "	0.02 in	0.51 mm	1.02 mm

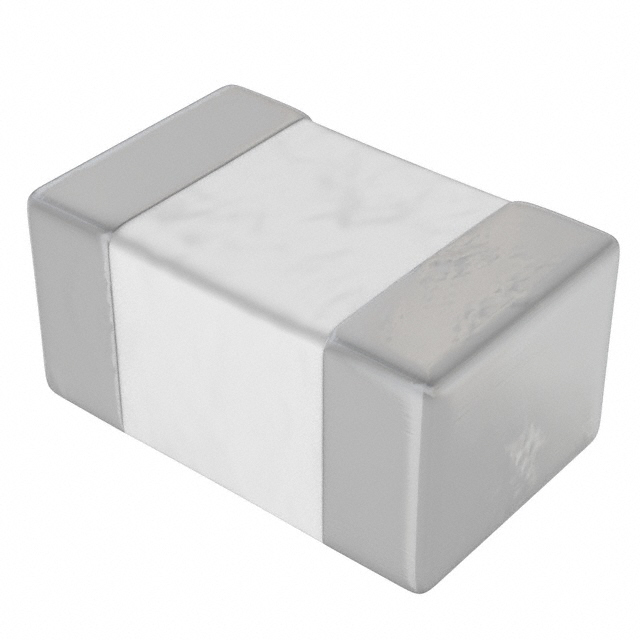

Johanson Technology Inc. QSCT251Q1R5D1GV001E	-55 C	150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR			0.5 pF	MLCC Surface Mount	250 V	1.5 pF	0805	0.08 "		1.27 mm	2.03 mm
Johanson Technology Inc. QSCF500Q4R3B1GV001T	-55 C	125 °C 150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR	0.024 in	0.61 mm	0.1 pF	MLCC Surface Mount	50 VDC	4.3 pF	0402 (1005 Metric)	0.04 "	0.02 in	0.51 mm	1.02 mm
Johanson Technology Inc. QSCT251Q221K1GV001E	-55 C	150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR			10 %	MLCC Surface Mount	250 V	220 pF	0805	0.08 "		1.27 mm	2.03 mm
Johanson Technology Inc. QSCT251Q180F1GV001E	-55 C	150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR			1 %	MLCC Surface Mount	250 V	18 pF	0805	0.08 "		1.27 mm	2.03 mm
Johanson Technology Inc. QSCT251Q0R3B1GV001E	-55 C	150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR			0.1 pF	MLCC Surface Mount	250 V	0.3 pF	0805	0.08 "		1.27 mm	2.03 mm
Johanson Technology Inc. QSCP251Q100J1GV001T	-55 C	150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR	0.035 "	0.89 mm	5 %	MLCC Surface Mount	250 V	10 pF	0603	0.062 in	0.032 in	0.81 mm	1.57 mm	1608 Metric
Johanson Technology Inc. QSCF201Q0R8C1GV001T	-55 C	150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR	0.024 in	0.61 mm	0.25 pF	MLCC Surface Mount	200 VDC	0.8 pF	0402 (1005 Metric)	0.04 "	0.02 in	0.51 mm	1.02 mm
Johanson Technology Inc. QSCT251Q9R1C1GV001E	-55 C	125 °C 150 °C	High Frequency Microwave RF	C0G NP0	High Q Low Loss Ultra Low ESR			0.25 pF	MLCC Surface Mount	250 V	9.1 pF	0805	0.08 "		1.27 mm	2.03 mm
