842-056 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 56POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Number of Rows [custom]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Color	Number of Positions/Bay/Row	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Number of Positions	Gender	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Termination	Features	Termination Rows	Number of Rows
EDAC Inc. 842-056-541-204	Diallyl Phthalate (DAP)	2	Through Hole	2	Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Dual	Green	28	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Wire Wrap

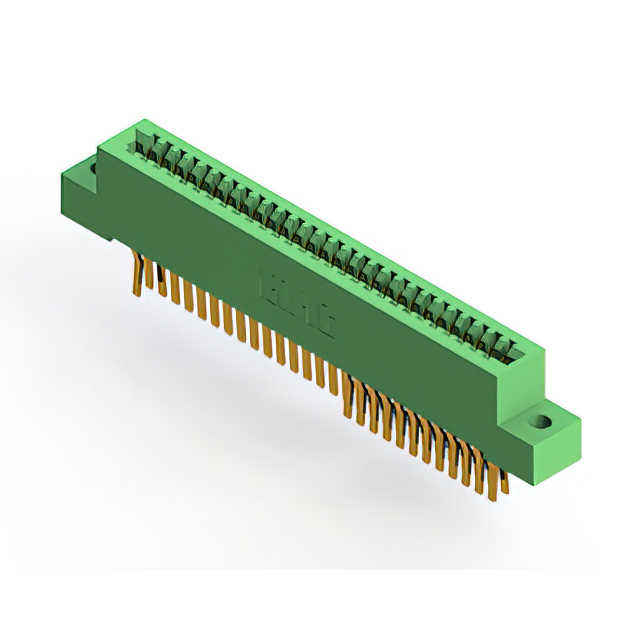

EDAC Inc. 842-056-560-202	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	2	Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Dual	Green	28	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Solder	Card Extender
EDAC Inc. 842-056-555-212	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	2	Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Dual	Green	28	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Solder	Card Extender
EDAC Inc. 842-056-540-101	Diallyl Phthalate (DAP)		Through Hole		Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Single	Green	56	Non Specified - Single Edge				Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Wire Wrap		1	1

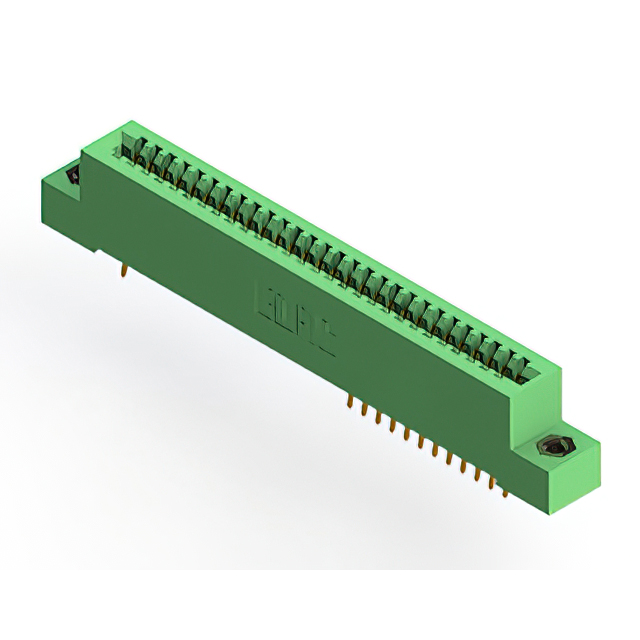

EDAC Inc. 842-056-556-208	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	2	Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Dual	Green	28	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening			Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Solder	Card Extender

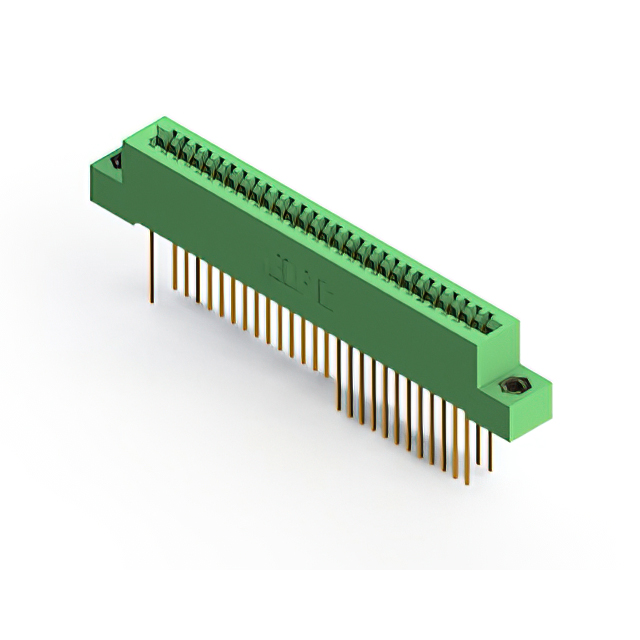

EDAC Inc. 842-056-541-207	Diallyl Phthalate (DAP)	2	Through Hole	2	Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Dual	Green	28	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening			Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Wire Wrap

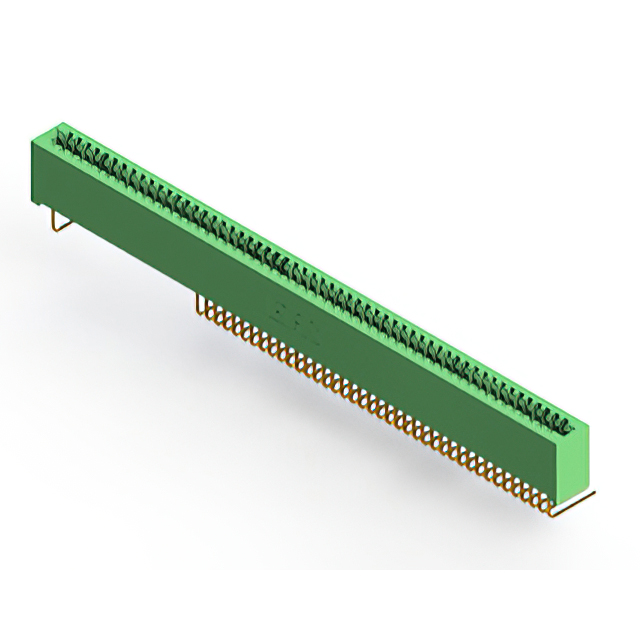

EDAC Inc. 842-056-558-101	Diallyl Phthalate (DAP)		Right Angle Through Hole		Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Single	Green	56	Non Specified - Single Edge				Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Solder		1	1

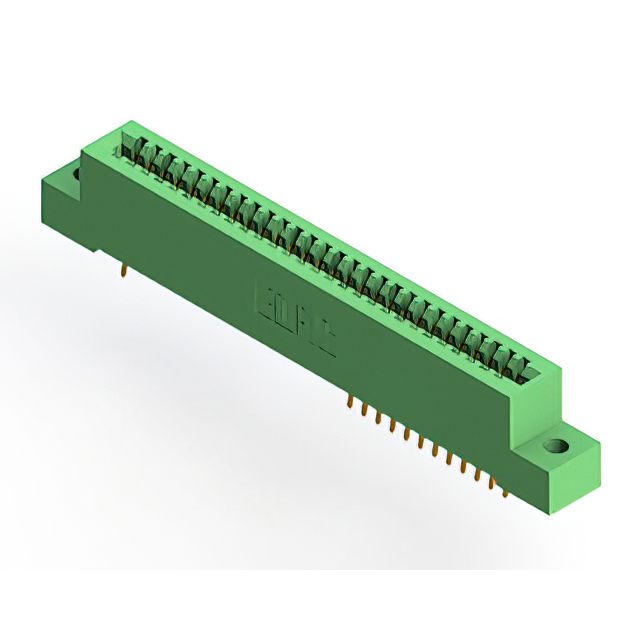

EDAC Inc. 842-056-556-202	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	2	Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Dual	Green	28	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Solder	Card Extender
EDAC Inc. 842-056-559-102	Diallyl Phthalate (DAP)		Right Angle Through Hole		Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Single	Green	56	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Solder		1	1
EDAC Inc. 842-056-540-102	Diallyl Phthalate (DAP)		Through Hole		Copper Alloy	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	Single	Green	56	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	56	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Wire Wrap		1	1
