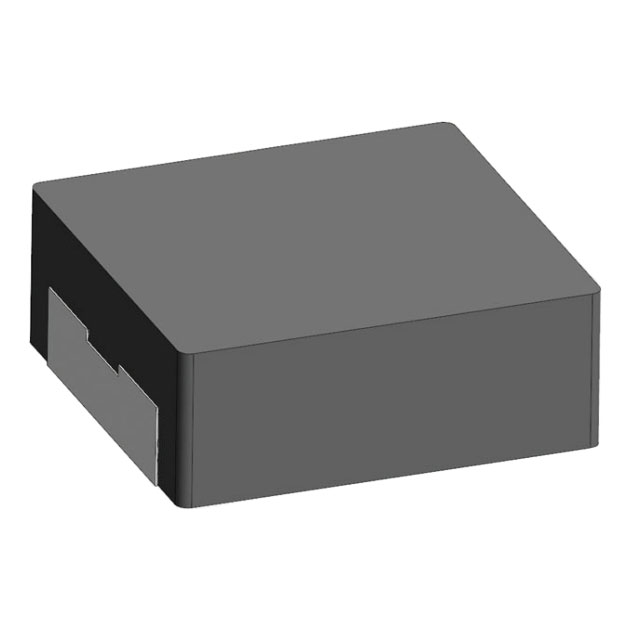

AMPLA1707S Series
Manufacturer: Abracon LLC
Beta
⌘K
INDUCTOR POWER MOLDED/SHIELDED WIREWOUND 0.47UH 20% 100KHZ CARBONYL POWDER 62A 0.00103OHM DCR T/R
| Part | Type | Current - Saturation (Isat) | Package / Case | DC Resistance (DCR) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Material - Core | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Mounting Type | Inductance | Inductance Frequency - Test | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | Molded | 123 A | Nonstandard | 1.03 mOhm | 0.276 in | 7 mm | 62 A | 0.693 in | 16.9 mm | 17.6 mm | 0.665 in | Carbonyl Powder | 20 % | -55 C | 125 °C | Shielded | Surface Mount | 470 nH | 100 kHz | |
 Abracon LLC | Molded | Nonstandard | 118 mOhm | 0.276 in | 7 mm | 5.3 A | 0.693 in | 16.9 mm | 17.6 mm | 0.665 in | Carbonyl Powder | 20 % | -55 C | 125 °C | Shielded | Surface Mount | 100 µH | 100 kHz | ||
Abracon LLC | Molded | 65 A | Nonstandard | 0.276 in | 7 mm | 47 A | 0.693 in | 16.9 mm | 17.6 mm | 0.665 in | Carbonyl Powder | 20 % | -55 C | 125 °C | Shielded | Surface Mount | 1.5 µH | 100 kHz | 2.5 mOhm |
