3759 Series

Catalog

CBL RIBN 16COND 0.05 BLACK

Part	Insulation Resistance	First Conductor Mark	Conductor Material	Length	Length	Jacket (Insulation) Material	Ratings	Pitch	Pitch	Ribbon Width [custom]	Ribbon Width [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Voltage	Shielding	Features	Wire Gauge	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Spool Size [x]	Spool Size [x]	Length
3M Electronic Specialty 3759/16SO 300	10 GOhm	Red	Copper Tinned	91440 mm	3600 in	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	19.05 mm	0.75 in	36 AWG	7 Strands	16	Black	300 VDC	Unshielded	Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
3M Electronic Specialty 3759/09SOSF	10 GOhm	Red	Copper Tinned			Poly-Vinyl Chloride (PVC)		0.05 in	1.27 mm	10.16 mm	0.4 in	36 AWG	7 Strands	9	Black	300 VDC	Unshielded	Splice Free	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
3M Electronic Specialty 3759/34 300	10 GOhm	Red	Copper Tinned	91440 mm	3600 in	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	41.91 mm	1.65 in	36 AWG	7 Strands	34	Black	300 VDC	Unshielded	Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
3M Electronic Specialty 3759/15SF	10 GOhm	Red	Copper Tinned	91440 mm	3600 in	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	17.78 mm	0.7 in	36 AWG	7 Strands	15	Black	300 VDC	Unshielded	Splice Free Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
3M Electronic Specialty 3759/60SO	10 GOhm	Red	Copper Tinned	91440 mm	3600 in	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	74.93 mm	2.95 in	36 AWG	7 Strands	60	Black	300 VDC	Unshielded	Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
3M Electronic Specialty 3759/26 300SF	10 GOhm	Red	Copper Tinned	91440 mm	3600 in	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	31.75 mm	1.25 in	36 AWG	7 Strands	26	Black	300 VDC	Unshielded	Splice Free Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
3M Electronic Specialty 3759/36 100SF	10 GOhm	Red	Copper Tinned	3.05 m 30.48 m	10 ft 100 '	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	44.45 mm	1.75 in	36 AWG	7 Strands	36	Black	300 VDC	Unshielded	Splice Free Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
3M Electronic Specialty 3759/14 300	10 GOhm	Red	Copper Tinned	91440 mm	3600 in	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	16.51 mm	0.65 in	36 AWG	7 Strands	14	Black	300 VDC	Unshielded	Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C	300 ft	91.44 m	Enter Number of Feet in Order Quantity

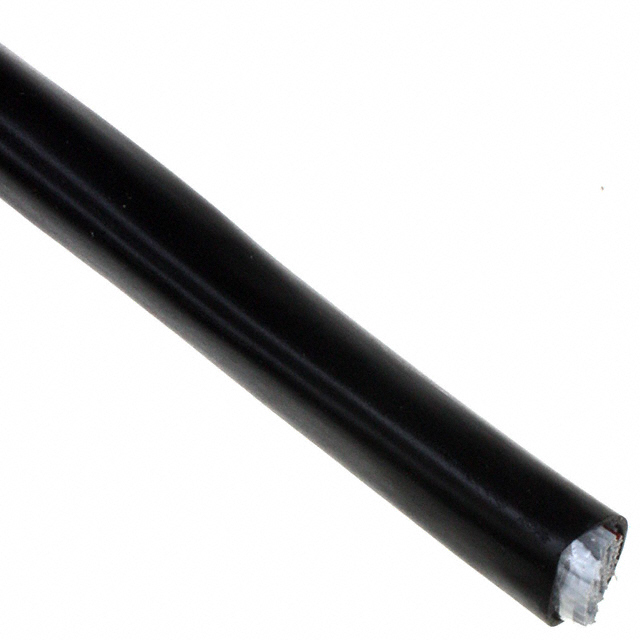

3M Electronic Specialty 3759/37 300SF	10 GOhm	Red	Copper Tinned	91440 mm	3600 in	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	45.72 mm	1.8 in	36 AWG	7 Strands	37	Black	300 VDC	Unshielded	Splice Free Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
3M Electronic Specialty 3759/15SO	10 GOhm	Red	Copper Tinned	30.48 m	100 '	Poly-Vinyl Chloride (PVC)	UL Style 20267	0.05 in	1.27 mm	17.78 mm	0.7 in	36 AWG	7 Strands	15	Black	300 VDC	Unshielded	Zippable	28 AWG	Flat Cable Round Jacket	80 °C	-20 ░C
