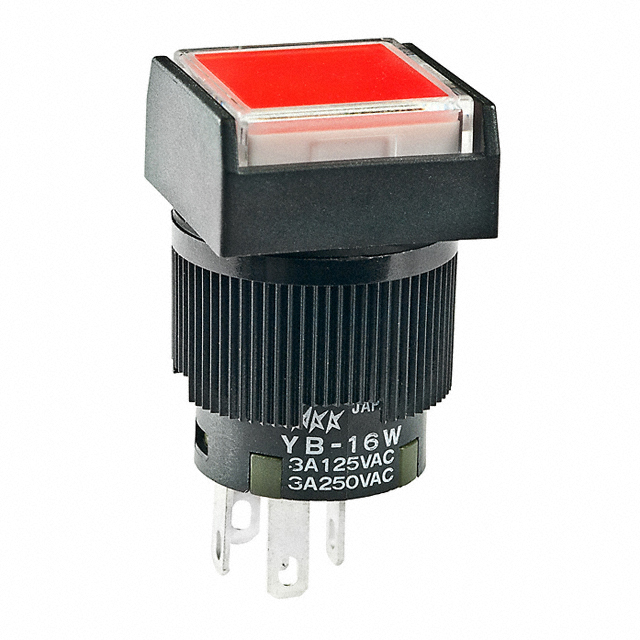

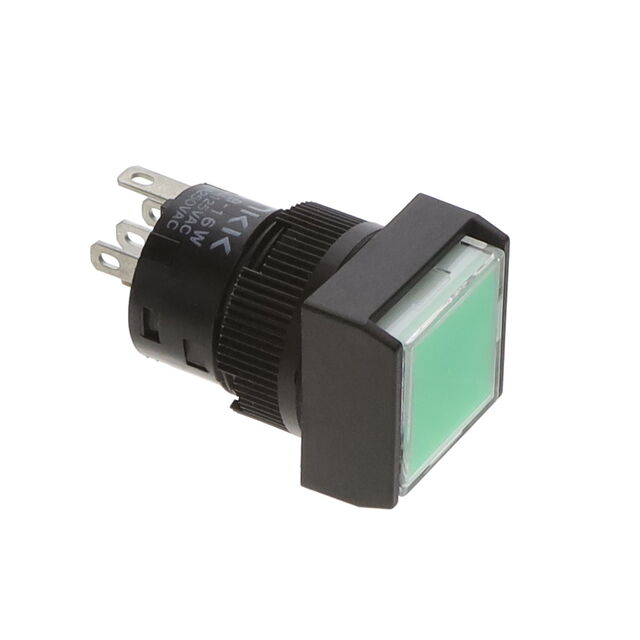

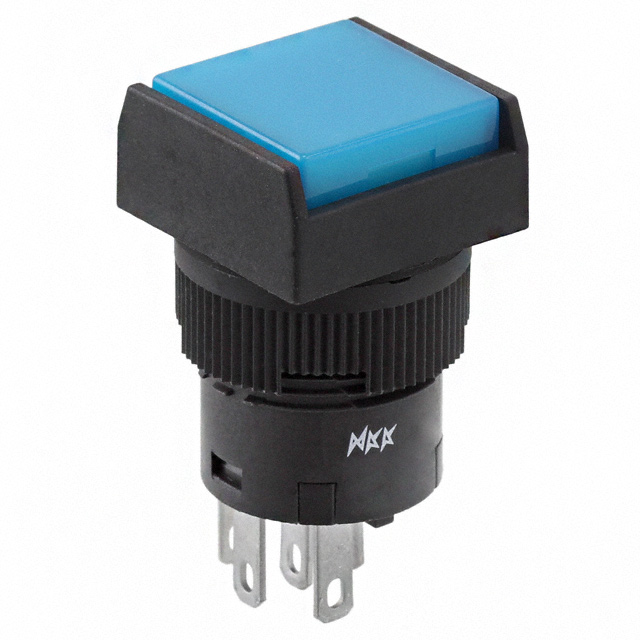

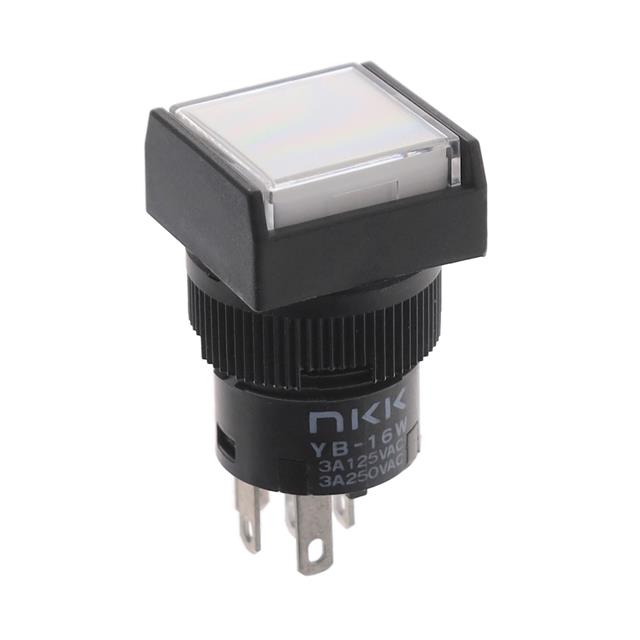

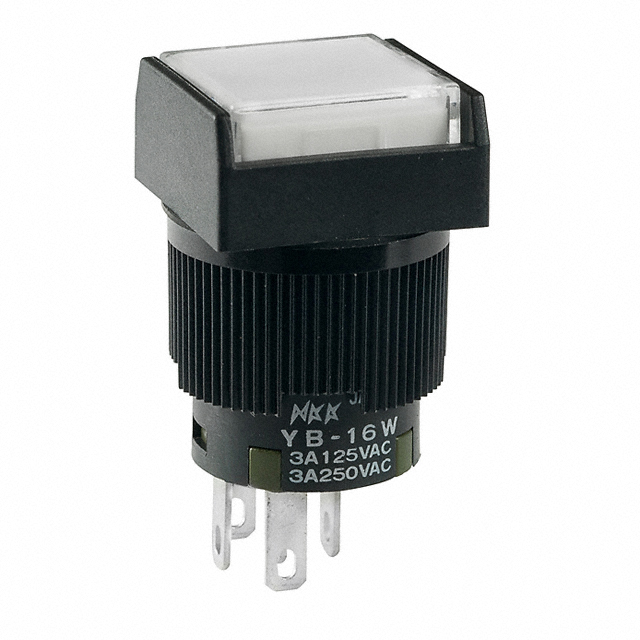

YB Series
Manufacturer: NKK Switches
Beta
⌘K
PUSHBUTTON SWITCHES SPDT PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Color - Actuator/Cap | Features | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Type | Illumination Type, Color | Mounting Type | Voltage Rating - DC | Illumination Voltage (Nominal) | Circuit | Termination Style | Actuator Marking | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | Stainless Steel | Button Round | 50 °C | -25 °C | 3 A | 16 mm | 125 V | Illuminated Standard | Green/Red LED | Panel Mount Snap-In | 30 V | 24 V | SPDT | Solder Quick Connect - 0.110" (2.8mm) | No Marking | On-Mom |
NKK Switches | 100000 Cycles | 200000 Cycles | Clear | Tactile Feedback | Button Square | 50 °C | -25 °C | 3 A | 16 mm | 125 V | Illuminated Standard | Amber LED | Panel Mount Front | 30 V | 5 VDC | SPDT | Solder Quick Connect - 0.110" (2.8mm) | No Marking | On-On |
 NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | Voltage Reduction Lighting | Button Square | 50 °C | -25 °C | 3 A | 16 mm | 125 V | Illuminated Standard | Amber LED | Panel Mount Front | 30 V | 5 VDC | DPDT | Solder Quick Connect - 0.110" (2.8mm) | No Marking | On-Mom |
 NKK Switches | 100000 Cycles | 200000 Cycles | Clear | Button Round | 50 °C | -25 °C | 0.4 VA | 16 mm | 28 V | Illuminated Standard | Green/Red LED | Panel Mount Front | 28 V | 2 VDC | SPDT | Solder Quick Connect - 0.110" (2.8mm) | On-On | ||
NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | Tactile Feedback | Button Rectangular | 50 °C | -25 °C | 3 A | 16 mm | 125 V | Illuminated Standard | Amber LED | Panel Mount Snap-In | 30 V | 12 VDC | SPDT | Solder Quick Connect - 0.110" (2.8mm) | No Marking | On-Mom |
NKK Switches | Clear | Tactile Feedback | Button Square | 50 °C | -25 °C | 0.4 VA | 16 mm | 28 V | Illuminated Standard | Green/Red LED | Panel Mount Snap-In | 28 V | 24 V | SPDT | Solder Quick Connect - 0.110" (2.8mm) | No Marking | On-On | ||
NKK Switches | Clear | Voltage Reduction Lighting | Button Rectangular | 50 °C | -25 °C | 3 A | 16 mm | 125 V | Illuminated Standard | LED Red | Panel Mount Front | 30 V | 5 VDC | DPDT | Solder Quick Connect - 0.110" (2.8mm) | No Marking | On-Mom | ||
NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | Voltage Reduction Lighting | Button Rectangular | 50 °C | -25 °C | 3 A | 16 mm | 125 V | Illuminated Standard | Amber LED | Panel Mount Front | 30 V | 2 VDC | DPDT | Solder Quick Connect - 0.110" (2.8mm) | No Marking | On-Mom |
NKK Switches | Clear | Tactile Feedback | Button Rectangular | 50 °C | -25 °C | 0.4 VA | 16 mm | 28 V | Illuminated Standard | Amber LED | Panel Mount Front | 28 V | 2 VDC | SPDT | PC Pin | No Marking | On-Mom | ||
NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | Tactile Feedback | Button Rectangular | 50 °C | -25 °C | 3 A | 16 mm | 125 V | Illuminated Standard | Green LED | Panel Mount Front | 30 V | 24 V | SPDT | Solder Quick Connect - 0.110" (2.8mm) | No Marking | On-Mom |
