3010-20 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER SMD 20POS 2.54MM

Part	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Features	Mounting Type	Number of Rows [custom]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Termination	Shrouding	Contact Shape	Style	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Insulation Height [z]	Cable Termination	Row Spacing	Row Spacing	Contact Finish	Contact Finish Thickness	Pitch	Pitch

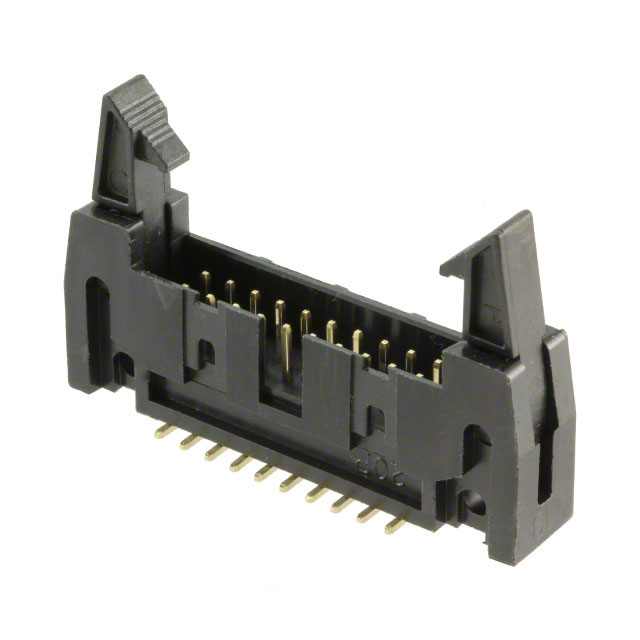

CNC Tech 3010-20-003-13-00	Flash	0.1 in	2.54 mm	250 VAC	Male Pin	0.1 "	2.54 mm	20	Gold	3 A	Header	UL94 V-0	Brass	17 mm	0.669 in	Keying Slot	Surface Mount	2	All	-40 C	105 ░C	Nylon 9T Polyamide (PA9T)	Solder	Shrouded - 4 Wall	Square	Board to Cable/Wire	Latch Lock/Eject Hooks Long
CNC Tech 3010-20-001-13-00	Flash	0.1 in	2.54 mm	250 VAC	Male Pin	0.1 "	2.54 mm	20	Gold	3 A	Header	UL94 V-0	Brass	17 mm	0.669 in	Keying Slot	Through Hole	2	All	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	Solder	Shrouded - 4 Wall	Square	Board to Cable/Wire	Latch Lock/Eject Hooks Long	0.134 "	3.4 mm
CNC Tech 3010-20-002-12-00	Flash	0.1 in	2.54 mm	250 VAC	Male Pin	0.1 "	2.54 mm	20	Gold	3 A	Header	UL94 V-0	Brass	8.3 mm		Keying Slot	Right Angle Through Hole	2	All	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	Solder	Shrouded - 4 Wall	Square	Board to Cable/Wire	Latch Lock/Eject Hooks	0.134 "	3.4 mm	0.327 "

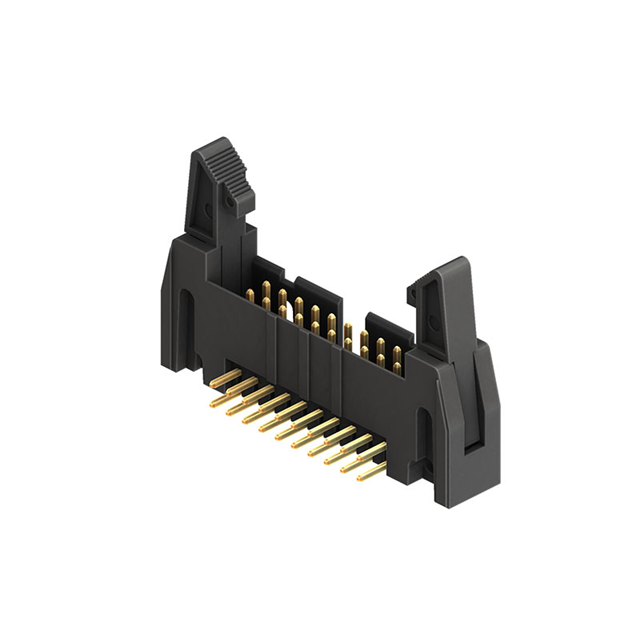

CNC Tech 3010-20-002-13-00	Flash	0.1 in	2.54 mm	250 VAC	Male Pin	0.1 "	2.54 mm	20	Gold	3 A	Header	UL94 V-0	Brass	8.3 mm		Keying Slot	Right Angle Through Hole	2	All	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	Solder	Shrouded - 4 Wall	Square	Board to Cable/Wire	Latch Lock/Eject Hooks Long	0.134 "	3.4 mm	0.327 "
CNC Tech 3010-20-041-11-00					Male Pin			20			Header					Polarizing Key	Free Hanging (In-Line)	2									Push-Pull				IDC	2.54 mm	0.1 "	Gold	Flash	0.1 "	2.54 mm
CNC Tech 3010-20-001-12-00	Flash	0.1 in	2.54 mm	250 VAC	Male Pin	0.1 "	2.54 mm	20	Gold	3 A	Header	UL94 V-0	Brass	17 mm	0.669 in	Keying Slot	Through Hole	2	All	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	Solder	Shrouded - 4 Wall	Square	Board to Cable/Wire	Latch Lock/Eject Hooks	0.134 "	3.4 mm
