FKY1112 Series

Catalog

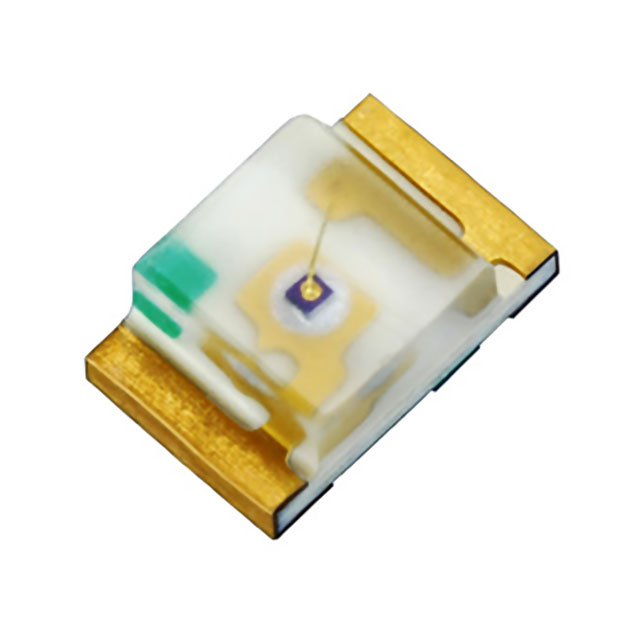

LED YELLOW DIFFUSED 2125 SMD

Part	Supplier Device Package	Lens Color	Color	Voltage - Forward (Vf) (Typ)	Package / Case	Height (Max) [Max] [z]	Lens Transparency	Current - Test	Lens Size [y]	Lens Size [x]	Configuration	Wavelength - Dominant	Mounting Type	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Lens Style
Stanley Electric Co FKY1112H-TR	2125	White	Yellow	2.1 V	0805	0.9 mm	Diffused	20 mA	1.25 mm	1.3 mm	Standard	588 nm	Surface Mount	592 nm	2 mm	1.25 mm	275 mcd	Rectangle with Flat Top
