M20-781 Series

Catalog

CONN, RCPT, 10POS, 2ROW, 2.54MM ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Applications	Contact Shape	Insulation Material	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Insulation Color	Number of Rows [custom]	Contact Type	Insulation Height	Insulation Height	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Fastening Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Features	Number of Positions Loaded

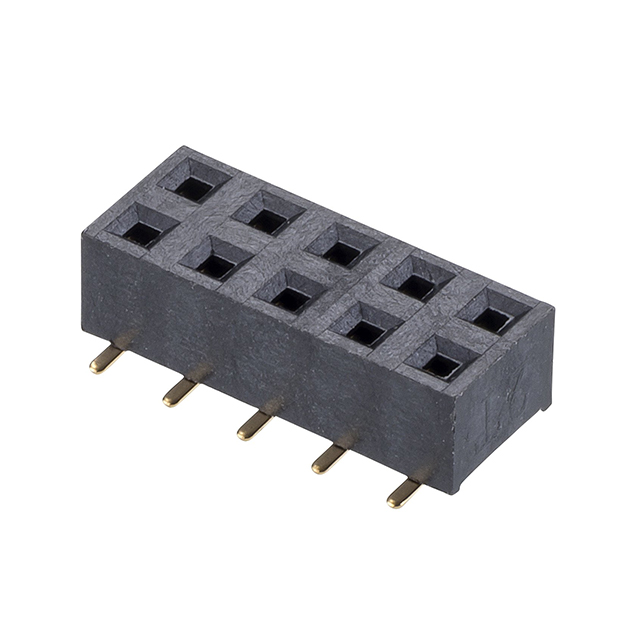

Harwin Inc. M20-7810545R	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	10	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All

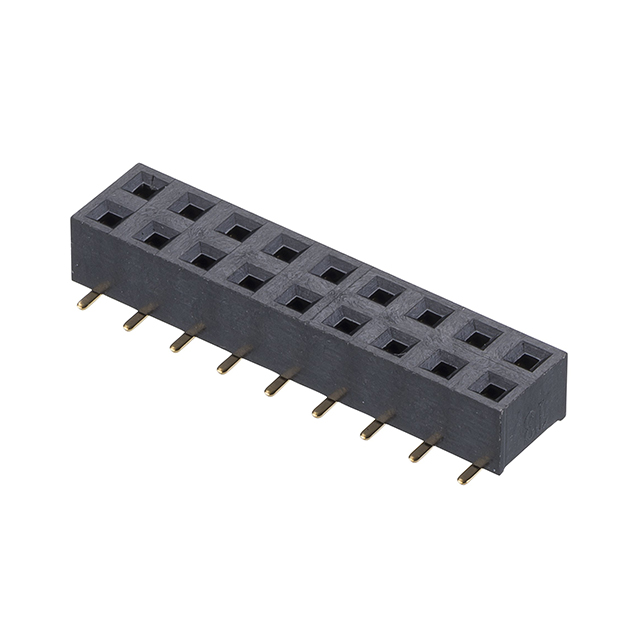

Harwin Inc. M20-7810945	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	18	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All

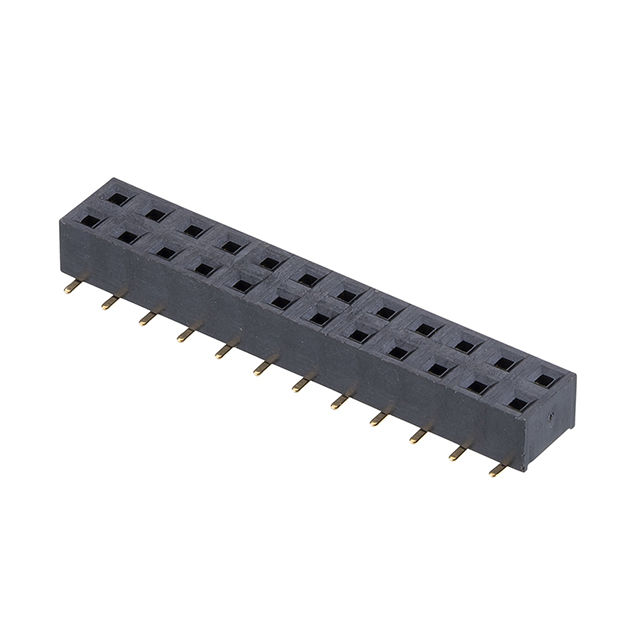

Harwin Inc. M20-7811245	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	24	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All
Harwin Inc. M20-7811245R	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	24	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All
Harwin Inc. M20-7810845R	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	16	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All

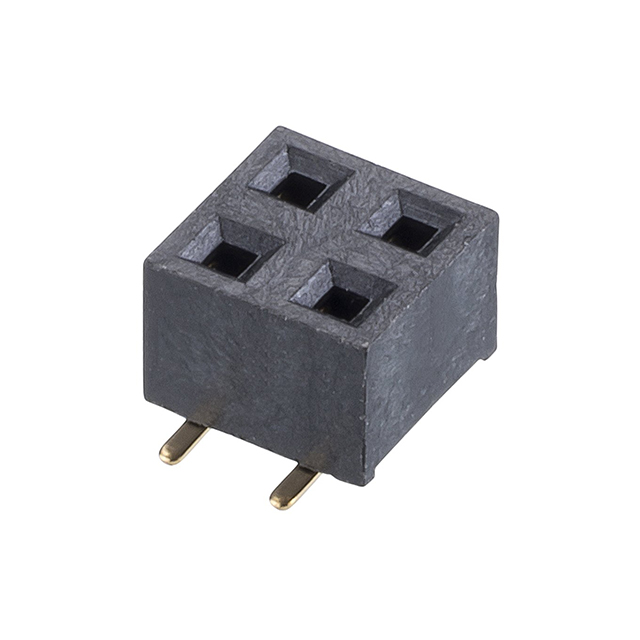

Harwin Inc. M20-7810245R	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	4	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All
Harwin Inc. M20-7812045R	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	40	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All

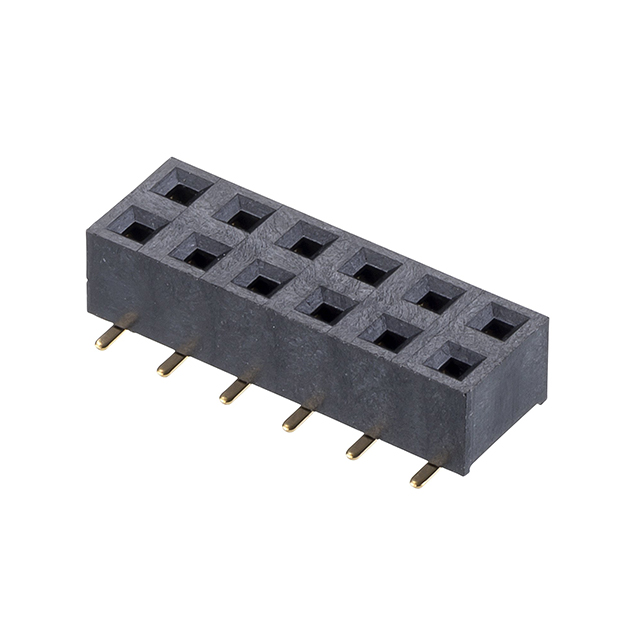

Harwin Inc. M20-7810645	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	12	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All

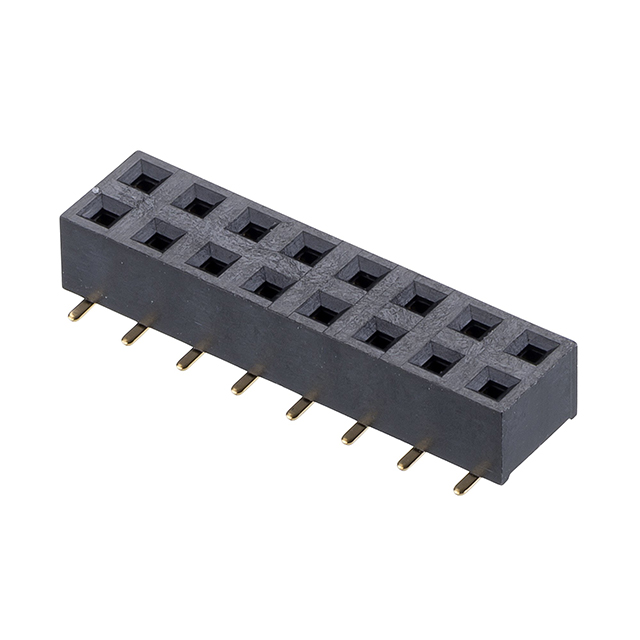

Harwin Inc. M20-7810845	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	16	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All

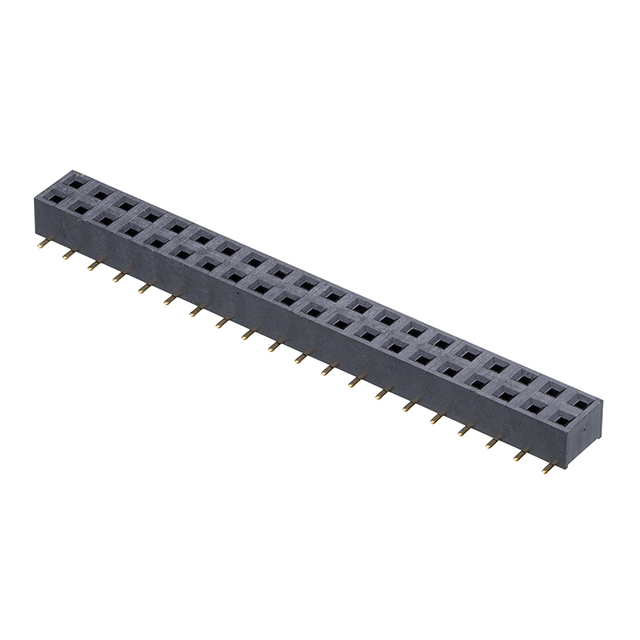

Harwin Inc. M20-7812045	0.15 µm	5.9 µin	Phosphor Bronze	General Purpose	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Gold	40	Gold	Black	2	Female Socket	3.56 mm	0.14 in	Receptacle Bottom or Top Entry	-40 C	105 ░C	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Push-Pull	3 A	0.1 "	2.54 mm	0.015 µm	0.59 µin	Solder	Board Guide	All
