0S Series

Manufacturer: LEMO

Catalog

CIRCULAR PUSH PULL CONNECTORS FIXED RECEPTACLE NUT FIXING

Part	Fastening Type	Number of Positions	Current Rating (Amps)	Ingress Protection	Shell Finish	Primary Material	Mounting Feature	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Color	Insert Material	Shell Size - Insert	Mounting Type	Orientation	Material Flammability Rating	Contact Material	Shell Material	Connector Type	Orientation (Convert To)	Housing Finish	Includes	Orientation (Convert From)	Convert To (Adapter End) [custom]	Convert To (Adapter End) [custom]	Number of Positions (Convert To)	Housing Material	Number of Positions (Convert From)	Shell Size - Insert (Convert To)	Convert From (Adapter End)	Housing Color	Features	Connector Style	Shell Size - Insert (Convert From)	Termination	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Backshell Material, Plating	Material	Accessory Type	For Use With/Related Products	Contact Termination	Shield Termination	Number of Ports	Impedance	Cable Group	Center Contact Material	Cable Opening [Min]	Cable Opening [Max]
LEMO ERA.0S.405.CLL	Push-Pull	1	4 A	IP50 - Dust Protected	Chrome	Metal	Bulkhead - Rear Side Nut	Shielded	-55 C	250 °C	Gold	Silver	Polyetheretherketone (PEEK)	405	Panel Mount	Keyed	UL94 V-0	Bronze	Brass	Receptacle Female Sockets
LEMO RAD.0S.304.CLL	Push-Pull		7 A	IP50 - Dust Protected			Bulkhead - Rear Side Nut	Shielded	-55 C	250 °C					Panel Mount						Keyed	Chrome	1 Adapter 1 Nut 1 Washer	Keyed	Male Pins	Female Sockets	4	Brass	4	304	Female Sockets Male Pins	Silver	Mounting Hardware	Standard	304
LEMO ECP.0S.302.CLN	Push-Pull	2	10 A	IP50 - Dust Protected	Chrome	Metal	Front and Rear Side Nut	Shielded	-55 C	250 °C	Gold	Silver	Polyetheretherketone (PEEK)	302	Panel Mount Through Hole	Keyed	UL94 V-0	Brass Bronze	Brass	Receptacle Female Sockets and Male Pins																Solder
LEMO ERA.0S.304.CLL	Push-Pull	4	7 A	IP50 - Dust Protected	Chrome	Metal	Bulkhead - Rear Side Nut	Shielded	-55 C	250 °C	Gold	Silver	Polyetheretherketone (PEEK)	304	Panel Mount	Keyed	UL94 V-0	Brass Bronze	Brass	Receptacle Female Sockets and Male Pins

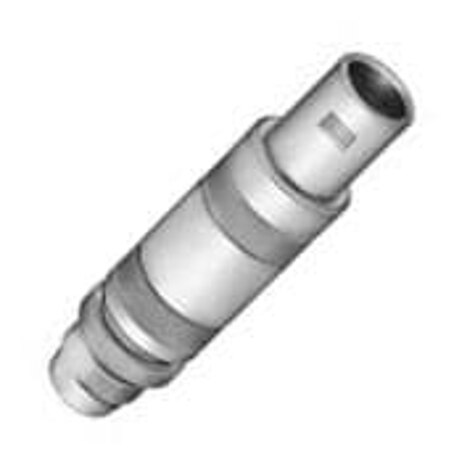

LEMO FFB.0S.403.CLAC42	Push-Pull	1	4 A	IP50 - Dust Protected	Chrome	Metal		Shielded	-55 C	250 °C	Gold	Silver	Polyetheretherketone (PEEK)	403	Free Hanging (In-Line)	Keyed	UL94 V-0	Brass	Brass	Plug Male Pins													Backshell				4.2 mm	0.165 "	0.126 "	3.2 mm	Brass Chrome
LEMO ERA.0S.304.CLN	Push-Pull	4	7 A	IP50 - Dust Protected	Chrome	Metal	Bulkhead - Rear Side Nut	Shielded	-55 C	250 °C	Gold	Silver	Polyetheretherketone (PEEK)	304	Panel Mount Through Hole	Keyed	UL94 V-0	Brass Bronze	Brass	Receptacle Female Sockets and Male Pins																Solder
LEMO FFA.0S.737.CNT												Silver																														Brass	Collet	0S Series Connector
LEMO ERD.0S.302.CYZ	Push-Pull	2	10 A	IP50 - Dust Protected	Chrome	Metal	Front and Rear Side Nut	Shielded	-55 C	250 °C	Gold	Silver	Polyetheretherketone (PEEK)	302	Panel Mount	Keyed	UL94 V-0	Brass Bronze	Brass	Receptacle Female Sockets and Male Pins																Crimp
LEMO FFA.0S.650.CLAL27Z	Push-Pull			IP50 - Dust Protected											Free Hanging (In-Line)					Plug Male Pin												Silver		Triaxial											Solder	Clamp	1	50 Ohms	RG-174 RG-178	Brass

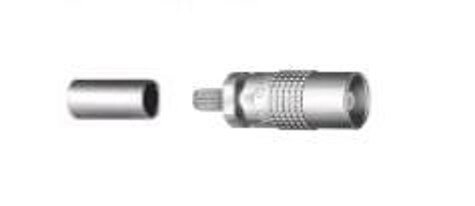

LEMO PCS.0S.405.CLLE33	Push-Pull	1	4 A	IP50 - Dust Protected	Chrome	Metal		Shielded	-55 C	250 °C	Gold	Silver	Polyetheretherketone (PEEK)	405	Free Hanging (In-Line)	Keyed	UL94 V-0	Bronze	Brass	Receptacle Female Sockets																		3.3 mm	2.6 mm												0.102 "	0.13 in
