BAR90 Series

Manufacturer: INFINEON

Catalog

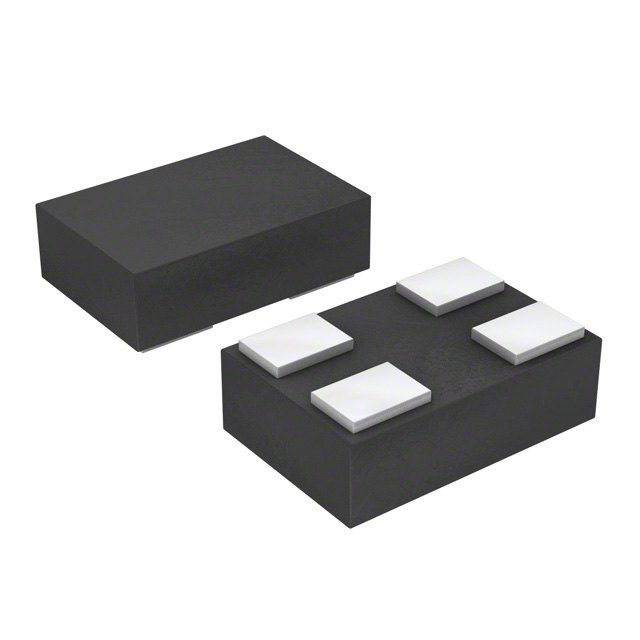

RF DIODE PIN 80V 250MW TSLP-4-7

Part	Diode Type	Supplier Device Package	Package / Case	Power Dissipation (Max) [Max]	Current - Max [Max]	Resistance @ If, F	Voltage - Peak Reverse (Max)	Capacitance @ Vr, F	Operating Temperature
INFINEON BAR 90-099LRH E6327	PIN - 2 Independent	PG-TSLP-4-7	4-XFDFN	250 mW	100 mA	800 mOhm	80 V	0.35 pF	150 °C
INFINEON BAR 90-07LRH E6327	PIN - 2 Independent	PG-TSLP-4-7	4-XFDFN	250 mW	100 mA	800 mOhm	80 V	0.35 pF	150 °C
INFINEON BAR 90-098L4 E6327	PIN - 2 Independent	PG-TSLP-4-7	4-XFDFN	250 mW	100 mA	800 mOhm	80 V	0.35 pF	150 °C
