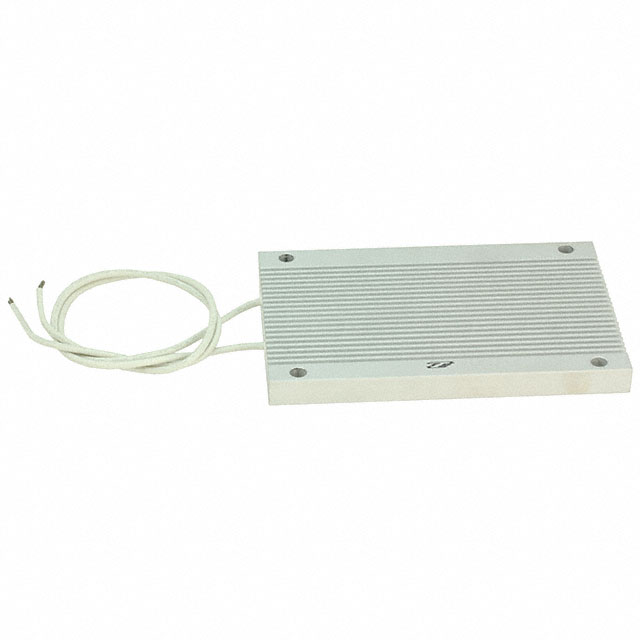

TJT150 Series

Catalog

WIREWOUND RESISTORS - CHASSIS MOUNT TJT 150W 220R 5%

Part	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Temperature Coefficient	Mounting Feature	Coating, Housing Type	Composition	Resistance	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lead Style
TE Connectivity AMP Connectors TJT150220RJ	150 W	10 mm	0.394 in	250 °C	-25 °C	Rectangular Case	260 ppm/°C	Screw Holes	Aluminum	Wirewound	220 Ohms	5 %	120 mm	3.15 in	80 mm	4.724 in	Wire Leads
TE Connectivity AMP Connectors TJT150680RJ	150 W	10 mm	0.394 in	250 °C	-25 °C	Rectangular Case	260 ppm/°C	Screw Holes	Aluminum	Wirewound	680 Ohms	5 %	120 mm	3.15 in	80 mm	4.724 in	Wire Leads
TE Connectivity AMP Connectors TJT1506R8J	150 W	10 mm	0.394 in	250 °C	-25 °C	Rectangular Case	260 ppm/°C	Screw Holes	Aluminum	Wirewound	6.8 Ohms	5 %	120 mm	3.15 in	80 mm	4.724 in	Wire Leads
TE Connectivity AMP Connectors TJT1504R7J	150 W	10 mm	0.394 in	250 °C	-25 °C	Rectangular Case	260 ppm/°C	Screw Holes	Aluminum	Wirewound	4.7 Ohms	5 %	120 mm	3.15 in	80 mm	4.724 in	Wire Leads
