LP Series

Catalog

SIGNAL CONDITIONING 400MHZ LPF AECQ200 T&R

Part	Insertion Loss	Filter Type	Frequency	Bandwidth	Mounting Type	Package / Case	Package / Case	Height (Max) [Max] [z]	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Size / Dimension [y]
Johanson Technology Inc. 0400LP15A0122002E	1.3 dB	Low Pass	373 MHz	122 MHz
Johanson Technology Inc. 0869LP14A0090001T	0.6 dB	Low Pass	869 MHz	91 MHz	Surface Mount	6 PC Pad	0603 (1608 Metric)	0.028 in	0.7 mm	0.031 in	1.6 mm	0.8 mm	0.063 "
Johanson Technology Inc. 2450LP14B0100001T	0.5 dB	Low Pass	2.45 GHz	100 MHz	Surface Mount	6 PC Pad	0603 (1608 Metric)	0.028 in	0.7 mm	0.031 in	1.6 mm	0.8 mm	0.063 "
Johanson Technology Inc. 3550LP14A0300001T	0.65 dB	Low Pass	3.55 GHz	300 MHz	Surface Mount	6 PC Pad	0603 (1608 Metric)	0.028 in	0.7 mm	0.031 in	1.6 mm	0.8 mm	0.063 "

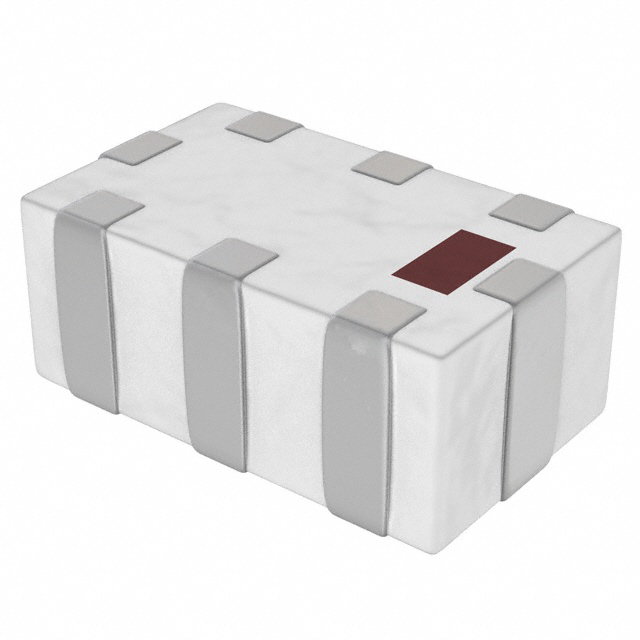

Johanson Technology Inc. 2450LP15A0050001E	0.5 dB	Low Pass	2.45 GHz	100 MHz	Surface Mount		0805 (2012 Metric) 8 PC Pad		0.95 mm	0.049 "	2 mm		0.079 in	0.037 in	1.25 mm

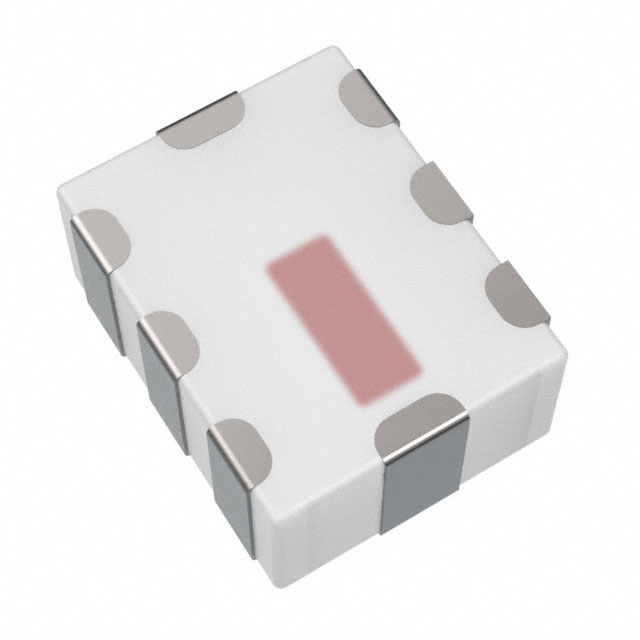

Johanson Technology Inc. 1000LP41B1000001E	0.9 dB	Low Pass	911.5 MHz	97 MHz	Surface Mount	8 PC Pad	1210 (3225 Metric)		1.65 mm	0.098 in	3.2 mm		0.126 "	0.065 in	2.5 mm
