CONREVMCX Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN RP-MCX RCPT R/A 50 OHM PCB
| Part | Body Material | Dielectric Material | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Insertion Loss | Center Contact Plating | Mounting Feature | Shield Termination | Frequency - Max [Max] | Contact Termination | Connector Style | Connector Type | Center Contact Material | Housing Color | Mounting Type | Fastening Type | Impedance | Number of Ports | Cable Group | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

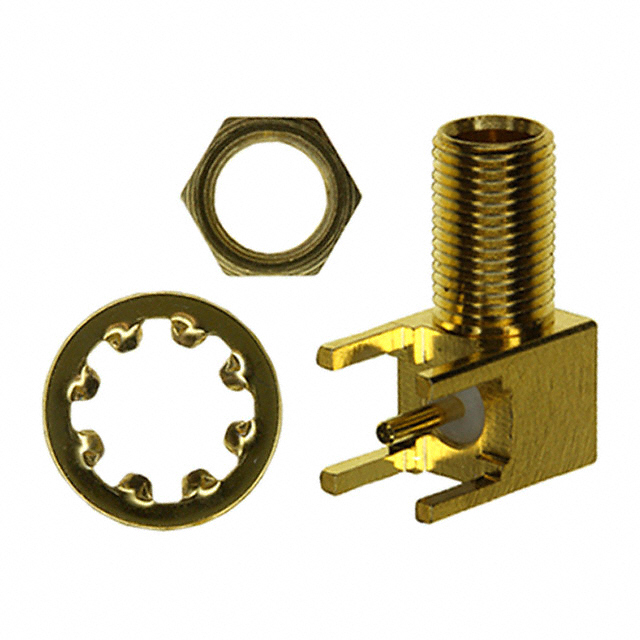

 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 1 Connector 1 Lockwasher 1 Nut | 0.2 dB | Gold | Bulkhead - Front Side Nut | Solder | 6000 MHz | Solder | RP-MCX | Receptacle Male Pin | Phosphor Bronze | Gold | Panel Mount Right Angle Through Hole | Threaded | 50 Ohms | 1 | ||
 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Nickel | 500 | -65 ░C | 165 °C | 0.1 dB | Gold | Crimp | 6000 MHz | Solder | RP-MCX | Female Socket Plug | Beryllium Copper | Silver | Free Hanging (In-Line) | Push-Pull | 50 Ohms | 1 | RG-174 | |||
 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 0.1 dB | Gold | Solder | 6000 MHz | Solder | RP-MCX | Receptacle Male Pin | Phosphor Bronze | Gold | Board Edge End Launch | Push-Pull | 50 Ohms | 1 | ||||

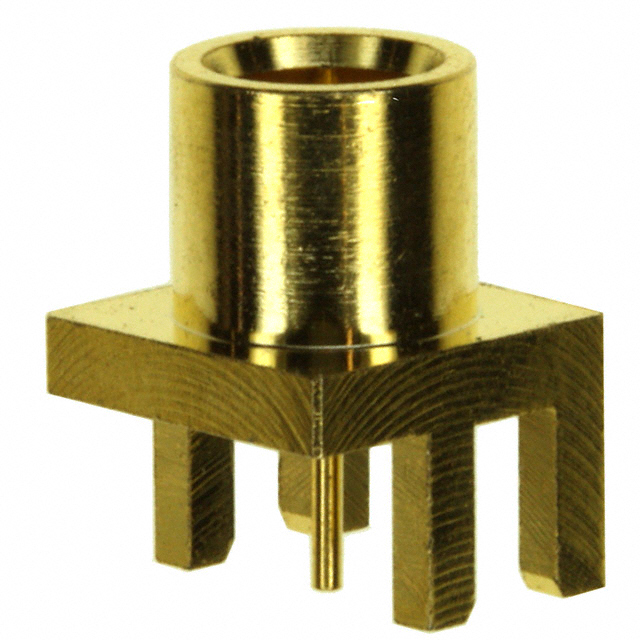

 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 0.1 dB | Gold | Solder | 6000 MHz | Solder | RP-MCX | Receptacle Male Pin | Brass | Gold | Through Hole | Push-Pull | 50 Ohms | 1 | ||||

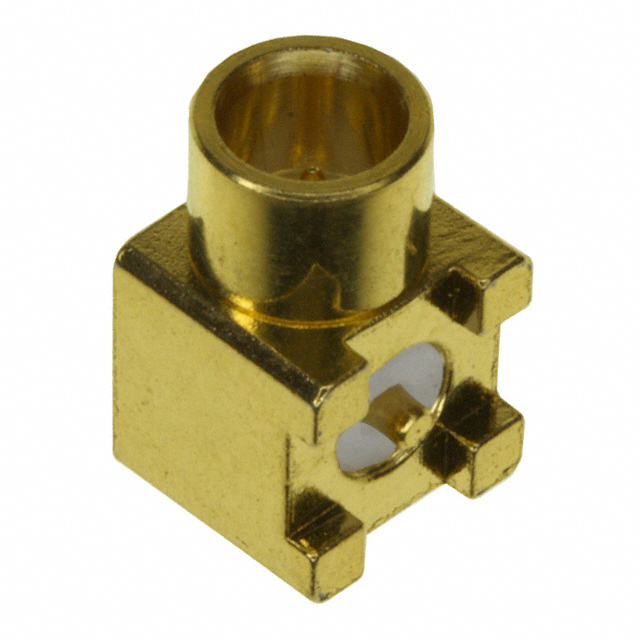

 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 0.1 dB | Gold | Solder | 6000 MHz | Solder | RP-MCX | Receptacle Male Pin | Beryllium Copper | Gold | Right Angle Surface Mount | Push-Pull | 50 Ohms | 1 | ||||

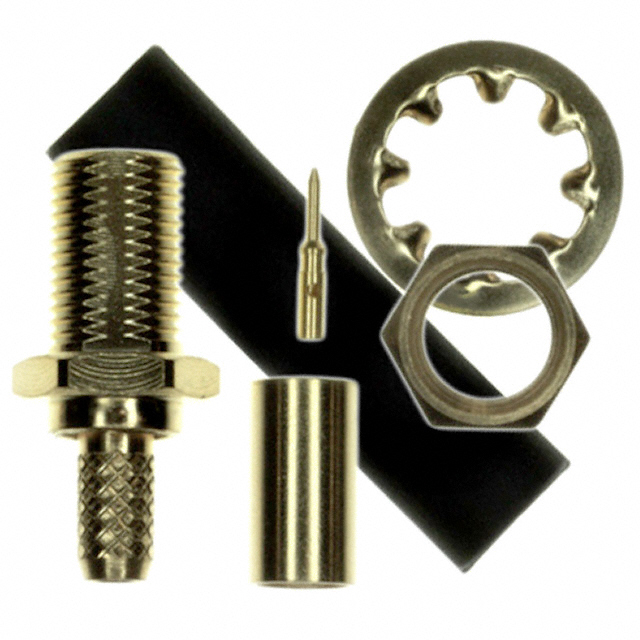

 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 6 pcs - 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut | 0.1 dB | Gold | Bulkhead - Front Side Nut | Crimp | 6000 MHz | Solder | RP-MCX | Receptacle Male Pin | Phosphor Bronze | Gold | Panel Mount | Threaded | 50 Ohms | 1 | RG-174 | |
 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 0.1 dB | Gold | Crimp | 6000 MHz | Solder | RP-MCX | Receptacle Male Pin | Phosphor Bronze | Gold | Free Hanging (In-Line) | Push-Pull | 50 Ohms | 1 | RG-174 | |||

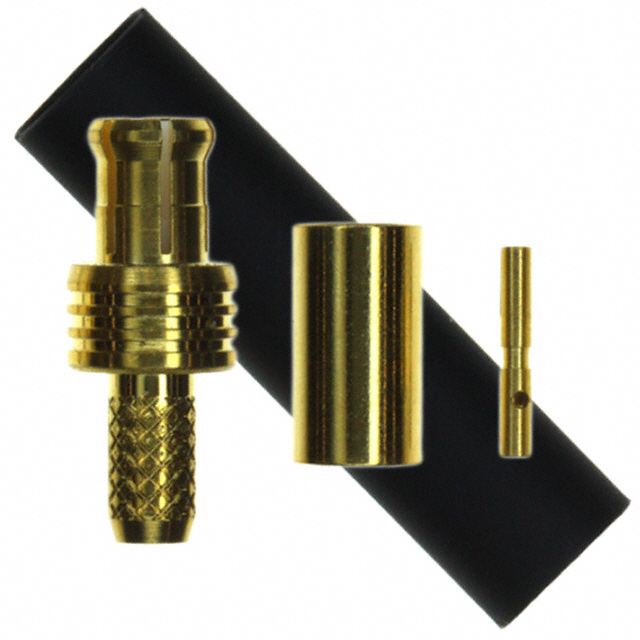

 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | 0.2 dB | Gold | Crimp | 6000 MHz | Solder | RP-MCX | Female Socket Plug | Beryllium Copper | Gold | Free Hanging (In-Line) Right Angle | Push-Pull | 50 Ohms | 1 | RG-174 | ||

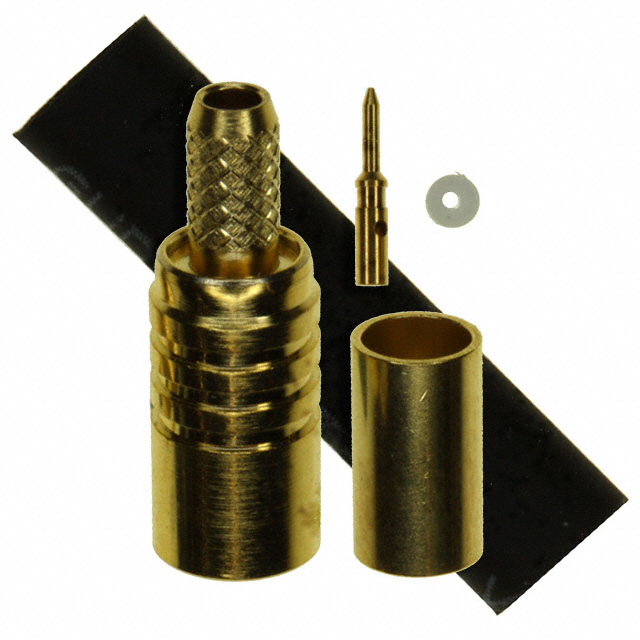

 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support | 0.1 dB | Gold | Crimp | 6000 MHz | Crimp Solder | RP-MCX | Female Socket Plug | Beryllium Copper | Gold | Free Hanging (In-Line) | Push-Pull | 50 Ohms | 1 | RG-178 | 250 V | |

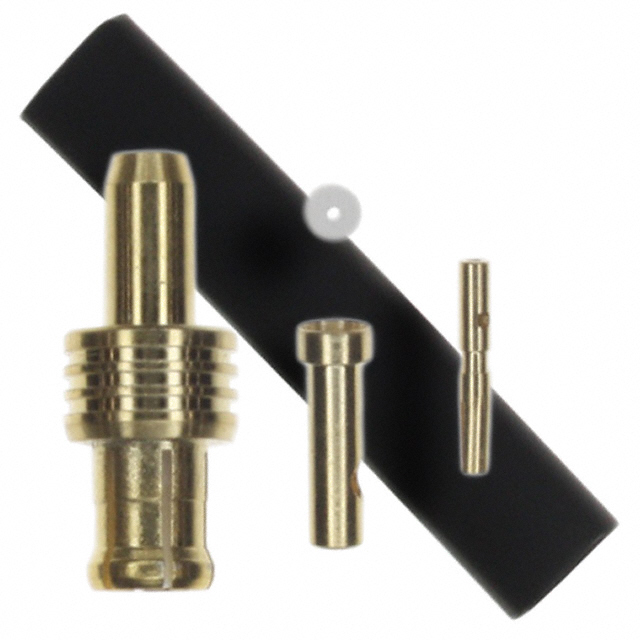

 TE Connectivity AMP Connectors | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | 0.2 dB | Gold | Crimp | 6000 MHz | Solder | RP-MCX | Female Socket Plug | Beryllium Copper | Gold | Free Hanging (In-Line) Right Angle | Push-Pull | 50 Ohms | 1 | RG-178 | 250 V |
