MEAS RT8420 Series

Catalog

RT8420-0001-212-1120: CTO-11500000-15

Part	Mounting Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Actuator Type	Output [Min]	Output [Max]	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	For Measuring	Output Signal	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]
TE Connectivity AMP Connectors RT8420-0001-212-1120	Panel Mount	Module Round Shaft	8 V	34 VDC	Round Shaft	4 mA	20 mA	Resistive	90 °C	-40 C	Connector	Rotary Position	Clockwise Increase

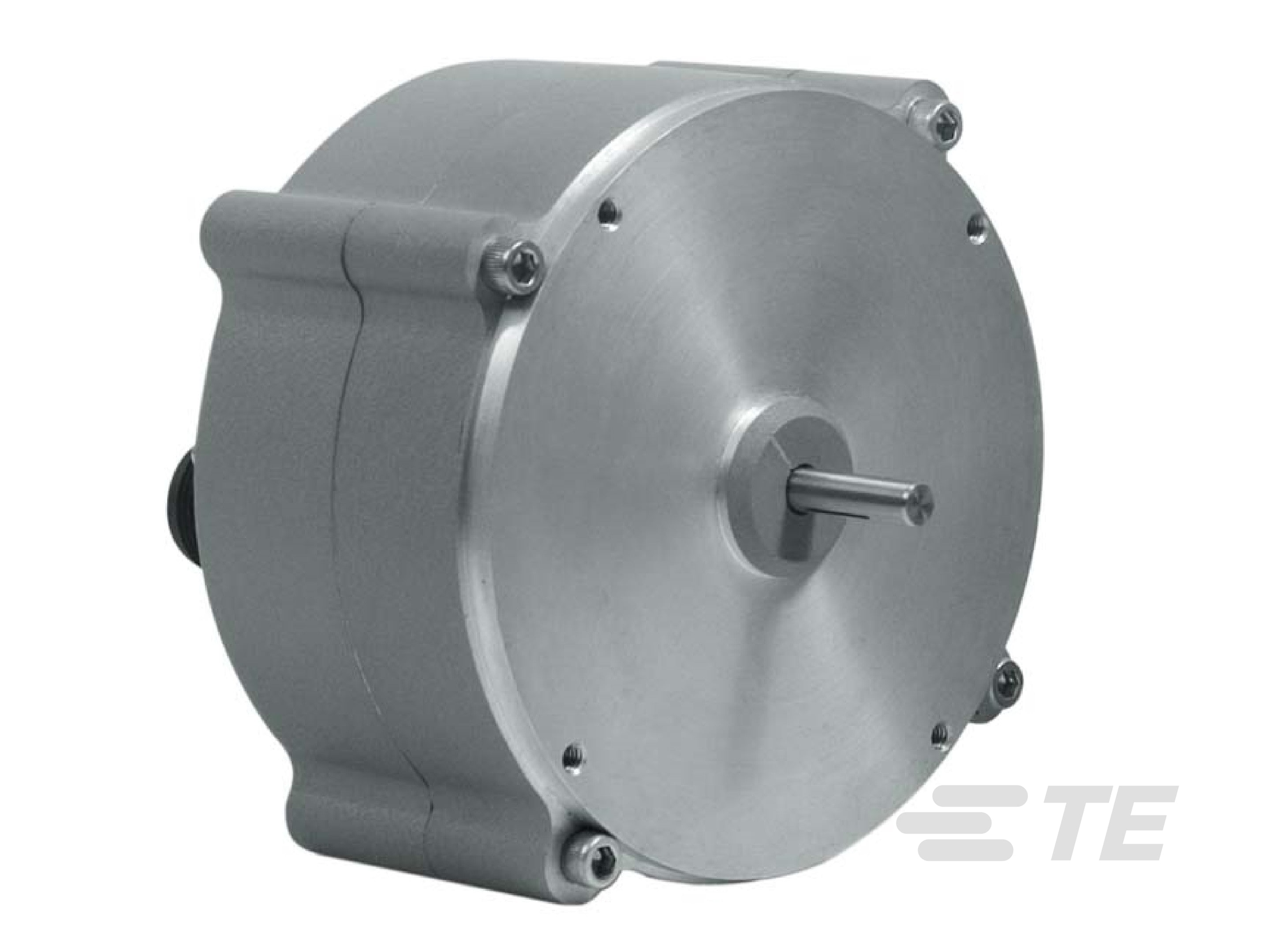

TE Connectivity AMP Connectors RT8420-0020-232-1110		Module	8 V	34 VDC	Round Shaft	20 mA	4 mA	Resistive	93 °C	-40 C	Connector	Rotary Position	Clockwise Increase
TE Connectivity AMP Connectors RT8420-0001-221-1170
TE Connectivity AMP Connectors RT8420-0001-112-1120
TE Connectivity AMP Connectors RT8420-0100-121-1110	Panel Mount	Module Round Shaft	8 V	34 VDC	Round Shaft	4 mA	20 mA	Resistive	100 °C	-40 C	Connector	Rotary Position	Clockwise Increase	45 °	72000 °
TE Connectivity AMP Connectors RT8420-0050-231-1120
TE Connectivity AMP Connectors RT8420-0005-121-1140		Module	8 V	34 VDC	Round Shaft	20 mA	4 mA	Resistive	93 °C	-40 C	Connector	Rotary Position	Clockwise Increase
TE Connectivity AMP Connectors RT8420-0020-211-1220	Panel Mount	Module Round Shaft	8 V	34 VDC	Round Shaft	20 mA	4 mA	Resistive	90 °C	-40 C	Connector	Rotary Position	Clockwise Increase
TE Connectivity AMP Connectors RT8420-0003-142-1120		Module	8 V	34 VDC	Round Shaft	20 mA	4 mA	Resistive	93 °C	-40 C	Connector	Rotary Position	Clockwise Increase
