45208 Series

Catalog

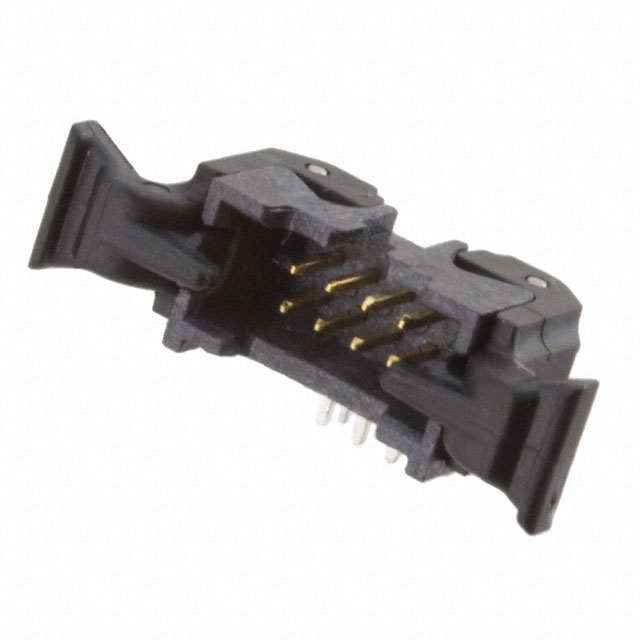

CONN, R/A HEADER, 8POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions Loaded	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Material Flammability Rating	Shrouding	Features	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Style	Contact Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insulation Material	Connector Type	Insulation Height	Insulation Height	Contact Shape	Fastening Type	Contact Length - Post	Contact Length - Post	Termination	Contact Finish Thickness - Mating	Mated Stacking Heights
3M Electronic Specialty 45208-520230	200 µin	5.08 µm	Tin	All	Copper Alloy	0.76 Ám	30 Áin	1.27 mm	0.05 in	Right Angle Through Hole	UL94 V-0	Shrouded - 4 Wall	Keying Slot	8	0.05 in	1.27 mm	2	Board to Cable/Wire	Male Pin	Gold	-65 ░C	125 °C	125 VDC	Liquid Crystal Polymer (LCP)	Header	0.21 in	5.33 mm	Square	Latch Lock/Eject Hooks	2.4 mm	0.094 in	Solder
3M Electronic Specialty 45208-520200	100 µin	2.54 µm	Tin	All	Copper Alloy			1.27 mm	0.05 in	Right Angle Through Hole	UL94 V-0	Shrouded - 4 Wall	Keying Slot	8	0.05 in	1.27 mm	2	Board to Cable/Wire	Male Pin	Gold	-65 ░C	125 °C	125 VDC	Liquid Crystal Polymer (LCP)	Header	0.21 in	5.33 mm	Square	Latch Lock/Eject Hooks	2.4 mm	0.094 in	Solder	Flash
3M Electronic Specialty 45208-600200	100 µin	2.54 µm	Tin	All	Copper Alloy			1.27 mm	0.05 in	Through Hole	UL94 V-0	Shrouded - 4 Wall	Keying Slot	8	0.05 in	1.27 mm	2	Board to Cable/Wire	Male Pin	Gold	-65 ░C	125 °C	125 VDC	Liquid Crystal Polymer (LCP)	Header	0.222 in	5.65 mm	Square	Push-Pull	2.4 mm	0.094 in	Solder	Flash	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M Electronic Specialty 45208-200200	100 µin	2.54 µm	Tin	All	Copper Alloy			1.27 mm	0.05 in	Surface Mount	UL94 V-0	Shrouded - 4 Wall	Keying Slot Pick and Place	8	0.05 in	1.27 mm	2	Board to Cable/Wire	Male Pin	Gold	-65 ░C	125 °C	125 VDC	Liquid Crystal Polymer (LCP)	Header	0.222 in	5.65 mm	Square	Push-Pull			Solder	Flash	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M Electronic Specialty 45208-200230	200 µin	5.08 µm	Tin	All	Copper Alloy	0.76 Ám	30 Áin	1.27 mm	0.05 in	Surface Mount	UL94 V-0	Shrouded - 4 Wall	Keying Slot Pick and Place	8	0.05 in	1.27 mm	2	Board to Cable/Wire	Male Pin	Gold	-65 ░C	125 °C	125 VDC	Liquid Crystal Polymer (LCP)	Header	0.222 in	5.65 mm	Square	Push-Pull			Solder		5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M Electronic Specialty 45208-220200	100 µin	2.54 µm	Tin	All	Copper Alloy			1.27 mm	0.05 in	Surface Mount	UL94 V-0	Shrouded - 4 Wall	Keying Slot Pick and Place	8	0.05 in	1.27 mm	2	Board to Cable/Wire	Male Pin	Gold	-65 ░C	125 °C	125 VDC	Liquid Crystal Polymer (LCP)	Header	0.222 in	5.65 mm	Square	Latch Lock/Eject Hooks			Solder	Flash	5.84 mm 6.6 mm 7.21 mm 8.13 mm
