UBMC-22 Series
Manufacturer: Essentra Components
Beta
⌘K

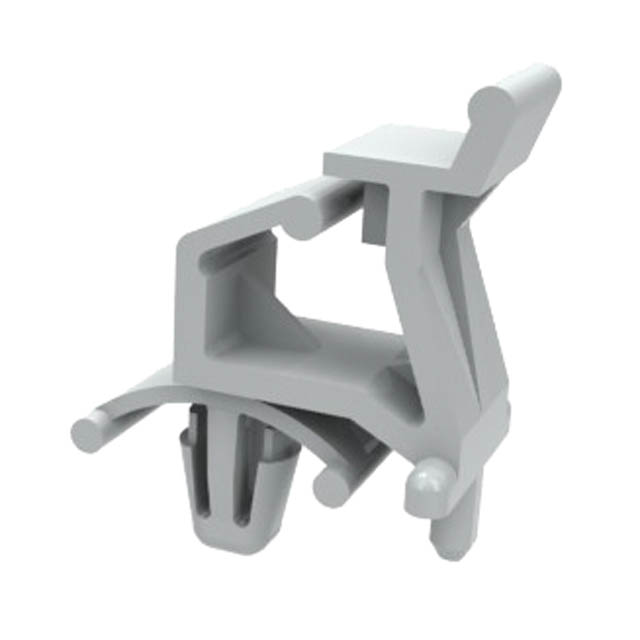

BRD SPT EDGE HOLD SNAP LOCK 22MM
| Part | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Length - Overall | Length - Overall | Features | Holding Type | Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Support Panel Thickness [custom] | Support Panel Thickness [custom] | Support Panel Thickness [custom] | Between Board Height | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 1 mm | 0.09 " | 0.039 " | 2.3 mm | 1.252 " | 31.81 mm | Winged | Edge Holding | Nylon | 0.1875 in | 0.187 in | 4.75 mm | Snap Lock | 1.5 mm | 2.3 mm | 0.06 in 0.09 in | 0.866 in | 22 mm |
