20SVP Series

Manufacturer: Panasonic Electronic Components

Catalog

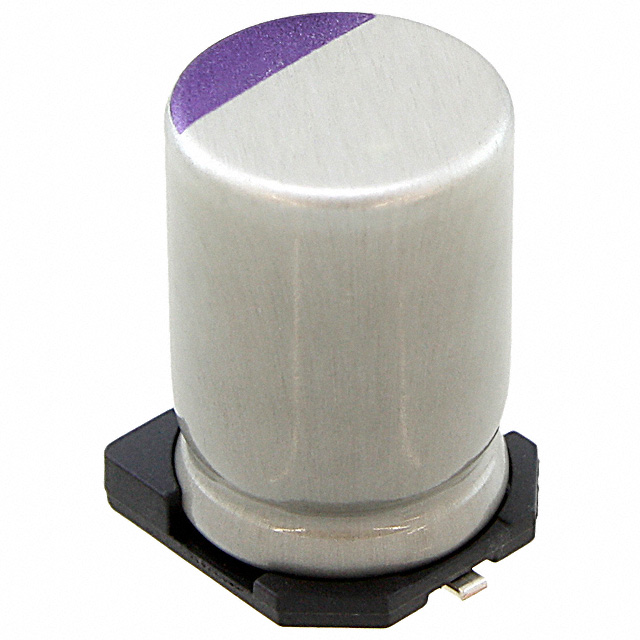

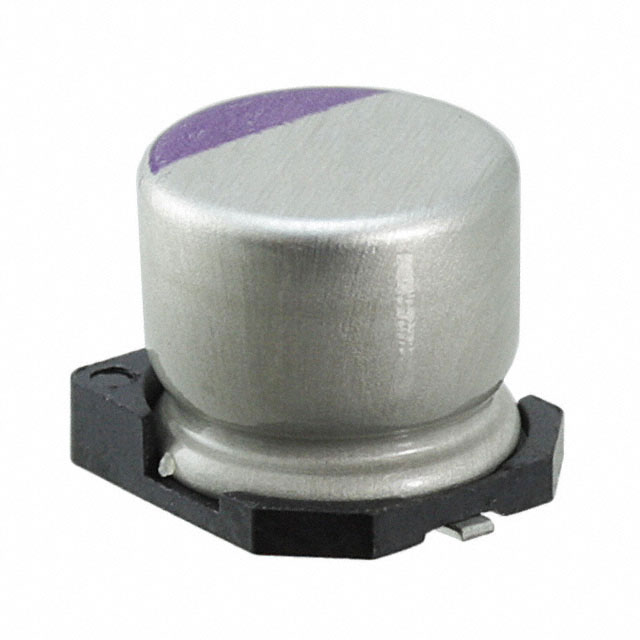

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 150 ΜF, 20 V, RADIAL CAN - SMD, 0.02 OHM

Part	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Tolerance	Applications	Ripple Current @ Low Frequency	Height - Seated (Max)
Panasonic Electronic Components 20SVP150M	20 mOhms	4.32 A	150 µF	0.394 in	10 mm	Radial Can - SMD	Polymer	-55 C	105 ░C	20 V	0.406 "	0.406 in	10.3 mm	10.3 mm	Surface Mount	0.5 in	12.7 mm	2000 Hrs	20 %	General Purpose	216 mA
Panasonic Electronic Components 20SVP100M	24 mOhms	3.32 A	100 µF	0.315 in	8 mm	Radial Can - SMD	Polymer	-55 C	105 ░C	20 V	0.327 in	0.327 in	8.3 mm	8.3 mm	Surface Mount	0.472 in		2000 Hrs	20 %	General Purpose	166 mA	12 mm
Panasonic Electronic Components 20SVP22M	60 mOhms	1.45 A	22 µF	0.248 "	6.3 mm	Radial Can - SMD	Polymer	-55 C	105 ░C	20 V	0.26 in	0.26 in	6.6 mm	6.6 mm	Surface Mount	0.236 "		2000 Hrs	20 %	General Purpose	72.5 mA	6 mm
Panasonic Electronic Components 20SVP68M	40 mOhm	2.4 A	68 µF	0.394 in	10 mm	Radial Can - SMD	Polymer	-55 C	105 ░C	20 V	0.406 "	0.406 in	10.3 mm	10.3 mm	Surface Mount	0.315 in	8 mm	2000 Hrs	20 %	General Purpose	120 mA
Panasonic Electronic Components 20SVP27M	60 mOhms	1.45 A	27 µF	0.248 "	6.3 mm	Radial Can - SMD	Polymer	-55 C	105 ░C	20 V	0.26 in	0.26 in	6.6 mm	6.6 mm	Surface Mount	0.236 "		2000 Hrs	20 %	General Purpose	72.5 mA	6 mm
Panasonic Electronic Components 20SVP47M	45 mOhm	1.89 A	47 µF	0.315 in	8 mm	Radial Can - SMD	Polymer	-55 C	105 ░C	20 V	0.327 in	0.327 in	8.3 mm	8.3 mm	Surface Mount	0.276 in	7 mm	2000 Hrs	20 %	General Purpose	94.5 mA
Panasonic Electronic Components 20SVP10M	120 mOhm	1.02 A	10 µF	0.197 in	5 mm	Radial Can - SMD	Polymer	-55 C	105 ░C	20 V			0.209 in 5.3 mm	0.209 in 5.3 mm	Surface Mount	0.236 "		2000 Hrs	20 %	General Purpose	51 mA	6 mm
Panasonic Electronic Components 20SVP56M	40 mOhm	2.4 A	56 µF	0.394 in	10 mm	Radial Can - SMD	Polymer	-55 C	105 ░C	20 V	0.406 "	0.406 in	10.3 mm	10.3 mm	Surface Mount	0.315 in	8 mm	2000 Hrs	20 %	General Purpose	120 mA
