NJM2396 Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K

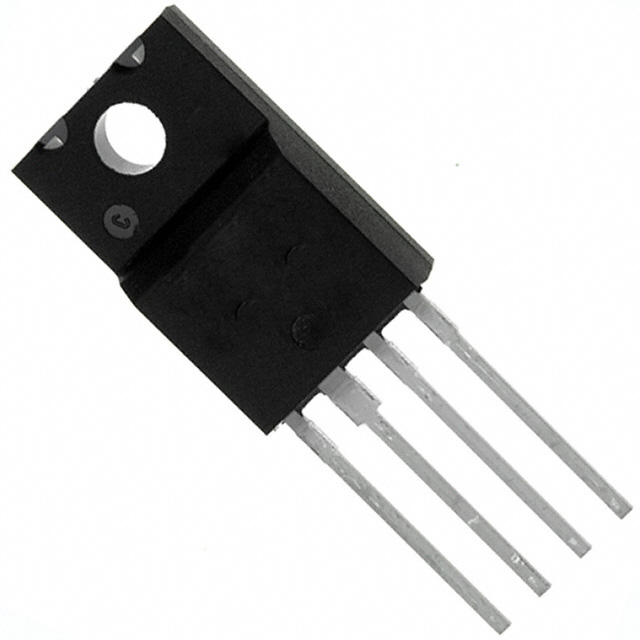

IC REG LINEAR 8.3V 1.5A TO220F-4
| Part | Current - Quiescent (Iq) | Protection Features | Output Configuration | Voltage - Input (Max) [Max] | Voltage Dropout (Max) | Package / Case | Mounting Type | Voltage - Output (Min/Fixed) | Control Features | Current - Output | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | PSRR | Number of Regulators |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nisshinbo Micro Devices Inc. | 5 mA | Over Current Over Temperature Over Voltage | Positive | 35 V | 0.5 V | TO-220-4 Full Pack | Through Hole | 8.3 V | Enable | 1.5 A | TO-220F-4 | 85 °C | -40 C | 58 dB | 1 |
Nisshinbo Micro Devices Inc. | Over Current Over Temperature Over Voltage | Positive | 35 V | 0.5 V | TO-220-4 Full Pack | Through Hole | 5 V | Enable | 1.5 A | TO-220F-4 | 85 °C | -40 C | 60 dB | 1 | |
Nisshinbo Micro Devices Inc. | 5 mA | Over Current Over Temperature Over Voltage | Positive | 35 V | 0.5 V | TO-220-4 Full Pack | Through Hole | 12 V | Enable | 1.5 A | TO-220F-4 | 85 °C | -40 C | 58 dB | 1 |
Nisshinbo Micro Devices Inc. | 5 mA | Over Current Over Temperature Over Voltage | Positive | 35 V | 0.5 V | TO-220-4 Full Pack | Through Hole | 8 V | Enable | 1.5 A | TO-220F-4 | 85 °C | -40 C | 58 dB | 1 |
