9002 Series

Catalog

REED RELAYS RF RELAY SPST 500MA 12V

Part	Coil Resistance	Must Operate Voltage	Must Release Voltage	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Contact Rating (Current)	Release Time	Features	Contact Form	Switching Voltage [Max]	Coil Current	Operate Time	Coil Type
COTO TECHNOLOGY 9002-12-11	750 Ohms	9 VDC	1 VDC	PC Pin	Through Hole	85 °C	-20 ░C	12 VDC	0.5 A	0.1 ms	Diode Magnetic Shield	SPST-NO (1 Form A)	200 VDC 200 VAC	16 mA	0.35 ms	Non Latching
COTO TECHNOLOGY 9002-05-00	350 Ohms	3.75 VDC	0.4 VDC	PC Pin	Through Hole	85 °C	-20 ░C	5 VDC	0.5 A	0.1 ms		SPST-NO (1 Form A)	200 VDC 200 VAC	14.3 mA	0.35 ms	Non Latching
COTO TECHNOLOGY 9002-05-01	350 Ohms	3.75 VDC	0.4 VDC	PC Pin	Through Hole	85 °C	-20 ░C	5 VDC	0.5 A	0.1 ms	Diode	SPST-NO (1 Form A)	200 VDC 200 VAC	14.3 mA	0.35 ms	Non Latching

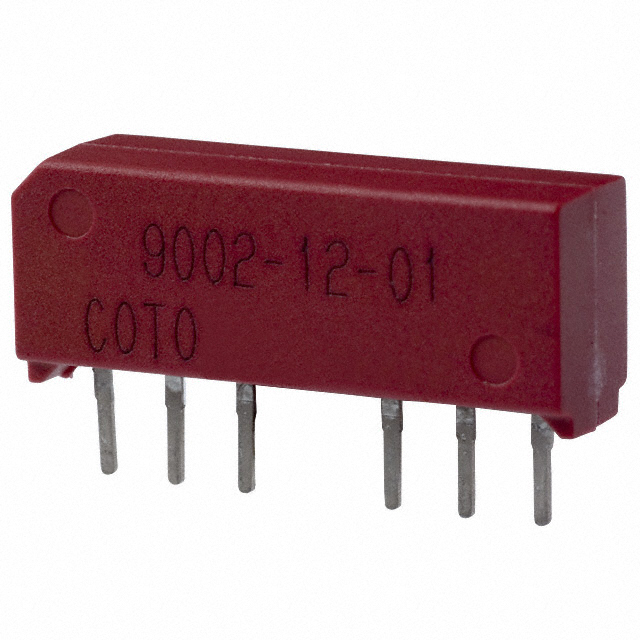

COTO TECHNOLOGY 9002-12-01	750 Ohms	9 VDC	1 VDC	PC Pin	Through Hole	85 °C	-20 ░C	12 VDC	0.5 A	0.1 ms	Diode	SPST-NO (1 Form A)	200 VDC 200 VAC	16 mA	0.35 ms	Non Latching

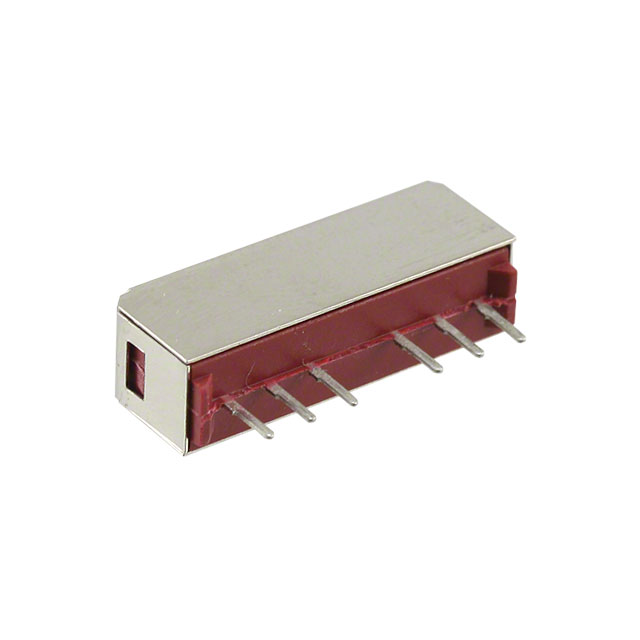

COTO TECHNOLOGY 9002-05-10	350 Ohms	3.75 VDC	0.4 VDC	PC Pin	Through Hole	85 °C	-20 ░C	5 VDC	0.5 A	0.1 ms	Magnetic Shield	SPST-NO (1 Form A)	200 VDC 200 VAC	14.3 mA	0.35 ms	Non Latching
COTO TECHNOLOGY 9002-05-11	350 Ohms	3.75 VDC	0.4 VDC	PC Pin	Through Hole	85 °C	-20 ░C	5 VDC	0.5 A	0.1 ms	Diode Magnetic Shield	SPST-NO (1 Form A)	200 VDC 200 VAC	14.3 mA	0.35 ms	Non Latching
COTO TECHNOLOGY 9002-12-00	750 Ohms	9 VDC	1 VDC	PC Pin	Through Hole	85 °C	-20 ░C	12 VDC	0.5 A	0.1 ms		SPST-NO (1 Form A)	200 VDC 200 VAC	16 mA	0.35 ms	Non Latching
