TFC0424 Series
Manufacturer: Delta Electronics
Beta
⌘K

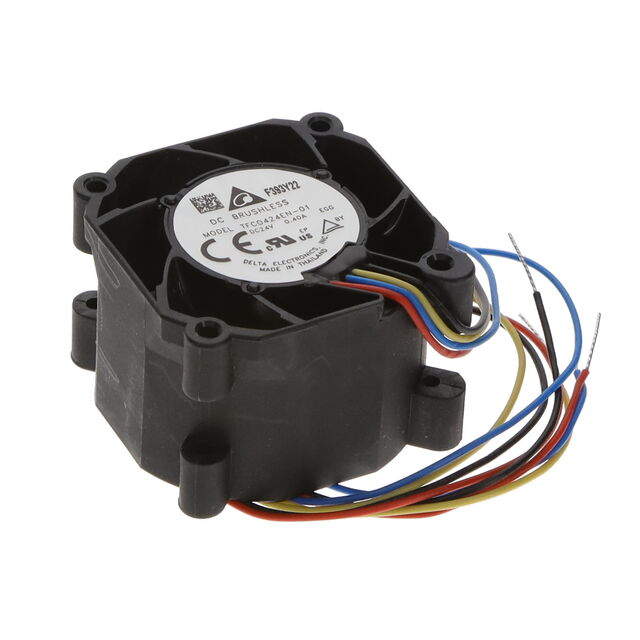

FAN AXIAL 40X28MM 24VDC WIRE
| Part | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Material - Frame | Current Rating (Amps) | Termination | Static Pressure | Static Pressure | RPM | Ingress Protection | Approval Agency | Noise | Fan Type | Bearing Type | Size / Dimension [x] | Size / Dimension [z] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Weight | Weight | Voltage - Rated | Width [x] | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | 26 VDC | 22 VDC | Plastic | Plastic | 0.25 A | 4 Wire Leads | 492.9 Pa | 1.979 in H2O | 18300 RPM | IP67 - Dust Tight Waterproof | CE cURus TUV | 55 dB(A) | Tubeaxial | Ball | 40 mm | 40 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 70 °C | -10 °C | 6 W | 52.16 g | 0.115 lb | 24 VDC | 28 mm | 21.1 CFM | 0.591 m³/min |
