ALPHA3 Series

Manufacturer: Siretta

Catalog

RF ANT 850MHZ/868MHZ BLADE MMCX

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Termination	Number of Bands	Gain	VSWR	Applications	Frequency Group	Antenna Type	RF Family/Standard	Frequency (Center/Band)

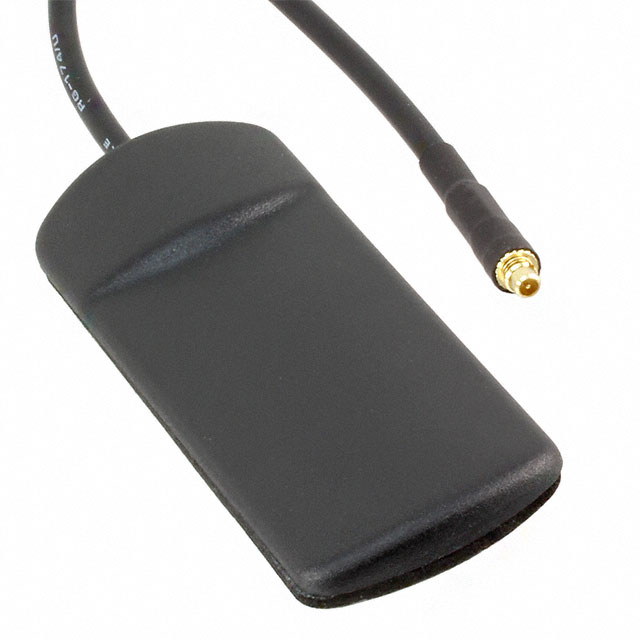

Siretta ALPHA3A/0.2M/MMCXM/S/S/26	2.5 mm	0.098 in	Adhesive	MMCX Male	8	3 dBi	2	Bluetooth GPRS GSM UMTS WLAN Zigbee™	Wide Band	Blade	802.15.4 Bluetooth Cellular WiFi	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 868 MHz 900 MHz 915 MHz

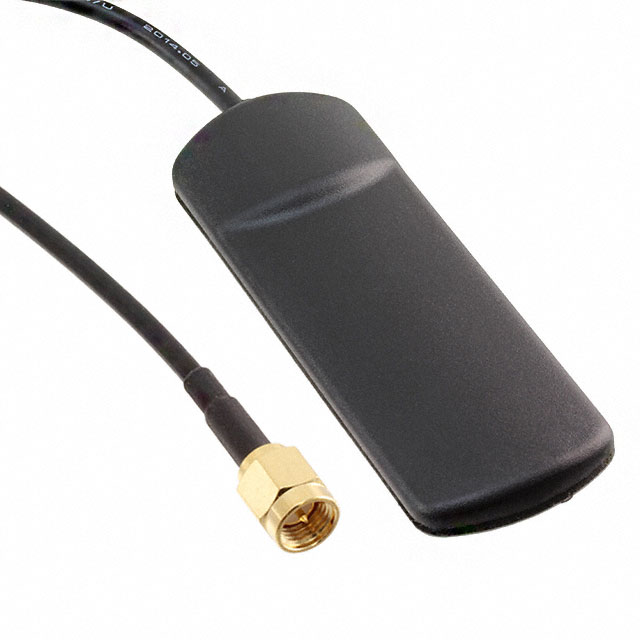

Siretta ALPHA3A/3M/SMAM/S/S/26	2.5 mm	0.098 in	Adhesive		8	3 dBi	2	Bluetooth GPRS GSM UMTS WLAN Zigbee™	Wide Band	Blade	802.15.4 Bluetooth Cellular WiFi	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 868 MHz 900 MHz 915 MHz
Siretta ALPHA3A/0.4M/FMEF/S/S/26	2.5 mm	0.098 in	Adhesive	FME Female	8	3 dBi	2	Bluetooth GPRS GSM UMTS WLAN Zigbee™	Wide Band	Blade	802.15.4 Bluetooth Cellular WiFi	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 868 MHz 900 MHz 915 MHz
