79225 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

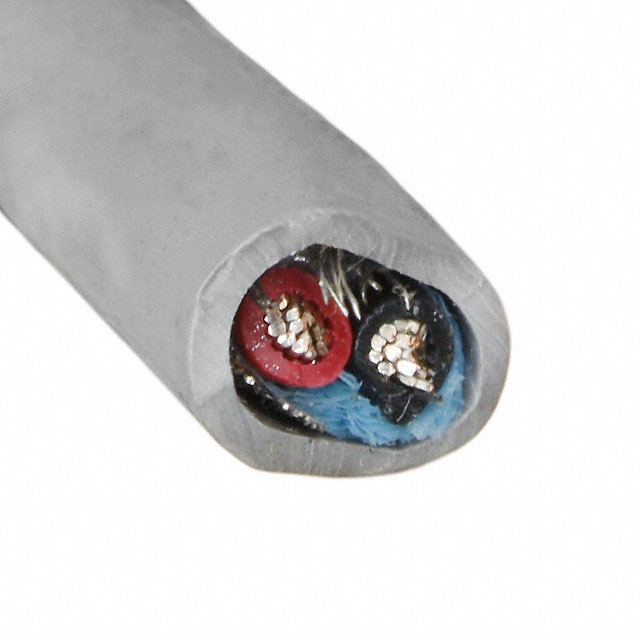

CABLE 2COND 14AWG SHLD
| Part | Shield Coverage | Shield Material | Features | Voltage | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Conductor Insulation | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Length | Length | Jacket Color | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility | 600 V | Multi-Conductor | 41 | 30 | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 0.035 in | 0.889 mm | 2 | 7.62 mm | 0.3 in | 14.5 AWG | -40 C | 105 ░C | Braid Foil | 304.8 m | 1000 ft | Slate | Polyphenylene Ether Modified (mPPE) |
