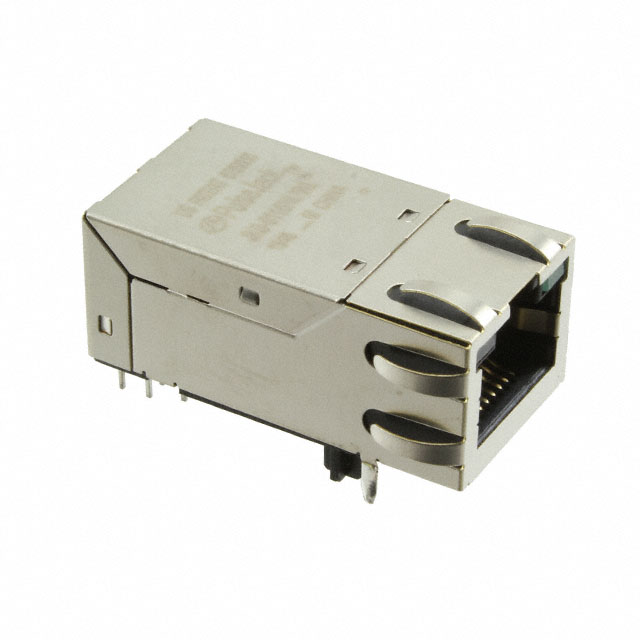

JK0 Series
Manufacturer: Pulse Electronics
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS 1X1 TAB UP W/LED'S ETHERNET (NON POE)
| Part | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Housing Material | LED Color | Contact Finish | Number of Rows | Shielding | Mounting Type | Number of Ports | Features | Connector Type | Applications | Termination | Tab Direction | Number of Cores per Jack | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 30 Áin | 0.76 Ám | Copper Alloy | Thermoplastic | Green Yellow | Gold | 1 | EMI Finger Shielded | Through Hole | 1 | Board Guide | RJ45 | 10/100/1000 Base-T AutoMDIX | Solder | Up | 8 | Phosphor Bronze | 70 °C | 0 °C | 13.87 mm | 0.546 in | 90 ° |
 Pulse Electronics | 30 Áin | 0.76 Ám | Brass | Thermoplastic | Green Yellow - Green | Gold | 1 | EMI Finger Shielded | Through Hole | 1 | Board Guide | RJ45 | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Solder | Up | 8 | Phosphor Bronze | 70 °C | 0 °C | 13.87 mm | 0.546 in | 90 ° |
