BYX Series

Catalog

RECTIFIERS DIODE, D5.4X7.5, 400V, 8A

Part	Current - Reverse Leakage @ Vr	Speed [Min]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Supplier Device Package	Mounting Type	Speed	Grade	Voltage - Forward (Vf) (Max) @ If [Max]	Qualification
Diotec Semiconductor BY880-400	5 µA	200 mA 500 ns	1.1 V	Axial	400 V	8 A	Standard	-50 °C	175 ░C	1500 ns	Axial	Through Hole

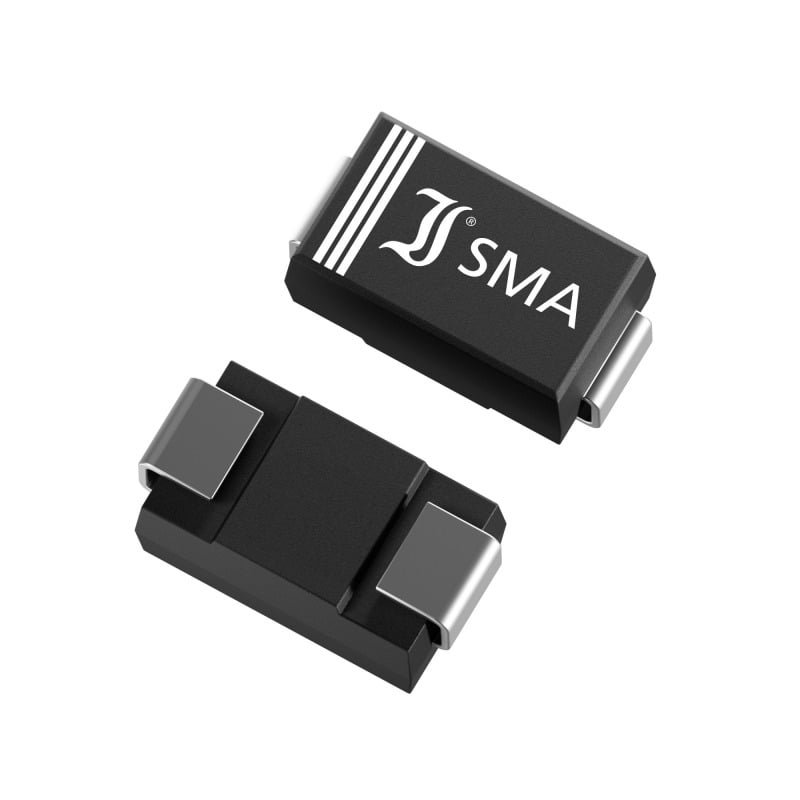

Diotec Semiconductor BYG20J	1 µA		1.4 V	DO-214AC SMA	600 V	1.5 A	Avalanche	-50 °C	150 °C	75 ns	DO-214AC (SMA)	Surface Mount	200 mA 500 ns

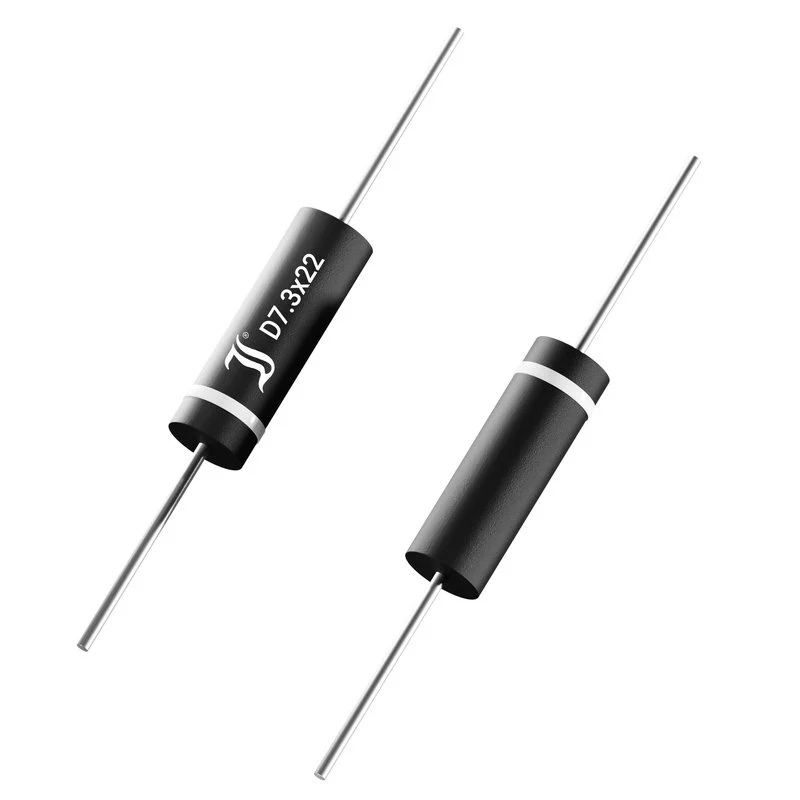

Diotec Semiconductor BY8	1 µA	200 mA 500 ns	8 V	Axial	8000 V	500 mA	Standard	-50 °C	150 °C	1500 ns	Axial	Through Hole
Diotec Semiconductor BY500-50	5 µA		1.3 V	Axial	50 V	5 A	Standard	-50 °C	175 ░C	200 ns	Axial	Through Hole	200 mA 500 ns
Diotec Semiconductor BY880-1000	5 µA	200 mA 500 ns	1.1 V	Axial	1000 V	8 A	Standard	-50 °C	175 ░C	1500 ns	Axial	Through Hole
Diotec Semiconductor BY550-200	5 ÁA	200 mA 500 ns	1 V 5 A	Axial	200 V	5 A	Standard	-50 °C	175 ░C	1500 ns	Axial	Through Hole
Diotec Semiconductor BYG10Y-AQ	5 µA	200 mA 500 ns		DO-214AC SMA		1.5 A	Avalanche	-50 °C	150 °C	1500 ns	DO-214AC (SMA)	Surface Mount		Automotive	1.15 V	AEC-Q101
