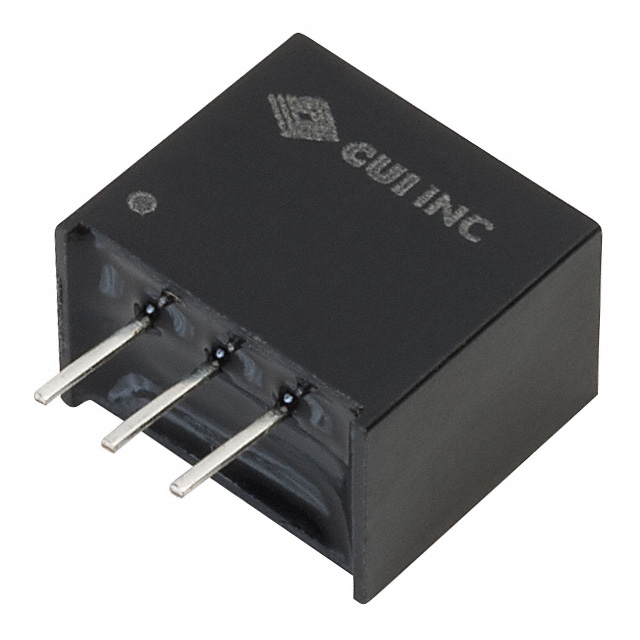

P7805 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 12V 6W
| Part | Number of Outputs | Voltage - Output 1 | Approval Agency | Applications | Package / Case | Mounting Type | Voltage - Input (Min) [Min] | Type | Power (Watts) | Efficiency | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Standard Number | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 | 12 V | EN | ITE (Commercial) | 3-SIP Module | Through Hole | 15 V | Linear Regulator Replacement | 6 W | 95 % | 32 V | 85 °C | -40 C | OTP SCP | 55024 55032 | 11.6 mm | 10.2 mm | 7.5 mm | 0.4 " | 0.46 in | 0.3 " | 500 mA |
CUI Inc. | 1 | 3.3 V | EN | ITE (Commercial) | 3-SIP Module | Through Hole | 4.75 V | Linear Regulator Replacement | 2 W | 91 % | 28 V | 85 °C | -40 C | OTP SCP | 55024 | 11.6 mm | 10.2 mm | 7.5 mm | 0.4 " | 0.46 in | 0.3 " | 500 mA |
CUI Inc. | 1 | 9 V | EN | ITE (Commercial) | 3-SIP Module | Through Hole | 11 V | Linear Regulator Replacement | 5 W | 95 % | 32 V | 85 °C | -40 C | OTP SCP | 55024 55032 | 11.6 mm | 10.2 mm | 7.5 mm | 0.4 " | 0.46 in | 0.3 " | 500 mA |
