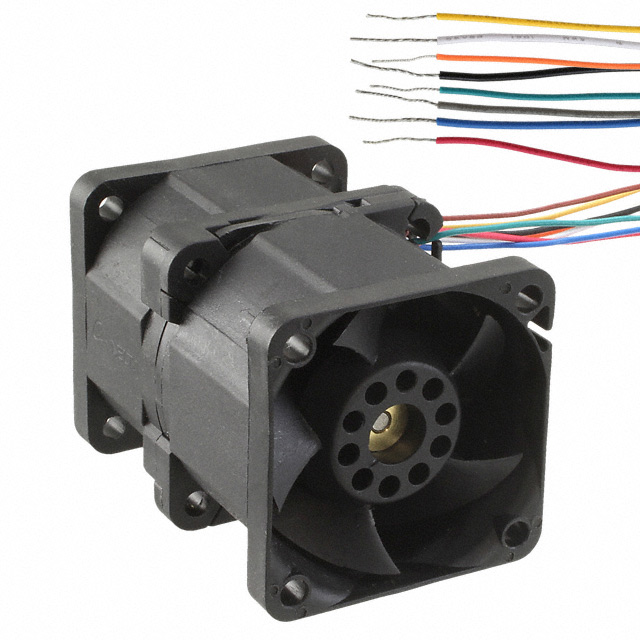

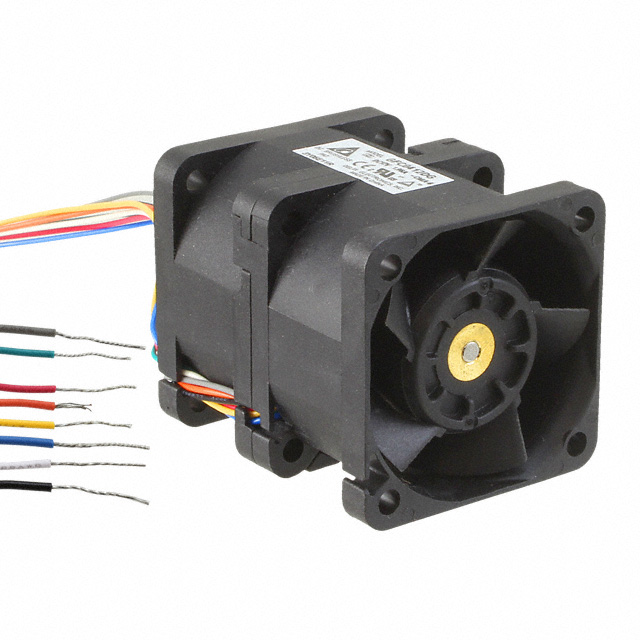

GFC0412 Series

Catalog

DC AXIAL FAN 12V, 10.8 TO 12.6V

Part	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Weight	Weight	RPM [custom]	RPM [custom]	Width [y]	Voltage - Rated	Bearing Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Approval Agency	Features	Size / Dimension [x]	Size / Dimension [z]	Termination	Air Flow	Air Flow	RPM	Noise
Delta Electronics GFC0412DS-DV17	Plastic	1.5 A	70000 Hrs	Plastic	10.8 VDC	12.6 VDC	3.33 in H2O	829.5 Pa	0.183 lb	83.01 g	17600 RPM	20500 RPM	56 mm	12 VDC	Ball	18 W	-10 °C	60 °C	Tubeaxial (Dual)	CE cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40 mm	40 mm	4	33.2 CFM	0.93 mł/min
Delta Electronics GFC0412DG-CMA4	Plastic	1.4 A	70000 Hrs	Plastic	10.8 VDC	12.6 VDC	2.382 in H2O	593.3 Pa	0.167 lb	75.75 g			48 mm	12 VDC	Ball	16.8 W	-10 °C	70 °C	Tubeaxial (Dual)	CE cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40 mm	40 mm	4	32.4 CFM	0.907 m³/min	14300 RPM 15150 RPM	64.4 dB(A)
Delta Electronics GFC0412DS-SM06B0G	Plastic	2.27 A	70000 Hrs	Plastic	10.8 VDC	12.6 VDC	4.11 in H2O	1023.8 Pa	0.183 lb	83.01 g	20500 RPM	23000 RPM	56 mm	12 VDC	Ball	27.24 W	-10 °C	60 °C	Tubeaxial (Dual)	cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40 mm	40 mm	4	37.6 CFM	1.05 m³/min
Delta Electronics GFC0412DS-DF00	Plastic	1.3 A	70000 Hrs	Plastic	10.8 VDC	12.6 VDC	2.631 in H2O	655.4 Pa	0.183 lb	83.01 g	15400 RPM	16000 RPM	56 mm	12 VDC	Ball	15.6 W	-10 °C	60 °C	Tubeaxial (Dual)	CE cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40 mm	40 mm	4	32.2 CFM	0.902 m³/min		64.5 dB(A)
Delta Electronics GFC0412DS-DU49	Plastic	1.85 A	70000 Hrs	Plastic	10.8 VDC	12.6 VDC	3.985 in H2O	992.6 Pa	0.183 lb	83.01 g	17400 RPM	23000 RPM	56 mm	12 VDC	Ball	22.2 W	-10 °C	60 °C	Tubeaxial (Dual)	CE cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40 mm	40 mm	4	35.9 CFM	1.01 m³/min		68.5 dB(A)

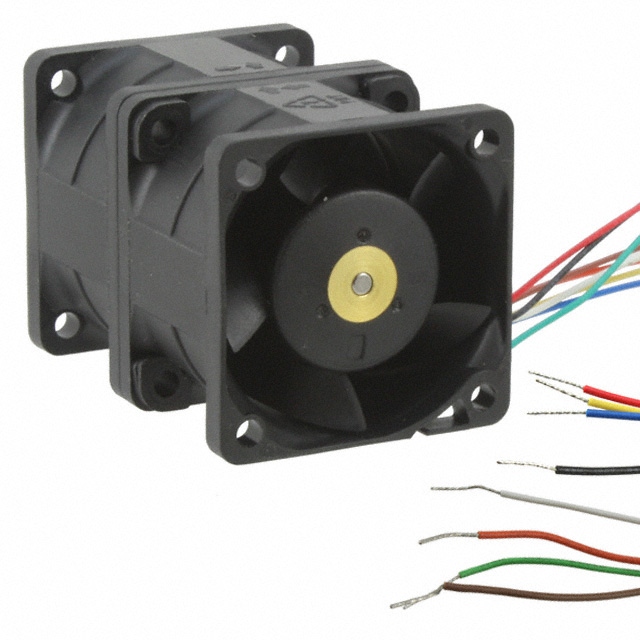

Delta Electronics GFC0412DS-TP01	Plastic	1 A	70000 Hrs	Plastic	4 VDC	13.2 VDC	1.726 in H2O	429.9 Pa	0.199 lb	90.26 g	11300 RPM	15300 RPM	56 mm	12 VDC	Ball	12 W	-10 °C	70 °C	Tubeaxial (Dual)	CE cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40 mm	40 mm	4	30.5 CFM	0.854 m³/min		61 dB(A)

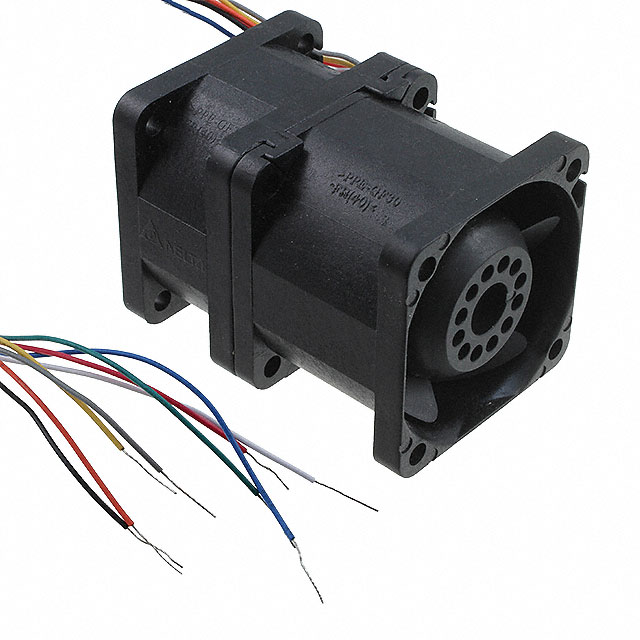

Delta Electronics GFC0412DS-CMA5	Plastic	0.85 A	30000 Hrs	Plastic	10.8 VDC	12.6 VDC	2.703 in H2O	673.3 Pa	0.176 lb	80 g	15700 RPM	17200 RPM	56 mm	12 VDC	Ball	10.2 W	-10 °C	70 °C	Tubeaxial (Dual)	CE cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40 mm	40 mm	4	25.3 CFM	0.708 m³/min		64 dB(A)
