284042 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

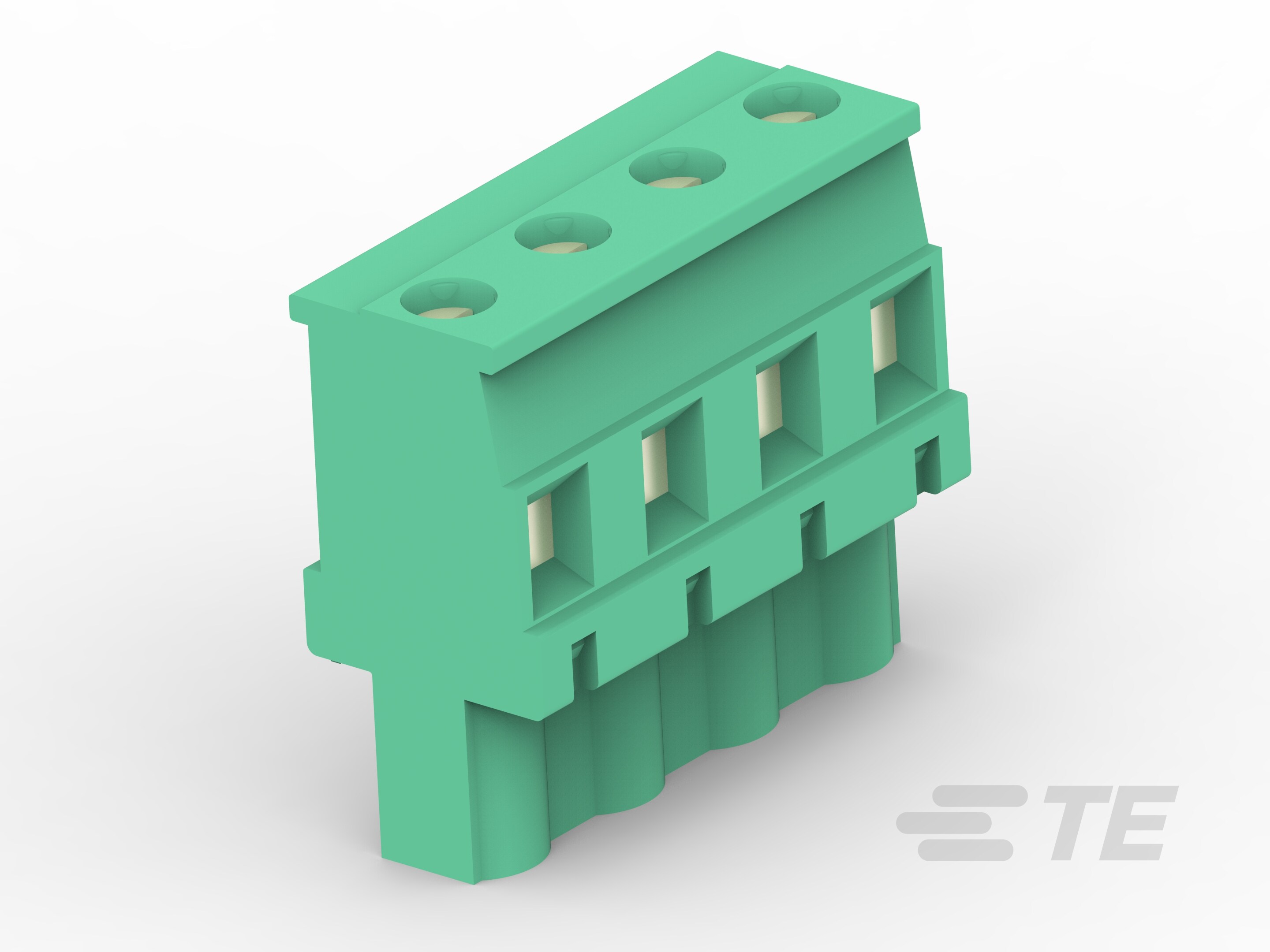

TERM BLOCK PLUG 5POS 7.50MM

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Pitch [x]	Pitch [x]	Type	Termination Style	Contact Mating Finish	Material Flammability Rating	Contact Material	Screw Size	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Strip Length [Max]	Wire Strip Length [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Plug Wire Entry	Insulation Height	Insulation Height	Torque - Screw	Torque - Screw	Positions Per Level	Voltage - UL	Number of Levels	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity Raychem Cable Protection 284042-5	0.05 mm²	3 mm²	0.295 in	7.5 mm	Plug Female Sockets	Screw - Rising Cage Clamp	Tin	UL94 V-0	Phosphor Bronze	M3	-40 °C	110 °C	Green	7.5 mm	6 mm	30 AWG	12 AWG	Free Hanging (In-Line)	270 °	25 mm	0.984 in	0.79 Nm	7 Lb-In	5	300 V	1
TE Connectivity Raychem Cable Protection 1-284042-0			0.295 in	7.5 mm	Plug Female Sockets	Screw - Rising Cage Clamp	Tin	UL94 V-0	Phosphor Bronze	M3	-40 °C	110 °C	Green	7.5 mm	6 mm	30 AWG	12 AWG	Free Hanging (In-Line)	270 °	25 mm	0.984 in	0.79 Nm	7 Lb-In	10	300 V	1	10	3 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 284042-6	0.05 mm²	3 mm²	0.295 in	7.5 mm	Plug Female Sockets	Screw - Rising Cage Clamp	Tin	UL94 V-0	Phosphor Bronze	M3	-40 °C	110 °C	Green	7.5 mm	6 mm	30 AWG	12 AWG	Free Hanging (In-Line)	270 °	25 mm	0.984 in	0.79 Nm	7 Lb-In	6	300 V	1	6
TE Connectivity Raychem Cable Protection 284042-9	0.05 mm²	3 mm²	0.295 in	7.5 mm	Plug Female Sockets	Screw - Rising Cage Clamp	Tin	UL94 V-0	Phosphor Bronze	M3	-40 °C	110 °C	Green	7.5 mm	6 mm	30 AWG	12 AWG	Free Hanging (In-Line)	270 °	25 mm	0.984 in	0.79 Nm	7 Lb-In	9	300 V	1	9
TE Connectivity Raychem Cable Protection 284042-7	0.05 mm²	3 mm²	0.295 in	7.5 mm	Plug Female Sockets	Screw - Rising Cage Clamp	Tin	UL94 V-0	Phosphor Bronze	M3	-40 °C	110 °C	Green	7.5 mm	6 mm	30 AWG	12 AWG	Free Hanging (In-Line)	270 °	25 mm	0.984 in	0.79 Nm	7 Lb-In	7	300 V	1	7
