9B1TS48 Series

Catalog

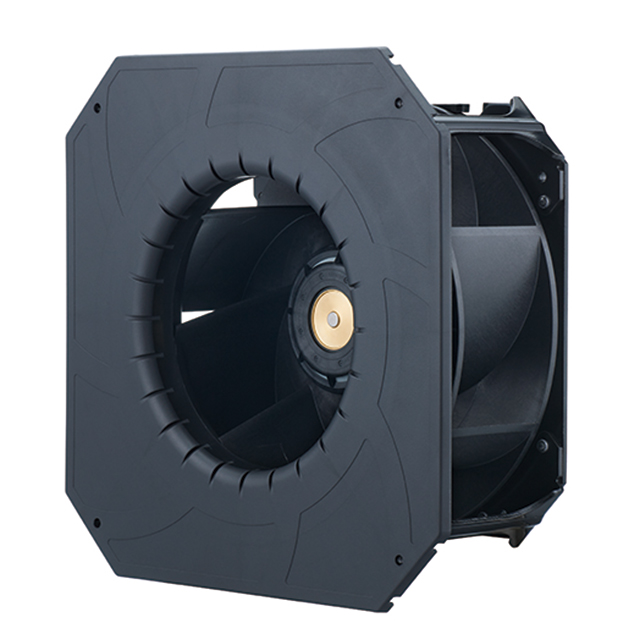

FAN BLOWER CF 270X119.0MM 48VDC

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Approval Agency	RPM	Air Flow	Air Flow	Termination	Noise	Voltage - Rated	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Weight [custom]	Weight [custom]	Width [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Fan Type	Power (Watts)	Static Pressure	Static Pressure	Features
Sanyo Denki America Inc. 9B1TS48P0G001	Plastic	3.65 A	Aluminum	72 VDC	36 VDC	40000 Hrs	CSA TUV UL	3550 RPM	27.78 m³/min	992 CFM	4 Wire Leads	74.5 dB(A)	48 VDC	270 mm	270 mm	Square	1.9 kg	4.2 lbs	119 mm	60 °C	60 °C	-4 °F	-20 ░C	Ball	Blower Centrifugal	175.2 W	861.8 Pa	3.46 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9B1TS48P0H001	Plastic	2.08 A	Aluminum	72 VDC	36 VDC	40000 Hrs	CSA TUV UL	2900 RPM	22.46 m³/min	802 CFM	4 Wire Leads	70.5 dB(A)	48 VDC	270 mm	270 mm	Square	1.9 kg	4.2 lbs	119 mm		70 °C		-20 ░C	Ball	Blower Centrifugal	99.8 W	590 Pa	2.37 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)
