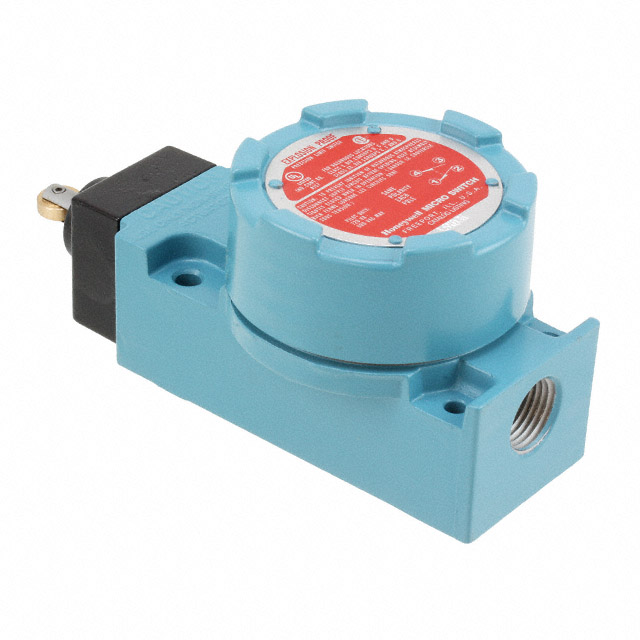

LSXD3 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 120V
| Part | Voltage Rating - DC | Differential Travel | Differential Travel | Termination Style | Pretravel | Pretravel | Overtravel | Overtravel | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features | Switch Function | Circuit | Voltage Rating - AC | Operating Force | Actuator Type | Mounting Type | Operating Position [custom] | Operating Position [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 115 V | 0.015 in | 0.38 mm | Screw Terminal | 1.78 mm | 0.07 " | 4.8 mm | 0.19 in | 93 °C | -12 °C | 10 A 800 mA | Explosion Proof | On-Mom | SPDT (DB/DM) | 120 V | 1814 gf | Roller Plunger | Chassis Mount | 68.6 mm | 2.7 in |
