770186 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

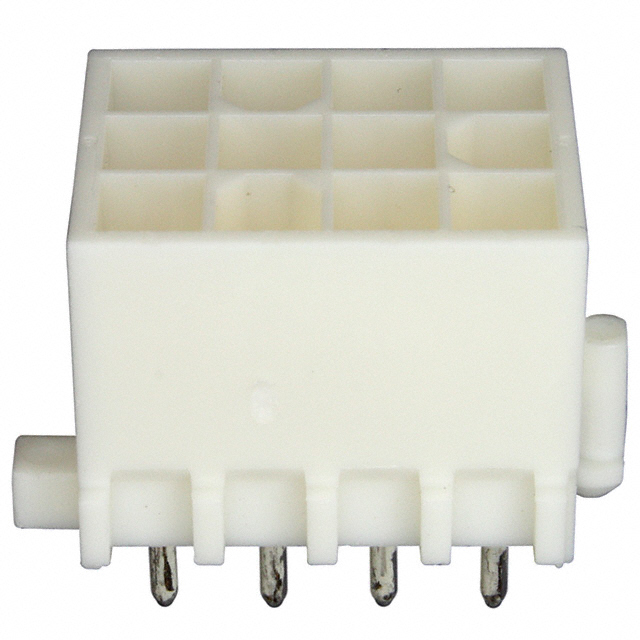

CONN HEADER VERT 12POS 4.14MM
| Part | Applications | Contact Finish Thickness - Post | Current Rating (Amps) | Insulation Color | Fastening Type | Mounting Type | Voltage Rating | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Termination | Insulation Height | Insulation Height | Style | Features | Insulation Material | Contact Shape | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Number of Positions Loaded | Connector Type | Contact Finish - Mating | Number of Positions | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Varies by Wire Gauge | White | Locking Ramp | Through Hole | 600 VAC | Shrouded - 4 Wall | 4.14 mm | 0.163 in | -20 ░C | 105 ░C | Tin-Lead | Solder | 13.5 mm | 0.531 in | Board to Cable/Wire | Board Lock | Nylon Polyamide (PA) | Circular | 0.163 in | 4.14 mm | 3 | All | Header | Gold | 12 | 4.45 mm | 0.175 in | 0.76 Ám | 30 Áin | UL94 V-0 | Male Pin | Brass |
