160701 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

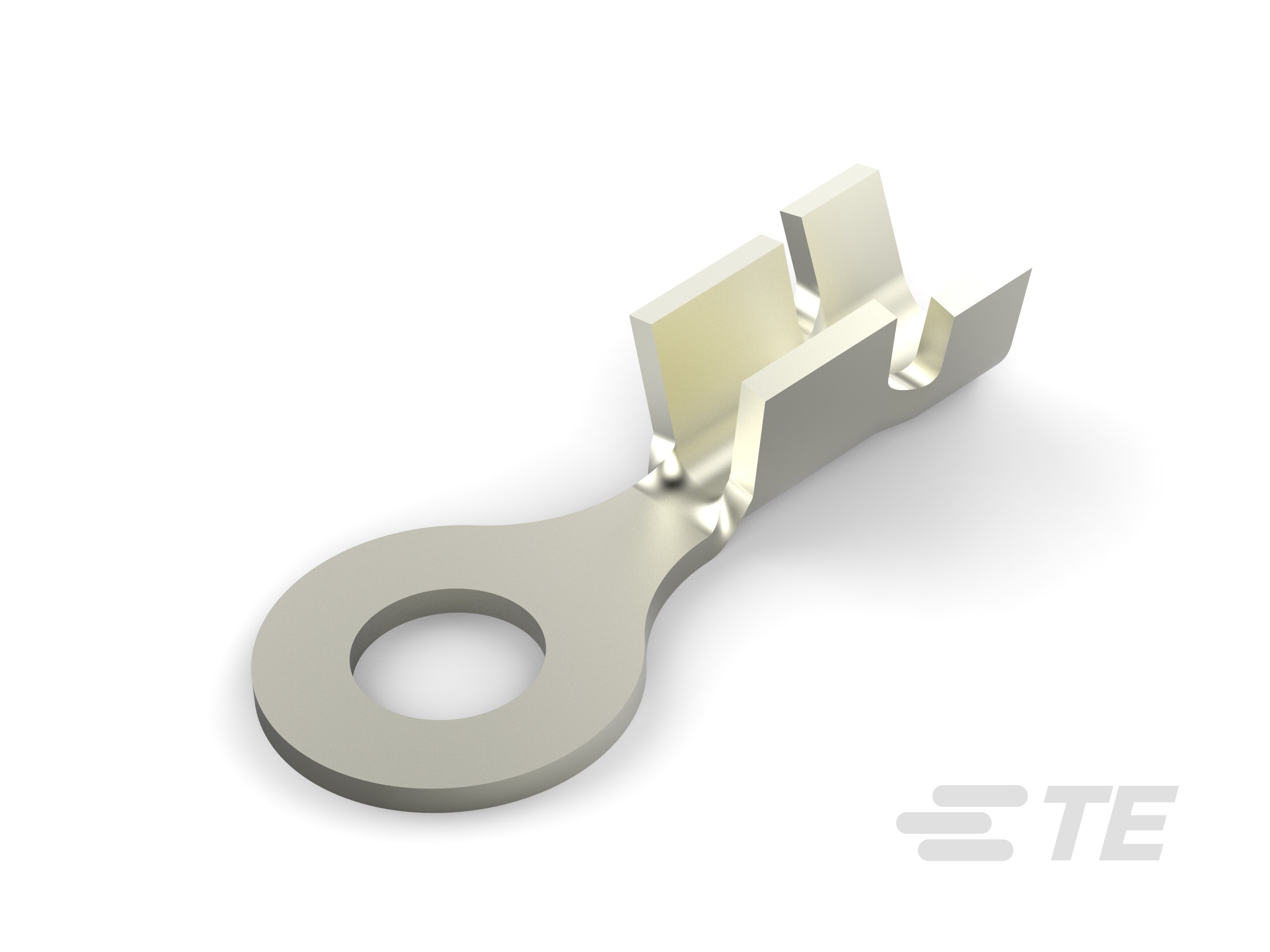

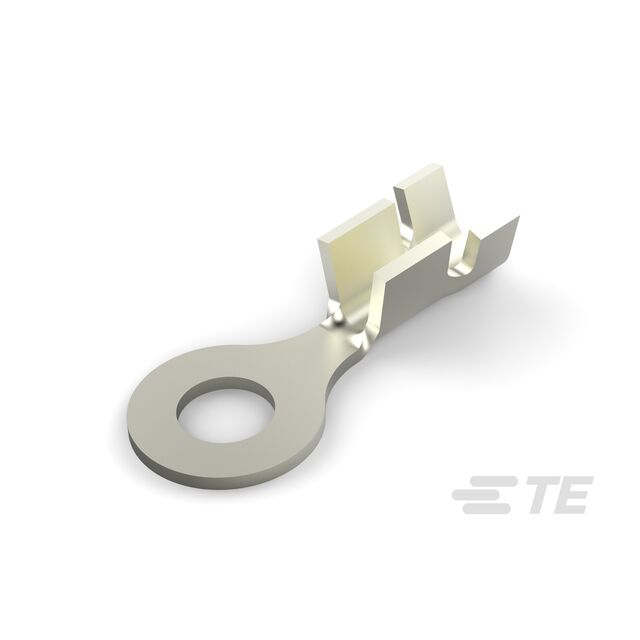

RING TONGUE 18-14 AWG .030 X .394 NPSTL
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Terminal Type | Thickness | Thickness | Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Termination | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.1 in | 3.56 mm | 2.54 mm | 0.14 in | 14 AWG | 18 AWG | Free Hanging (In-Line) | 20.32 mm | 0.8 " | Circular | 0.79 mm | 0.031 in | Non-Insulated | 8.69 mm | 0.342 in | Crimp | Steel | Nickel |
