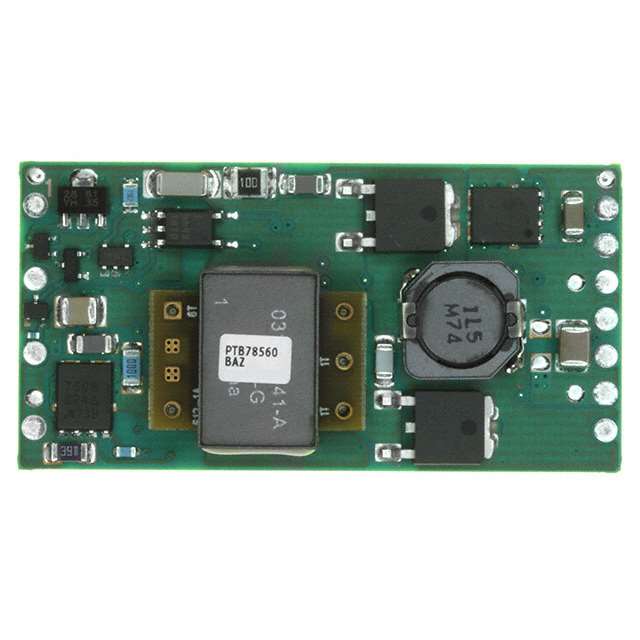

PTB78 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 1.8-3.6V 30W
| Part | Voltage - Isolation | Features | Type | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Input (Max) [Max] | Package / Case | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Power (Watts) | Mounting Type | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1.5 kV | OCP OTP Remote On/Off UVLO | Isolated Module | 80 % | 0.4 " | 26.5 mm | 1.04 in | 2.04 " | 10.3 mm | 51.8 mm | 85 °C | -40 °C | ITE (Commercial) | 60 V | 11-SMD Module | 1 | 18 V | 1.8 V | 3.6 V | 30 W | Surface Mount | 8 A |
