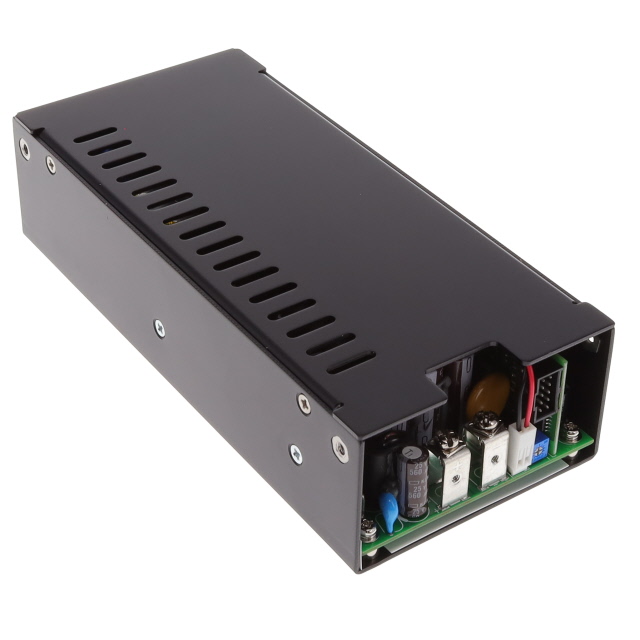

TU425S12 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 22(CONVECTION)A/32.2(FORCED AIR)A 425W 19-PIN
| Part | Minimum Load Required | Mounting Type | Features | Applications | Voltage - Isolation | Number of Outputs | Approval Agency | Voltage - Output 1 | Current - Output 1 | Type | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | Chassis Mount | DC Input Capable Load Sharing Remote Sense Standby Output Universal Input | ITE (Commercial) | 4000 V | 1 | CE cURus DEMKO | 12 V | 22 A | Open Frame | 88 % | 264 VAC | 90 VAC | 83.8 mm | 6.2 in | 1.62 " | 41.1 mm | 3.3 " | 157.4 mm | 385 W | 280 W | 70 °C | -10 °C | ||
 SL POWER / Advanced Energy | Chassis Mount | Adjustable Output PFC Remote Sense Standby Output Universal Input | ITE (Commercial) | 3000 V | 1 | CE cURus DEMKO | 12 V | 32.2 A | Enclosed | 90 % | 264 VAC 300 V | 90 VAC 120 VDC | 83.8 mm | 6.2 in | 1.62 " | 41.1 mm | 3.3 " | 157.5 mm | 386 W | 70 °C | -10 °C | 60950-1 |
