ADS1209 Series

16-Bit, 10MHz, 2-Ch, Delta-Sigma Modulator

Catalog

16-Bit, 10MHz, 2-Ch, Delta-Sigma Modulator

Part	Input Range	Utilized IC / Part	Number of Bits	Data Interface	Sampling Rate (Per Second)	Number of A/D Converters	Supplied Contents	Reference Type	Mounting Type	Package / Case	Package / Case	Input Type	Number of Inputs	Configuration	Voltage - Supply, Analog	Supplier Device Package	Ratio - S/H:ADC	Architecture	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage Supply Source	Resolution (Bits)	Number of Channels [custom]

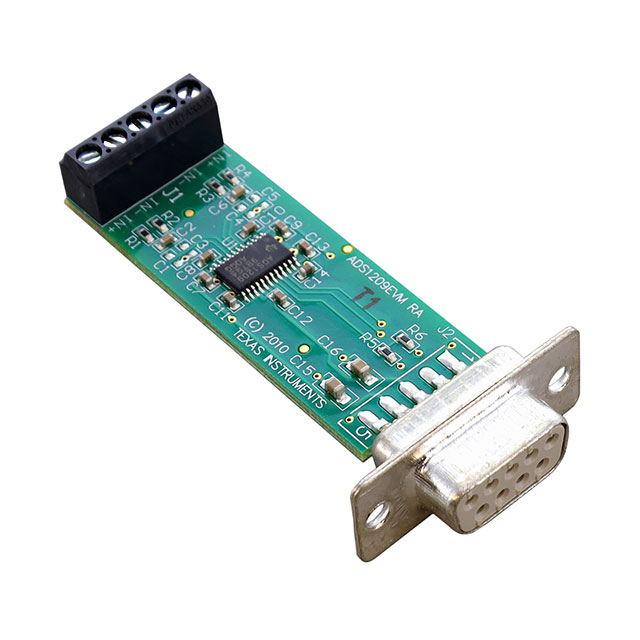

Texas Instruments ADS1209EVM	±VREF	ADS1209	16	Serial	40k	2	Board(s)
Texas Instruments ADS1209SPW			16	Serial	40k	1		External	Surface Mount	24-TSSOP	0.173 in 4.4 mm	Differential Single Ended	2	ADC	5 V	24-TSSOP	1:1	Sigma-Delta	5.5 V	2.7 V	-40 °C	105 ░C
Texas Instruments ADS1209SPWR				Serial	40k				Surface Mount	24-TSSOP	0.173 in 4.4 mm					24-TSSOP					-40 °C	105 ░C	Sigma-Delta Modulator	5 V	2.7 V	5.5 V	Analog and Digital	16 b	2

Catalog

16-Bit, 10MHz, 2-Ch, Delta-Sigma Modulator

Key Features

• 16-Bit Resolution13-Bit Linearity±2.3V Specified Input Voltage RangeInternal Reference Voltage: 2%Gain Error: 0.5%Two Independent Delta-Sigma ModulatorsTwo Input Reference BuffersOn-Chip OscillatorSelectable Internal or External ClockSpecified Temperature Range: –40°C to +105°CTSSOP-24 PackageAPPLICATIONSMotor ControlCurrent MeasurementResolverIndustrial Process ControlInstrumentationAll trademarks are the property of their respective owners.16-Bit Resolution13-Bit Linearity±2.3V Specified Input Voltage RangeInternal Reference Voltage: 2%Gain Error: 0.5%Two Independent Delta-Sigma ModulatorsTwo Input Reference BuffersOn-Chip OscillatorSelectable Internal or External ClockSpecified Temperature Range: –40°C to +105°CTSSOP-24 PackageAPPLICATIONSMotor ControlCurrent MeasurementResolverIndustrial Process ControlInstrumentationAll trademarks are the property of their respective owners.

Description

The ADS1209 is a two-channel, high-performance, delta-sigma () modulator with an 86dB dynamic range, operating from a single +5V supply. The differential inputs are ideal for direct connection to signal sources in an industrial environment. With the appropriate digital filter and modulator rate, the device can be used to achieve 16-bit analog-to-digital (A/D) conversion with no missing codes. Effective accuracy of 14 bits can be obtained with a digital filter bandwidth of 20kHz at a modulator rate of 10MHz. The ADS1209 is designed for use in high-resolution measurement applications including current measurements, industrial process control, and resolvers. It is available in a TSSOP-24 package and is specified for operation over the ambient temperature range of –40°C to +105°C. The ADS1209 is a two-channel, high-performance, delta-sigma () modulator with an 86dB dynamic range, operating from a single +5V supply. The differential inputs are ideal for direct connection to signal sources in an industrial environment. With the appropriate digital filter and modulator rate, the device can be used to achieve 16-bit analog-to-digital (A/D) conversion with no missing codes. Effective accuracy of 14 bits can be obtained with a digital filter bandwidth of 20kHz at a modulator rate of 10MHz. The ADS1209 is designed for use in high-resolution measurement applications including current measurements, industrial process control, and resolvers. It is available in a TSSOP-24 package and is specified for operation over the ambient temperature range of –40°C to +105°C.
