OSTOP24 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

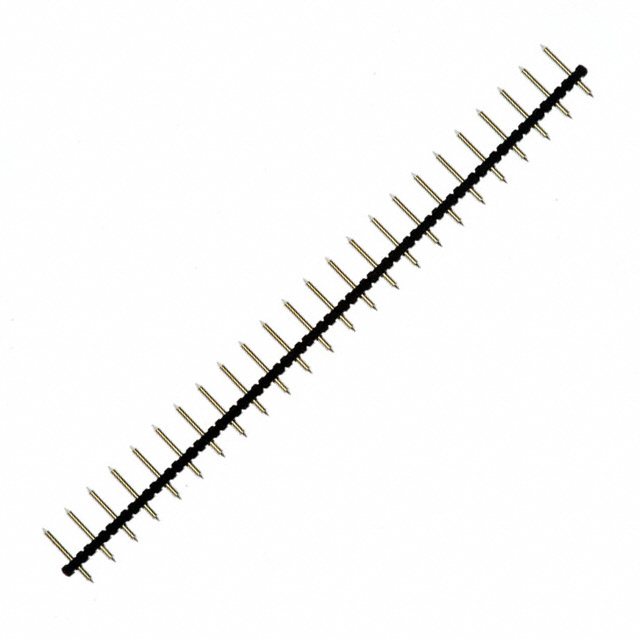

TERM BLOCK HDR 24POS VERT 3.5MM
| Part | Insulation Height [z] | Insulation Height [z] | Mounting Type | Contact Tail Length | Contact Tail Length | Housing Material | Number of Levels | Type | Header Orientation | Positions Per Level [custom] | Termination Style | Number of Positions | Contact Mating Finish | Pitch | Pitch | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3.5 mm | 0.138 " | Solder Through Hole | 0.138 in | 3.5 mm | Brass | 1 | Header Male Pins Unshrouded | Vertical | 24 | Solder | 24 | Tin | 3.5 mm | 0.138 " | 150 V |
 On Shore Technology Inc. | 3.5 mm | 0.138 " | Solder Through Hole | 0.138 in | 3.5 mm | Brass | 1 | Header Male Pins Unshrouded | Vertical | 24 | Solder | 24 | Tin | 5 mm | 0.197 in | 300 V |
On Shore Technology Inc. | 3.5 mm | 0.138 " | Solder Through Hole | 0.138 in | 3.5 mm | Brass | 1 | Header Male Pins Unshrouded | Vertical | 24 | Solder | 24 | Tin | 3.5 mm | 0.138 " | 300 V |
