2212 Series
Manufacturer: Oupiin
Beta
⌘K

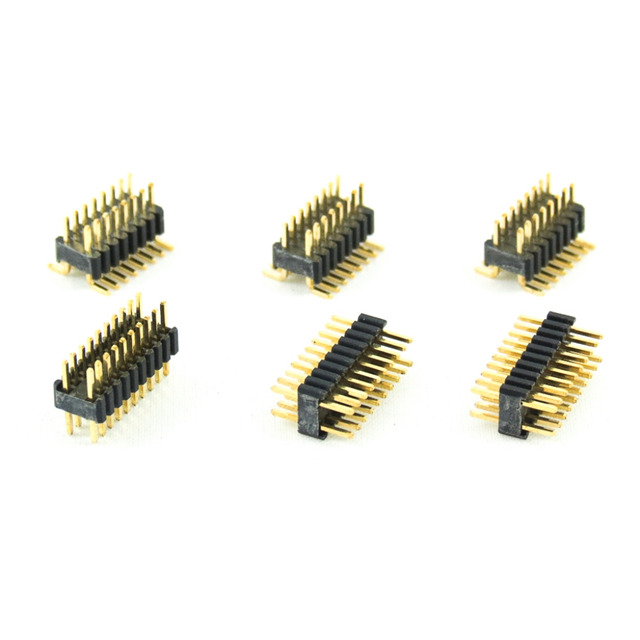

PIN HEADER, DOUBLE ROW, 10 PIN,
| Part | Contact Finish Thickness - Post | Overall Contact Length | Overall Contact Length | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Mating | Contact Type | Connector Type | Contact Shape | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Material | Shrouding | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Fastening Type | Contact Length - Mating | Contact Length - Mating | Insulation Color | Material Flammability Rating | Contact Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Termination | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Flash | 11.3 mm | 0.445 in | 0.1 in | 2.54 mm | Gold | Male Pin | Header Header Cuttable | Square | 1.27 mm | 0.05 in | 10 | Nylon 6T Polyamide (PA6T) | Unshrouded | 0.118 in | 3 mm | Flash | Push-Pull | 0.228 in | 5.8 mm | Black | UL94 V-0 | Brass | Through Hole | -40 C | 105 ░C | 2 | Solder | 0.098 " | 2.5 mm | All | Gold |
