QTLP630 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

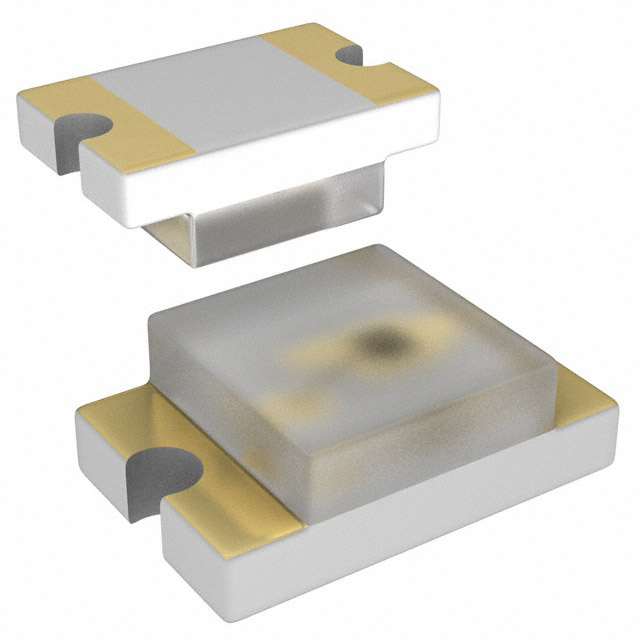

LED RED CLEAR 0805 SMD

Part	Lens Style	Millicandela Rating	Lens Transparency	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Height (Max) [Max] [z]	Mounting Type	Current - Test	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Size [x]	Lens Size [y]	Supplier Device Package	Color	Configuration	Package / Case	Lens Color
Everlight Electronics Co Ltd QTLP630C2TR	Rectangle with Flat Top	10 mcd	Clear	635 nm	2 mm	1.25 mm	140 °	1.2 mm	Surface Mount	20 mA	2 V	630 nm	1.4 mm	1.25 mm	0805	Red	Standard	0805	Colorless
Everlight Electronics Co Ltd QTLP630CYTR	Rectangle with Flat Top	40 mcd	Clear	590 nm	2 mm	1.25 mm	140 °	1.2 mm	Surface Mount	20 mA	2 V	589 nm	1.4 mm	1.25 mm	0805	Yellow	Standard	0805	Colorless
Everlight Electronics Co Ltd QTLP630CAGTR	Rectangle with Flat Top	15 mcd	Clear	575 nm	2 mm	1.25 mm	140 °	1.2 mm	Surface Mount	20 mA	2 V	573 nm	1.4 mm	1.25 mm	0805	Yellow-Green	Standard	0805	Colorless
Everlight Electronics Co Ltd QTLP630CRTR	Rectangle with Flat Top	40 mcd	Clear	630 nm	2 mm	1.25 mm	140 °	1.2 mm	Surface Mount	20 mA	2 V	624 nm	1.4 mm	1.25 mm	0805	Red	Standard	0805	Colorless
Everlight Electronics Co Ltd QTLP630C7TR	Rectangle with Flat Top	20 mcd	Clear	660 nm	2 mm	1.25 mm	140 °	1.2 mm	Surface Mount	20 mA	1.9 V	645 nm	1.4 mm	1.25 mm	0805	Red	Standard	0805	Colorless
Everlight Electronics Co Ltd QTLP630CIBTR	Rectangle with Flat Top	25 mcd	Clear	465 nm	2 mm	1.25 mm	140 °	1.2 mm	Surface Mount	20 mA	3.5 V	470 nm	1.4 mm	1.25 mm	0805	Blue	Standard	0805	Colorless
Everlight Electronics Co Ltd QTLP630CBTR	Rectangle with Flat Top	20 mcd	Clear	430 nm	2 mm	1.25 mm	140 °	1.2 mm	Surface Mount	20 mA	3.8 V	465 nm	1.4 mm	1.25 mm	0805	Blue	Standard	0805	Colorless
Everlight Electronics Co Ltd QTLP630C4TR	Rectangle with Flat Top	10 mcd	Clear	565 nm	2 mm	1.25 mm	140 °	1.2 mm	Surface Mount	20 mA	2.1 V	570 nm	1.4 mm	1.25 mm	0805	Green	Standard	0805	Colorless
