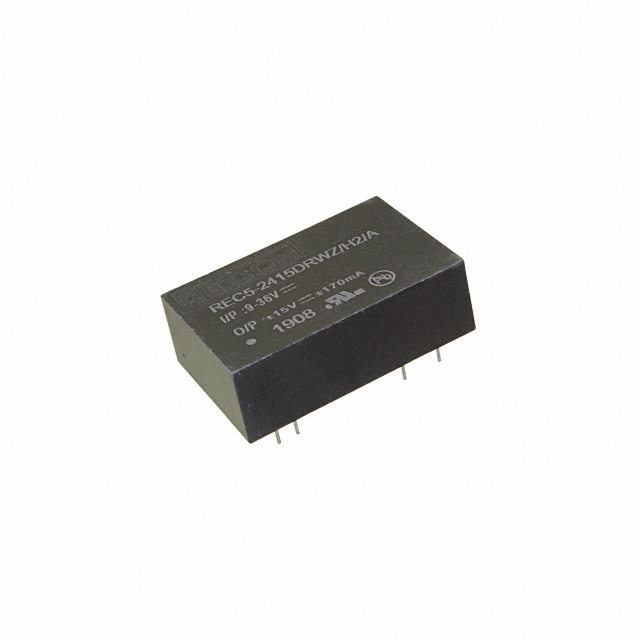

REC5-2415 Series
Manufacturer: Recom Power
Beta
⌘K
DC DC CONVERTER +/-15V 5W
| Part | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Features | Applications | Voltage - Input (Min) [Min] | Control Features | Mounting Type | Voltage - Output 2 | Power (Watts) | Voltage - Output 1 | Current - Output (Max) | Current - Output (Max) | Type | Package / Case | Number of Outputs | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 2000 V | 0.78 in | 0.44 in | 1.26 in | 11.2 mm | 32 mm | 19.9 mm | 85 % | -40 C | 75 ░C | 36 V | Remote On/Off SCP | ITE (Commercial) | 9 V | Active Low Enable | Surface Mount | -15 V | 5 W | 15 V | 170 mA | 170 mA | Isolated Module | 24-SMD Module 18 Leads | 2 | |
 Recom Power | 2000 V | 0.78 in | 0.44 in | 1.26 in | 11.2 mm | 32 mm | 19.9 mm | 85 % | -40 C | 75 ░C | 36 V | Remote On/Off SCP | ITE (Commercial) | 9 V | Active Low Enable | Surface Mount | 5 W | 15 V | Isolated Module | 24-SMD Module 18 Leads | 1 | 340 mA |
