QPD Series

Catalog

CIRCULAR METRIC CONNECTORS QPD CW3PE2,5 1X9-14 BK

Part	Primary Material	Ingress Protection	Features	Termination	Mounting Type	Orientation	Contact Finish - Mating	Connector Type	Insert Material [custom]	Insert Material [custom]	Fastening Type	Cable Opening [Max]	Cable Opening [Min]	Color	Number of Positions	Contact Material	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shielding	Shell Size - Insert	Connector Style	Convert To (Adapter End)	Convert From (Adapter End)	Housing Material	Number of Positions (Convert To)	Housing Color	Number of Positions (Convert From)

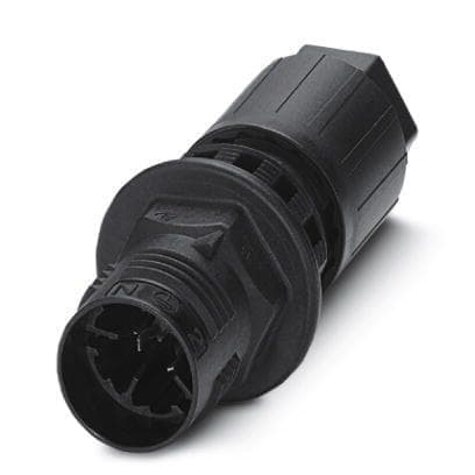

Phoenix Contact 1424039
Phoenix Contact 1423991	Plastic	IP66 IP68 IP69K	Backshell	IDC	Free Hanging (In-Line)	Keyed	Silver	Distributor	Nylon	Polyamide (PA)	Threaded	0.394 in 10 mm	0.236 in 6 mm	Black	4	Copper	UL94 V-0	1000 VDC	-40 C	100 °C	20 A	Unshielded

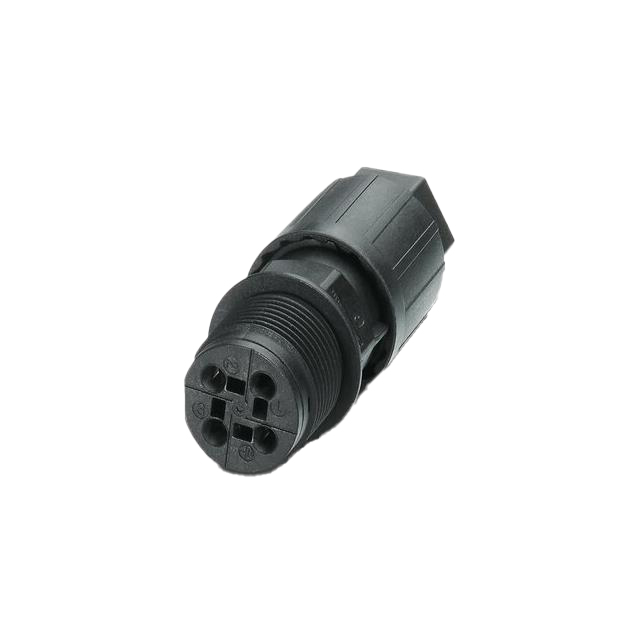

Phoenix Contact 1423977	Plastic	IP66 IP68 IP69K		IDC	Free Hanging (In-Line)	Keyed	Silver	Panel Feed-Through	Nylon	Polyamide (PA)	Threaded	0.394 in 10 mm	0.236 in 6 mm	Black	4	Copper	UL94 V-0	690 V	-40 C	100 °C	20 A	Unshielded	M25-4

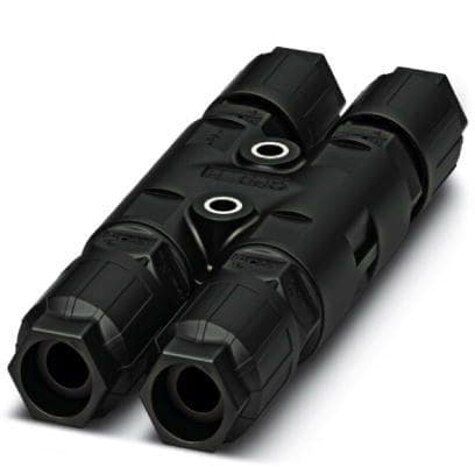

Phoenix Contact 1423972	Plastic	IP66 IP68 IP69K			Free Hanging (In-Line)						Threaded											Unshielded		Distributor H-Shaped	Female Sockets	Female Sockets	Polyamide (PA) Nylon	4	Black	4

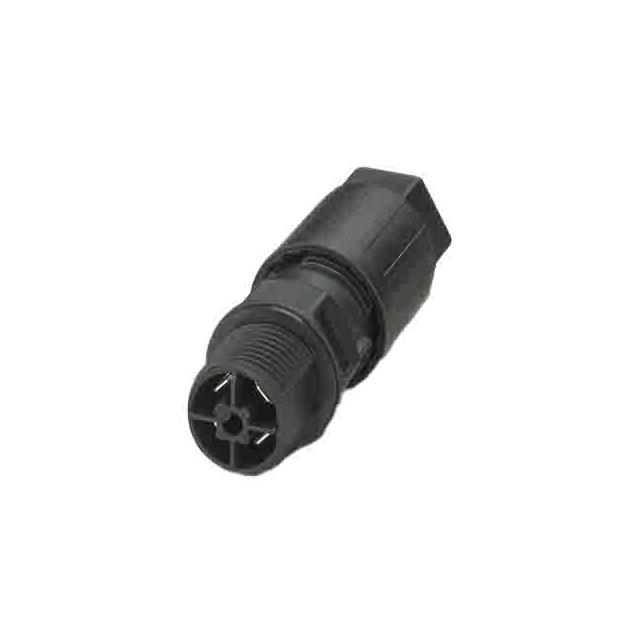

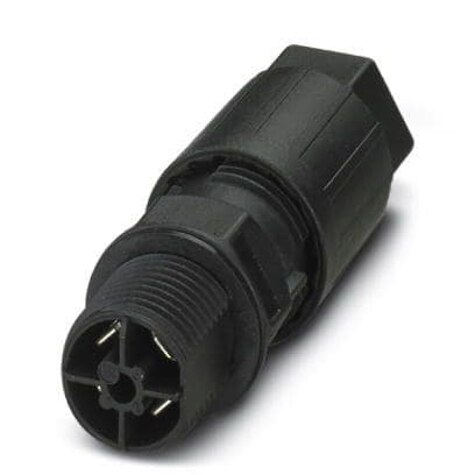

Phoenix Contact 1423981
