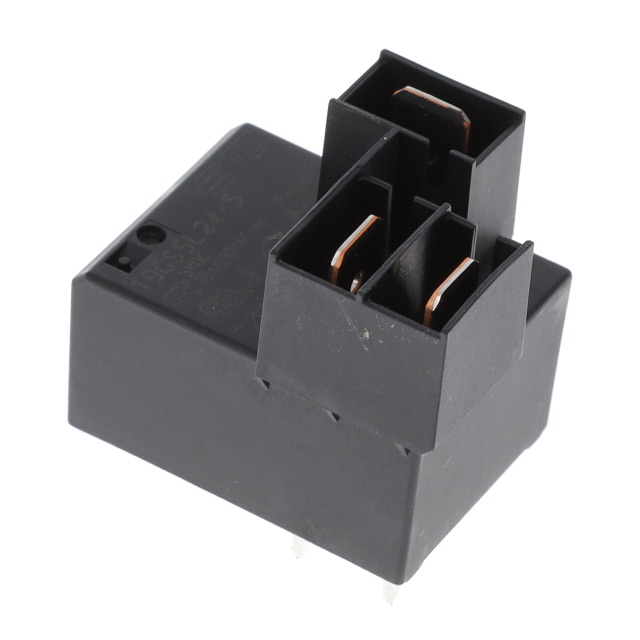

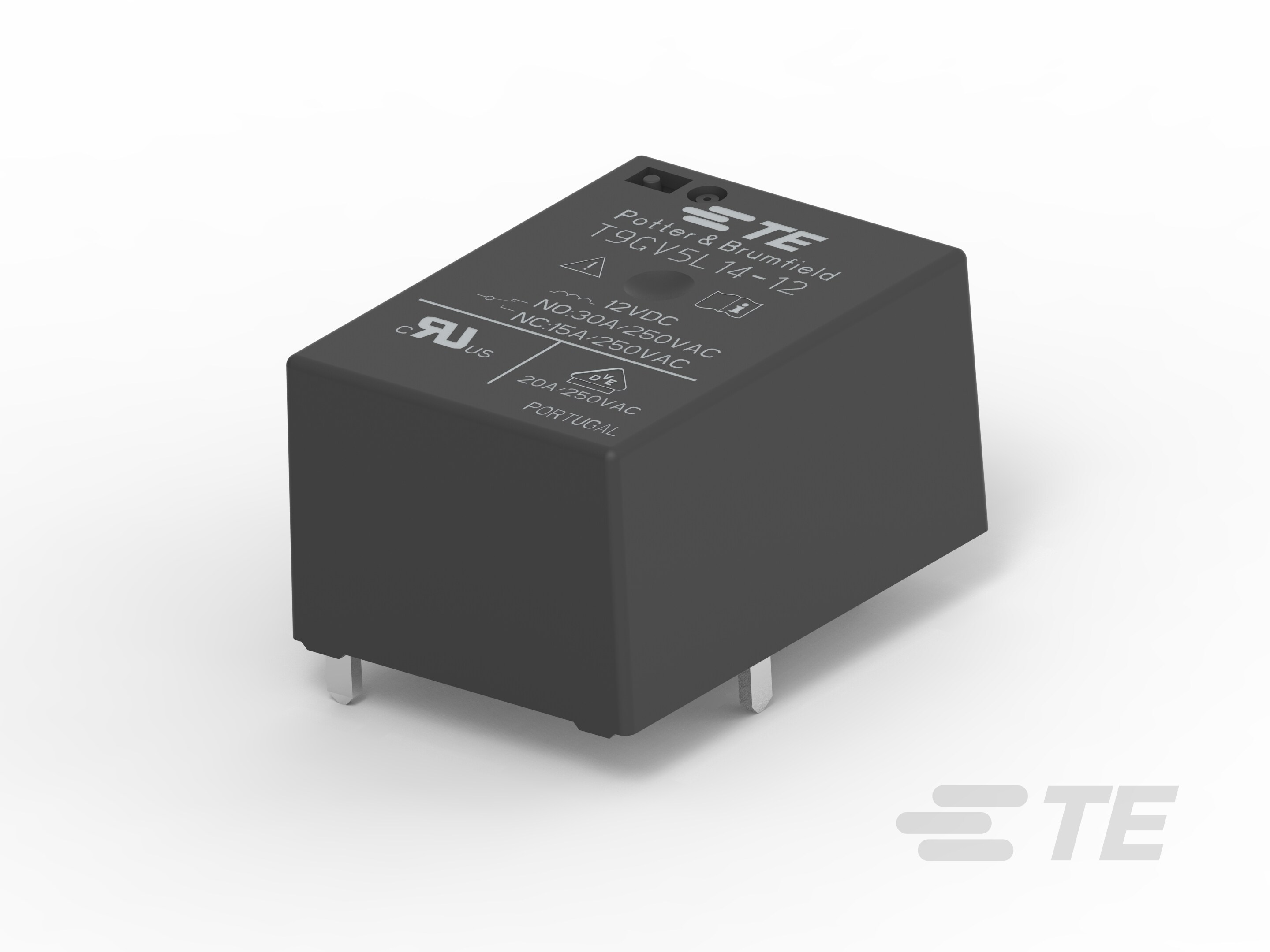

Potter & Brumfield T9G Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 110V
| Part | Mounting Type | Relay Type | Load - Max Switching [Max] | Contact Form | Coil Type | Coil Current | Coil Voltage | Contact Material | Must Operate Voltage | Operate Time | Must Release Voltage | Coil Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Release Time | Termination Style | Seal Rating | Contact Rating (Current) | Switching Voltage [Max] | Coil Resistance | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Through Hole | General Purpose | 9600 VA | SPDT (1 Form C) | Non Latching | 8.2 mA | 110 VDC | Silver Tin Oxide (AgSnO) | 82.5 VDC | 15 ms | 11 VDC | Class F | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin Quick Connect - 0.250" (6.3mm) | Sealed - Fully | 20 A | 480 VAC | ||
 TE Connectivity AMP Connectors | Through Hole | General Purpose | 9600 VA | SPDT (1 Form C) | Non Latching | 0.1 A | 9 VDC | Silver Tin Oxide (AgSnO) | 6.75 VDC | 15 ms | 0.9 VDC | Class F | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin | Sealed - Fully | 20 A | 480 VAC | 90 Ohms | |
 TE Connectivity AMP Connectors | Through Hole | General Purpose | 9600 VA | SPDT (1 Form C) | Non Latching | 180 mA | 5 VDC | Silver Tin Oxide (AgSnO) | 3.75 VDC | 15 ms | 0.5 VDC | Class B | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin | Sealed - Flux Protection | 20 A | 480 VAC | ||
 TE Connectivity AMP Connectors | Through Hole | General Purpose | 9600 VA | SPDT (1 Form C) | Non Latching | 180 mA | 5 VDC | Silver Tin Oxide (AgSnO) | 3.75 VDC | 15 ms | 0.5 VDC | Class F | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin Quick Connect - 0.250" (6.3mm) | Sealed - Fully | 20 A | 480 VAC | 28 Ohms | |
 TE Connectivity AMP Connectors | Through Hole | General Purpose | SPST-NO (1 Form A) | Non Latching | 8.2 mA | 110 VDC | Silver Tin Oxide (AgSnO) | 82.5 VDC | 15 ms | 11 VDC | Class F | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin | Sealed - Fully | 30 A | 480 VAC | 14400 VA | ||
TE Connectivity AMP Connectors | Through Hole | General Purpose | SPST-NO (1 Form A) | Non Latching | 0.06 A | 15 VDC | Silver Tin Oxide (AgSnO) | 11.25 VDC | 15 ms | 1.5 VDC | Class F | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin | Sealed - Fully | 30 A | 480 VAC | 14400 VA | ||
 TE Connectivity AMP Connectors | Through Hole | General Purpose | SPST-NO (1 Form A) | Non Latching | 0.075 A | 12 VDC | Silver Tin Oxide (AgSnO) | 9 VDC | 15 ms | 1.2 VDC | Class B | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin | Sealed - Flux Protection | 30 A | 480 VAC | 160 Ohms | 14400 VA | |
 TE Connectivity AMP Connectors | Through Hole | General Purpose | 9600 VA | SPST-NC (1 Form B) | Non Latching | 0.0375 A | 24 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | 15 ms | 2.4 VDC | Class F | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin Quick Connect - 0.250" (6.3mm) | Sealed - Fully | 20 A | 480 VAC | 640 Ohms | |
 TE Connectivity AMP Connectors | Through Hole | General Purpose | 9600 VA | SPDT (1 Form C) | Non Latching | 0.075 A | 12 VDC | Silver Tin Oxide (AgSnO) | 9 VDC | 15 ms | 1.2 VDC | Class F | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin Quick Connect - 0.250" (6.3mm) | Sealed - Fully | 20 A | 480 VAC | ||
TE Connectivity AMP Connectors | Through Hole | General Purpose | SPST-NO (1 Form A) | Non Latching | 0.0375 A | 24 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | 15 ms | 2.4 VDC | Class B | -40 C | 105 ░C | CQC cURus VDE | 22 ms | PC Pin | Sealed - Flux Protection | 30 A | 480 VAC | 640 Ohms | 14400 VA |
