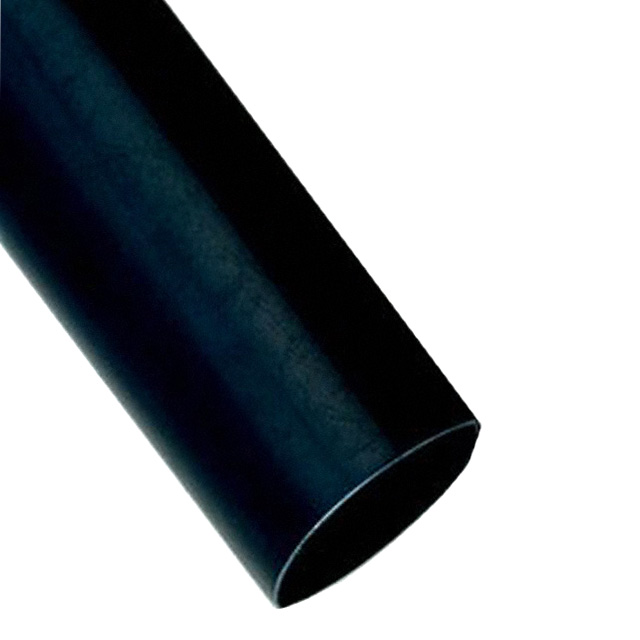

FP-301VW Series

Catalog

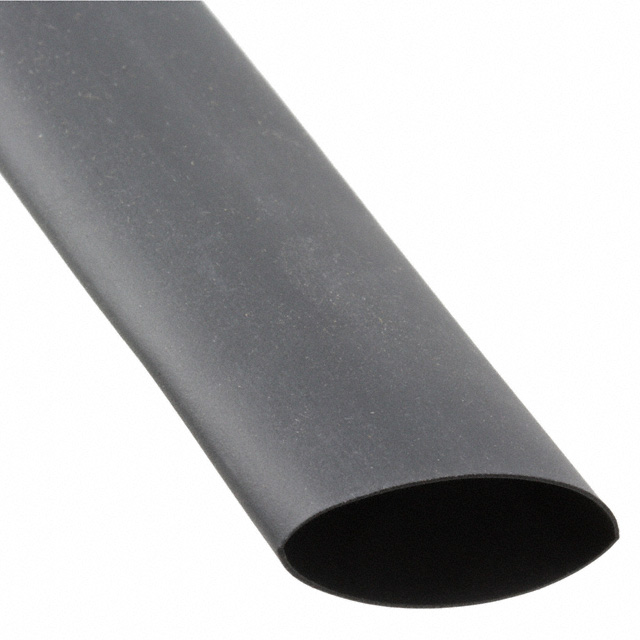

HEATSHRINK 1/16" X 0.5' BLACK

Part	Shelf Life Start	Length	Length	Length	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Material	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Length [x]	Length [x]	Length [x]
3M Electronic Specialty FP-301-VW-1/16-BLACK	Date of Manufacture	152.4 mm	0.5 '	6 "	120 Months	1.6 mm	0.063 in	1	2	Flame Retardant	0.43 mm	0.017 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	0.031 in	0.79 mm	Black
3M Electronic Specialty FP-301-VW-3/32-BLACK	Date of Manufacture	152.4 mm	0.5 '	6 "	120 Months	2.36 mm	0.093 "	1	2	Flame Retardant	0.51 mm	0.02 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	0.046 in	1.17 mm	Black
3M Electronic Specialty FP-301-VW-1/8-BLACK	Date of Manufacture	152.4 mm	0.5 '	6 "	120 Months	3.18 mm	0.125 in	1	2	Flame Retardant	0.51 mm	0.02 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	0.062 in	1.57 mm	Black
3M Electronic Specialty FP-301-VW-3/64-48-BLACK	Date of Manufacture				120 Months	1.17 mm	0.046 "	1	2	Flame Retardant	0.41 mm	0.016 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	0.023 in	0.58 mm	Black	4 ft	1.22 m
3M Electronic Specialty FP-301-VW-1/8-48-BLACK	Date of Manufacture				120 Months	3.18 mm	0.125 in	1	2	Flame Retardant	0.51 mm	0.02 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	0.062 in	1.57 mm	Black	4 ft	1.22 m
3M Electronic Specialty FP-301VW-3/4-BLACK-200'	Date of Manufacture	1.52 m 7.6 m 15.2 m 19.05 mm 25.4 mm 38.1 mm 50.8 mm 61 m 101.6 mm 152.4 mm	0.062 ft 0.083 ft 0.125 ft 0.167 ft 0.5 ' 25 ft 50 ft 60 in 200 ft	0.75 " 1 " 1.5 in 2 in 4 in 6 "	120 Months			1	2	Flame Retardant	0.76 mm	0.03 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	0.375 in	9.53 mm	Black	0.25 ft 0.333 ft 100 ft	30.5 m 76.2 mm	3 in
3M Electronic Specialty FP-301VW-3-BLACK-50'	Date of Manufacture	1.52 m 7.6 m 15.2 m	25 ft 50 ft 60 in		120 Months	76.2 mm	3 in	1	2	Flame Retardant	1.27 mm	0.05 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin Polyolefin (PO)	Tubing Flexible	1.5 in	38.1 mm	Black
3M Electronic Specialty FP-301VW-4-BLACK-50'	Date of Manufacture	15.2 m	50 ft		120 Months	101.6 mm	4 in	1	2	Flame Retardant	1.4 mm	0.055 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	2 in	50.8 mm	Black
3M Electronic Specialty FP-301-VW-3/4-48-BLACK	Date of Manufacture				120 Months			1	2	Flame Retardant	0.76 mm	0.03 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	0.375 in	9.53 mm	Black	4 ft	1.22 m
3M Electronic Specialty FP-301VW-1/8-BLACK-4'-BUL	Date of Manufacture				120 Months	3.18 mm	0.125 in	1	2	Flame Retardant	0.51 mm	0.02 in	-55 C	135 °C	10 C	27 °C	10 C	80 °F	100 °C	Polyolefin (PO)	Tubing Flexible	0.062 in	1.57 mm	Black	4 ft	1.22 m
